Поз.
Артикул
Описание

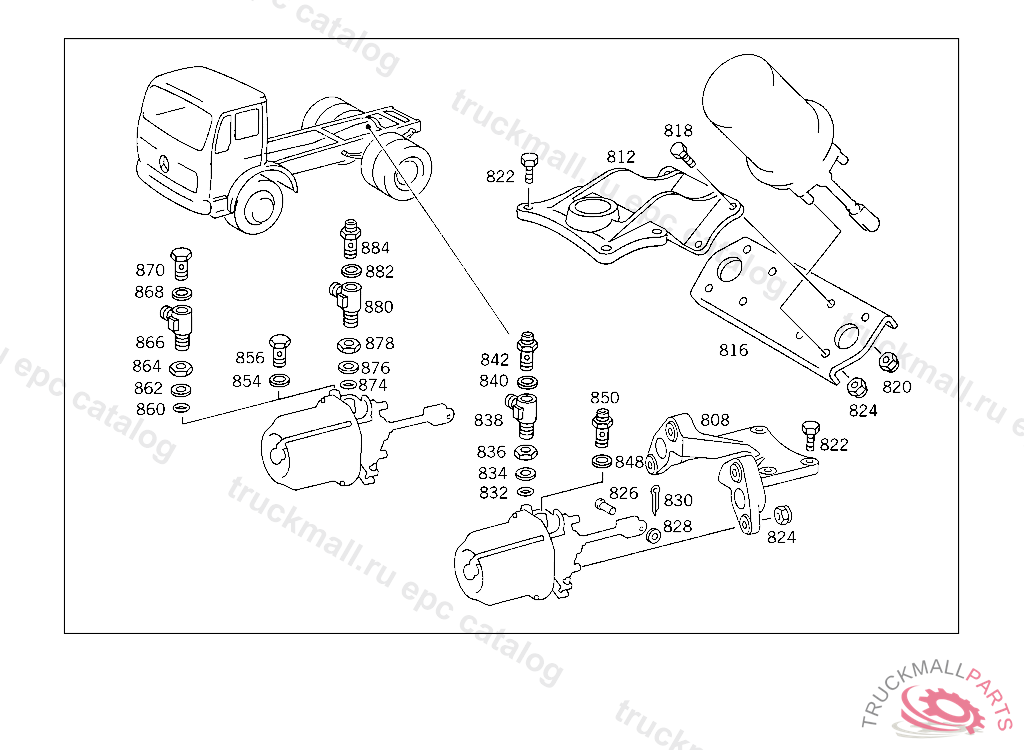

808
BEARING BRACKET WHEEL CYLINDER,5 197195
808
BEARING BRACKET ,5 197194, Replaced By: A3634230033
822
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
822
SCREW , Replaced By: N308676016013
824
NUT COMBINATION CYLINDER TO BEARING BRACKET
824
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
826
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
828
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
830
COTTER PIN STRAP TO SUPPORT
832
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
834
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
836
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
838
T-FITTING AIR RESERVOIR,CONNECTION: "31"
840
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
842
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
848
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
850
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
854
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
856
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
874
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
876
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
878
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
880
T-FITTING AIR RESERVOIR,CONNECTION: "31"
882
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
884
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
NUT , Replaced By: A0009903250
999
SLEEVE LEAK LINE
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
SEAL RING , Replaced By: N007603012121
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT SUPPORT TO SIDE MEMBER
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
SCREW PIPE CLAMP
999
FITTING ,4 667210
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
CLAMPING SLEEVEKNORR
999
WASHER STRAP TO SUPPORT
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW METAL SPRING BELLOWS TO BRACKET,4 957941
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017008021
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
NUT , Replaced By: N308675016001
999
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
FITTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
BRACKET COMPRESSED AIR LINE, NOT USED
999
BRACKET TRUCK-TRACTOR BRAKE VALVE
999
BRACKET REGULATING VALVE, NOT USED
999
COVERING REGULATING VALVE
999
PROTECTIVE PLATE , ELIMINATED - NO LONGER REQUIRED
999
GROMMET BATTERY CABLE THRU SIDE MEMBER
999
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 27 95, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306360
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE (CHECK VALVE) WABCO
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT , Replaced By: A0004301109
999
VALVE , Replaced By: A0024312706
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
VALVE , Replaced By: A0034295344
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
LOOM TIE LINE MOUNTING 280 MM
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
VALVE , Replaced By: A0024314006
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
SEAL RING86X2 MM,GRAU
999
SEAL RING28X2 MM,GRAU
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PLUG
999
BANJO UNION REPAIR SIZE
999
NUT POWER CYLINDER TO BRACKET
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
VALVEWABCO
999
DIAPHRAGMBOSCH,K 262627
999
VALVE SEATGRAU
999
GASKET34X2X6 MM,GRAU
999
REPAIR KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 11 05,BOSCH,5 298752
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0014308460, +001A0004303506
999
SEAL CONETO 003 429 12 44,SCHAEFER
999
THRUST WASHERTO 003 429 12 44,SCHAEFER
999
THRUST RING SUCTION LINE TO OIL PUMP
999
GUIDE , Replaced By: N071752014000
999
FITTINGWABCO
