Поз.
Артикул
Описание

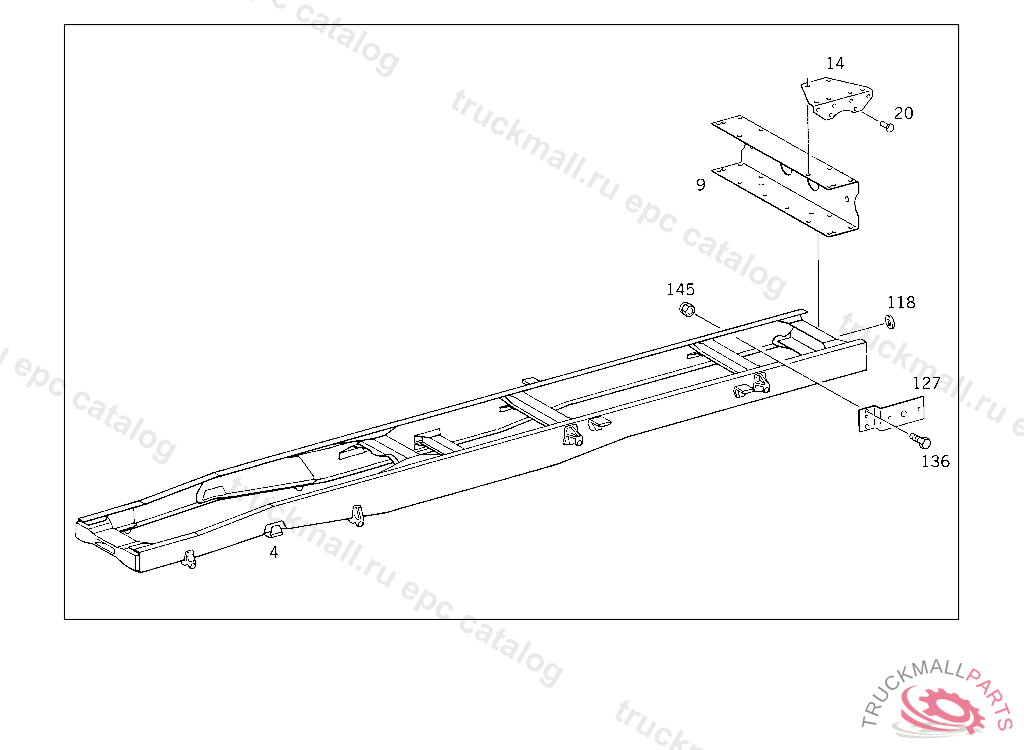

4
FRAME
4
FRAME ,5 158232
4
FRAME
4
FRAME
4
FRAME ,5 158233
4
FRAME
4
FRAME
4
FRAME ,5 158233
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME
4
FRAME ,5 158232
4
FRAME
4
FRAME
4
FRAME
4
FRAME
9
CROSS MEMBER
14
GUSSET PLATE (REAR CROSS MEMBER)
20
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
20
RIVET BRACKET TO FRAME
20
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
20
RIVET REAR CROSS MEMBER 12X42 MM
118
WASHER , Replaced By: N009021010209
118
WASHER BRACKET TO COVERING
127
BRACKET JUNCTION BOX
127
BRACKET , Replaced By: A3835461143
136
SCREW END PIECE TO EXHAUST PIPE M 10X25
145
NUT STRAP TO BRACKET
145
NUT , Replaced By: N910113010000
999
NUT BRACKET TO BRACKET
999
EXPANSION PLUG BRACKET
999
SCREW BRACKET TO BRACKET
999
STIFFENING HELPER SPRING BRACKET TO SIDE MEMBER
999
SPRING LEAF ,4 695193 UP TO IDENT NO. 4 714333,FROM IDENT NO. SEE SA 25066/11, Replaced By: A3853201793, +001A3853242312
999
SPRING LEAF ,4 695193 UP TO IDENT NO. 4 714333,FROM IDENT NO. SEE SA 25066/11, Replaced By: A3853242312, +001A3853201793
999
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
999
FRAME
999
FRAME
999
BRACKET LEFT TAIL LAMP,5 537712K 103912
999
BRACKET RIGHT TAIL LAMP,5 537712K 103912
999
COVER REINFORCEMENT
999
BRACKET TAIL LAMP
999
CROSS MEMBER
999
BRACKET , Replaced By: A3935220140
999
BRACKET , Replaced By: A3935220140
999
BRACKET TAIL LAMP
999
BEARING BRACKET TAIL LAMP, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
CLAMPING PIECE BRACKET TO BEARING BRACKET,K 274033
999
BEARING BRACKET LEFT TAIL LAMP,K 257461
999
BEARING BRACKET RIGHT TAIL LAMP,K 257461
