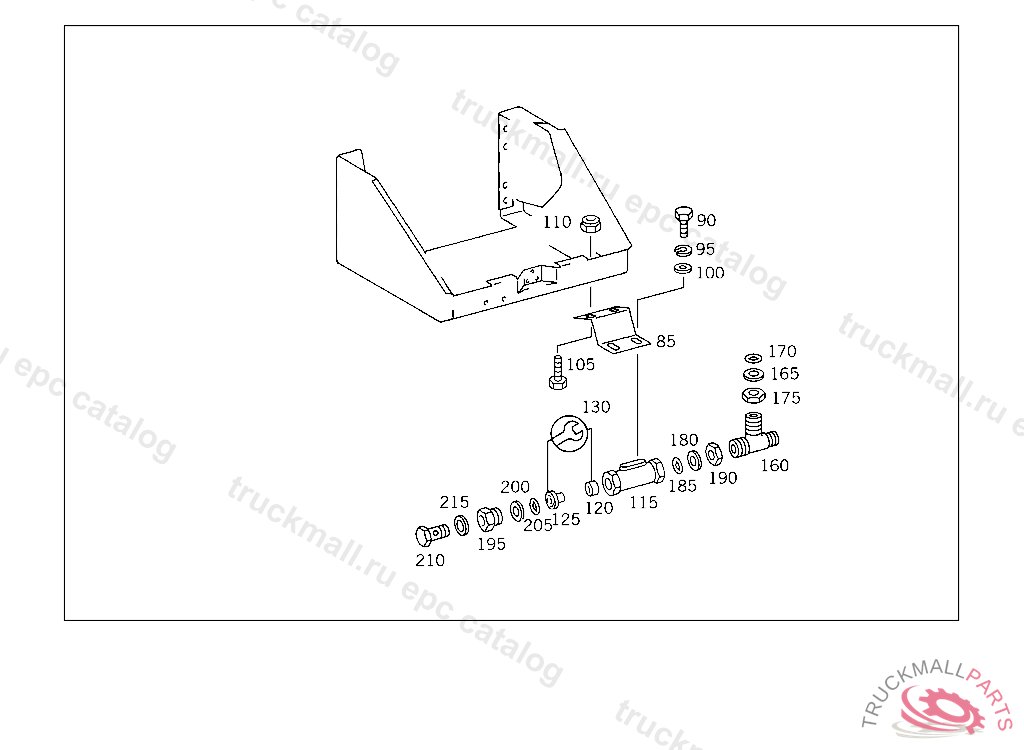

Поз.
Артикул
Описание
85
BRACKET AIR CLEANER
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
95
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
100
WASHER RADIATOR TO RUBBER MOUNTING
100
WASHER , Replaced By: N000125010532
105
SCREW CLAMP TO BRACKET AND TO PIPE
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
NUT , Replaced By: N913004008001
115
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
120
VALVE SEAT RINGWABCO,5 433388
125
BUSHINGWABCO,5 433388
130
REPAIR KITWABCO
160
T-FITTING RIGHT SPRING LOAD ACCUMULATOR BRAKE CYLINDER,CONNECTION "1"
165
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
175
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
180
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
180
THRUST RING CHECK VALVE TO AIR RESERVOIR
185
O-RING CHECK VALVE TO AIR RESERVOIR
190
NUT CHECK VALVE TO AIR RESERVOIR
195
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
200
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
200
THRUST RING CHECK VALVE TO AIR RESERVOIR
205
O-RING CHECK VALVE TO AIR RESERVOIR
210
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
210
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
215
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
215
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
VALVE (CHECK VALVE)
999
FITTING , Replaced By: A0029905971
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
BRACKET PRESSURE REGULATOR,5 393906
