Поз.
Артикул
Описание

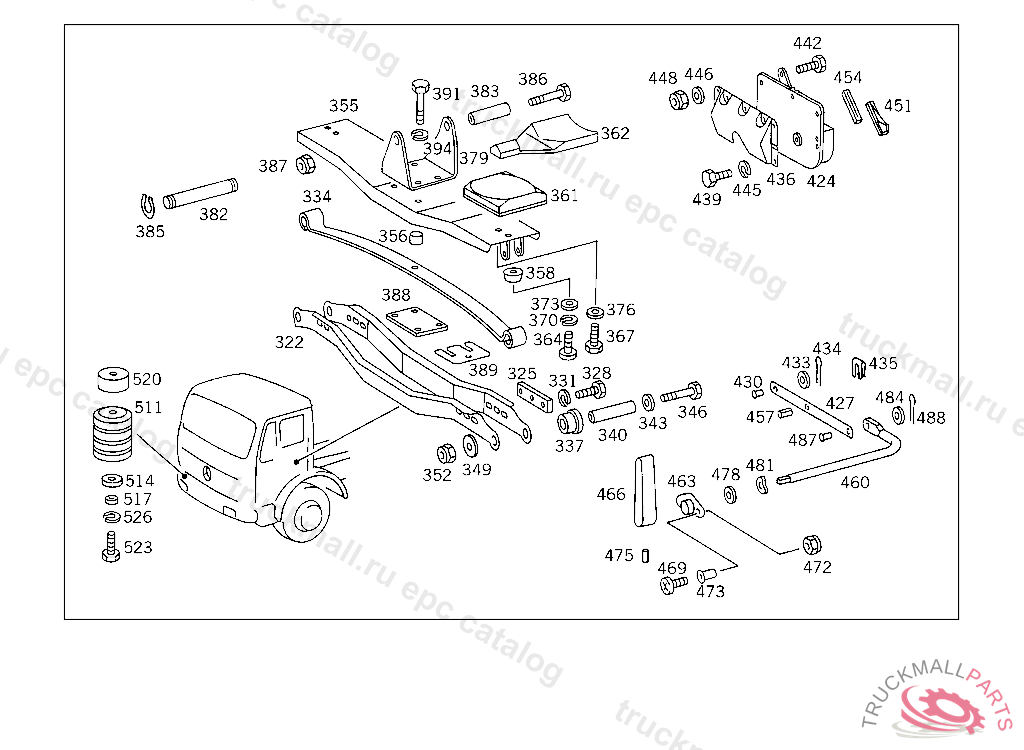

322
STRUT , Replaced By: A6558910224, +002A6558910118
322
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
325
SHIM STRUT TO CONSOLE
328
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
328
SCREW , Replaced By: N308676012012
331
LOCK WASHER FITTING TO BRACKET
334
SPRING (LEAF SPRING),CAB SUSPENSION
334
SPRING (LEAF SPRING),CAB SUSPENSION
337
BUSHING LEAF SPRING
340
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
343
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
346
SCREW SPRING TO STRUT, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 215244
346
SCREW LEAF SPRING TO STRUT
349
WASHER LEAF SPRING TO STRUT
352
NUT SUPPORT TO SIDE MEMBER
355
RAIL CAB SUSPENSION,REAR
355
RAIL , Replaced By: A6558900622
355
RAIL CAB SUSPENSION,REAR
355
RAIL , Replaced By: A6558900322
355
RAIL , Replaced By: A6558900422
355
RAIL CAB SUSPENSION,REAR
355
RAIL , Replaced By: A6558900122
355
RAIL CAB SUSPENSION,REAR
355
RAIL CAB SUSPENSION,REAR
355
RAIL , Replaced By: A3878901222
356
CYLINDRICAL PIN RIGHT FRONT
358
BUFFER , Replaced By: A3878910323
358
BUFFER RAIL STOP
361
MOUNTING CAB SUSPENSION,REAR
362
MOUNTING , Replaced By: A3878910072
362
MOUNTING CAB SUSPENSION,REAR
362
MOUNTING , Replaced By: A3878910072
362
MOUNTING , Replaced By: A3878910072
364
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
364
SCREW BUFFER AND MOUNTING TO RAIL
367
SCREW PIPE CLAMP
367
SCREW , Replaced By: N304017008021
367
SCREW , Replaced By: N304017008021
370
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
373
WASHER BRACKET TO CROSS MEMBER
376
WASHER EXHAUST MUFFLER TO STRAP
376
WASHER , Replaced By: N000125008443
379
MOUNTING CAB LOCKING MECHANISM
379
MOUNTING CAB MOUNTING,REAR,4 972621
379
MOUNTING CAB LOCKING MECHANISM
379
MOUNTING CAB MOUNTING,REAR,4 972621
382
PIN BEARING BRACKET,4 972621
382
PIN BEARING BRACKET,4 972621
383
SPACER TUBE BEARING BRACKET
383
SPACER TUBE BEARING BRACKET
385
LOCK RING BEARING BRACKET,4 972621
386
SCREW SPACER TUBE TO MOUNTING
386
SCREW , Replaced By: N000960016251
386
SCREW SPACER TUBE TO MOUNTING
387
NUT COMBINATION CYLINDER TO BEARING BRACKET
387
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
388
PLATE MOUNTING AND RAIL TO LEAF SPRING
389
BASE MOUNTING AND RAIL TO LEAF SPRING
391
SCREW MOUNTING AND RAIL TO LEAF SPRING
391
SCREW STRAP TO BRACKET
394
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
424
FASTENER , Replaced By: A0008902389
424
FASTENER , Replaced By: A0008902389
424
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
427
ROD CENTRAL LOCK,5 002668
427
ROD CENTRAL LOCK
427
ROD CENTRAL LOCK
430
PIN PULL TO FASTENER
430
PIN PULL TO FASTENER, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
433
WASHER BRACKET TO CROSS MEMBER
434
COTTER PIN LEVER TO ROD
434
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
435
LOCK , Replaced By: N912002008003
435
LOCK PULL TO FASTENER
436
CONSOLE CENTRAL LOCK
439
SCREW CENTRAL LOCK TO CAB M 10X16
439
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
442
SCREW END PIECE TO EXHAUST PIPE M 10X25
445
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
446
WASHER , Replaced By: N000125010532
446
WASHER RADIATOR TO RUBBER MOUNTING
448
NUT , Replaced By: N910113010000
448
NUT STRAP TO BRACKET
451
BRACKET ROD THRU CAB
454
SEAL ROD THRU CAB
457
CLAMPING SLEEVE ROD TO BRACKET
460
LEVER CAB LOCKING MECHANISM,5 002669
460
LEVER CAB LOCKING MECHANISM,5 002668
460
LEVER CAB LOCKING MECHANISM,5 132082
460
LEVER CAB LOCKING MECHANISM
460
LEVER CAB LOCKING MECHANISM
463
BUSHING LEVER TO CAB
466
HANDLE , USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS, Replaced By: A6208910073
466
HANDLE CAB LOCKING MECHANISM
469
SCREW BUSHING AND LEVER TO CAB
472
NUT , Replaced By: N913004008001
472
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
473
RIVET BUSHING AND LEVER TO CAB
475
CLAMPING SLEEVE , Replaced By: N001481005039
475
CLAMPING SLEEVE LEVER MOUNTING
478
WASHER , Replaced By: N000125015019
478
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
481
RETAINING RING LEVER MOUNTING, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 287988
484
WASHER BRACKET TO CROSS MEMBER
487
PIN LEVER TO ROD
488
COTTER PIN PULL ROD TO LEVER
511
BUFFER (HOLLOW RUBBER SPRING),CAB
514
FLANGE HOLLOW RUBBER SPRING
517
BUSHING HOLLOW RUBBER SPRING
520
WASHER HOLLOW RUBBER SPRING TO CAB,5 956657
520
WASHER , Replaced By: A4432610076
523
SCREW , Replaced By: N304017010051
523
SCREW
523
SCREW EXHAUST PIPE TO BRACKET
526
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
999
WASHER , Replaced By: A6558910210
999
WASHER HOLLOW RUBBER SPRING
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
STABILIZER , Replaced By: A6528900104
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
999
SPACER TUBE
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
BEARING BRACKET LINK,5 172818
999
MOUNTING RIGHT VIBRATION ABSORBER
999
MOUNTING LEFT VIBRATION ABSORBER
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT SIDE MEMBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
WASHER STABILIZER TO BEARING
999
BRACKET BUFFER
999
SPRING CAB SUSPENSION,FRONT
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
SPACER TUBE MOUNTING TO CONSOLE
999
SHIM , Replaced By: A3878910498
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
WASHER BEARING BRACKET
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUSHING SPRING
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
MOUNTING (RUBBER BUFFER)
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
