Mercedes N308765016002 - Болт

O 404 618.003

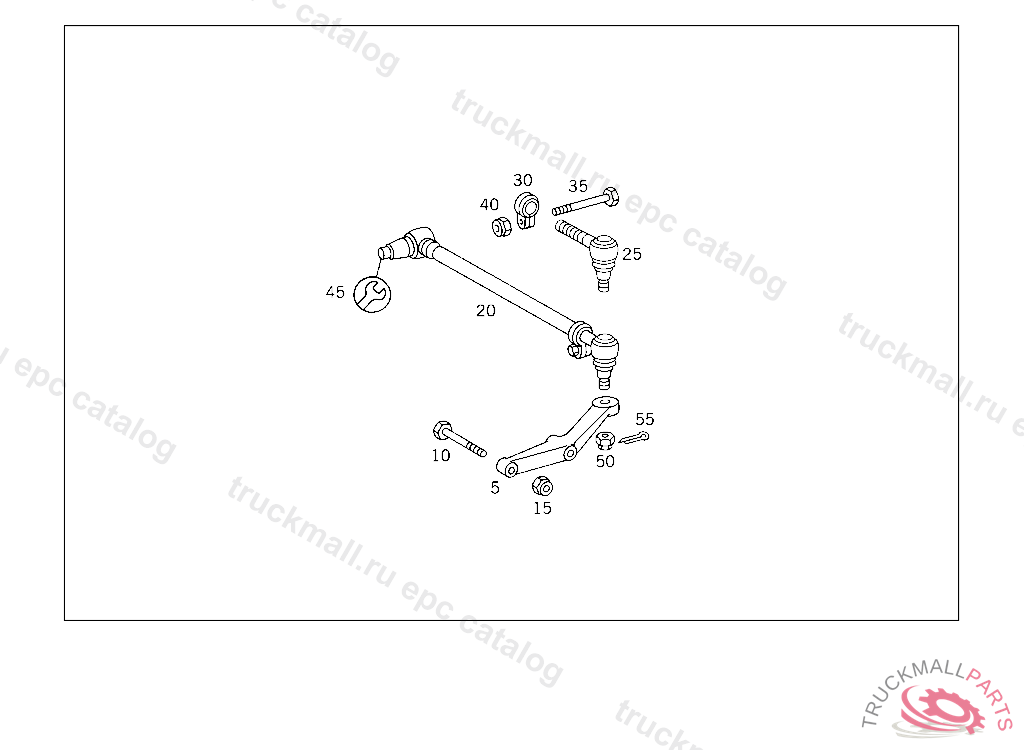

32 SPRINGS AND SUSPENSION - 001 BRACE WITH MOUNTING PARTS

Поз.
Артикул
Описание
5
A3563330507
LEVER BRACE,RIGHT
5
A3563330407
LEVER BRACE,LEFT
10
N000960016260
SCREW , Replaced By: N308765016002
10
N308765016002
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
10
N000960016237
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
15
N910113016001
NUT CONSOLE TO SUPPORT
20
A3563330805
THRUST ARM FRONT AXLE
20
A3563330605
THRUST ARM FRONT AXLE
25
A0003330827
JOINT
30
A0003380717
CLAMPING PIECE
35
N000960010023
SCREW
40
N910113010002
HEXAGON NUT
40
N913004010010
NUT , Replaced By: N910113010002
45
A0003300711
REPAIR KIT THRUST ARM
50
N000979020006
NUT THRUST ARM TO LEVER & SUBSTRUCTURE
55
N000094004065
COTTER PINROCKINGER TYP 260 G140
