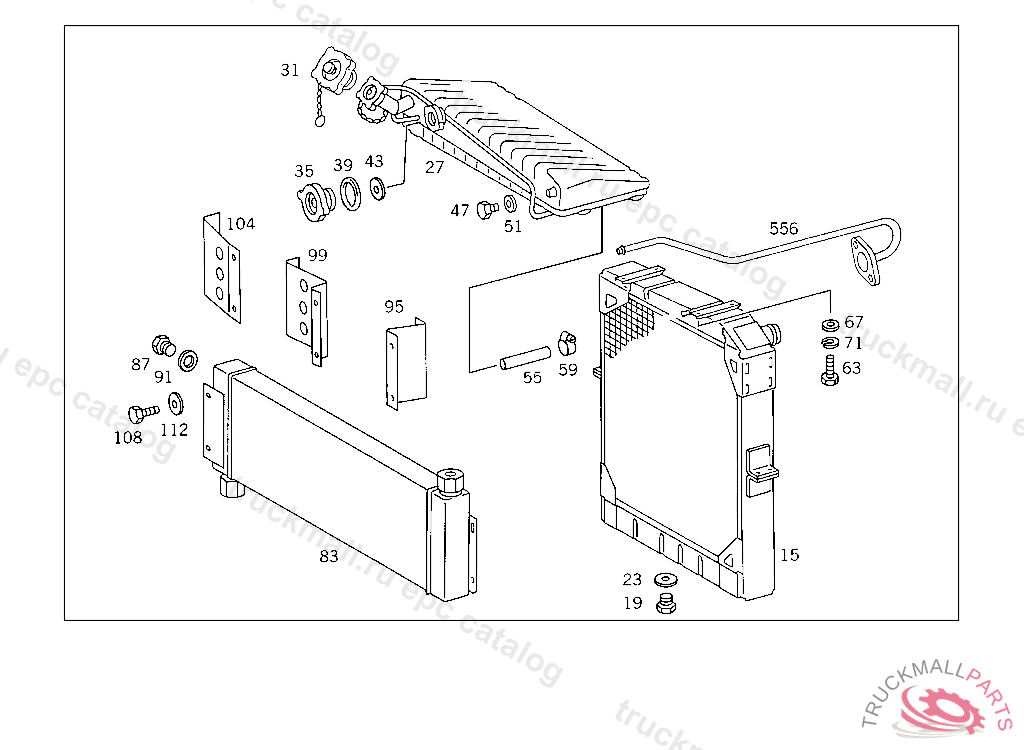

Поз.
Артикул
Описание
15
RADIATOR
15
RADIATOR"BEHR"
19
SCREW PLUG WATER DRAIN
19
SCREW PLUG , Replaced By: N007604014101
23
SEAL RING FUEL LINE TO FEED PUMP
27
TANK ON RADIATOR
31
RADIATOR CAP CENTRAL
31
RADIATOR CAP CENTRAL
35
RADIATOR CAP FILLER NECK
35
RADIATOR CAP FILLER NECK
39
GASKET O.D., 52 MM
43
GASKET O.D., 37 MM
47
SCREW PLUG WATER DRAIN
47
SCREW PLUG , Replaced By: N007604014101
51
SEAL RING FUEL LINE TO FEED PUMP
55
HOSE OVERFLOW, EXPANSION TANK
59
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
59
CLAMP , Replaced By: N916017011001
63
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
63
SCREW , Replaced By: N304017008016
67
WASHER EXHAUST MUFFLER TO STRAP
67
WASHER , Replaced By: N000125008443
71
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
83
RADIATOR OIL COOLER
87
SCREW PLUGTO 000 553 03 05,000 553 18 05,
87
SCREW PLUG , Replaced By: N000908014009
91
SEAL RING
95
BRACKET OIL COOLER TO RADIATOR
99
BRACKET OIL COOLER TO RADIATOR,5 188038
104
BRACKET OIL COOLER TO RADIATOR,5 188038
108
SCREW PUMP TO BRACKET
108
SCREW , Replaced By: N304017006016
112
WASHER COMPRESSED AIR LINE TO BRACKET
112
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
556
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
FITTING OIL LINE TO RADIATOR
999
BRACKET LINE MOUNTING
999
BRACKET OIL LINE TO TRANSMISSION
999
OIL PIPE (OIL LINE),FROM HOSE TO TRANSMISSION
999
OIL PIPE FROM TRANSMISSION TO RETURN HOSE
999
OIL PIPE FROM TRANSMISSION TO RETURN HOSE
999
FITTING HIGH PRESSURE LINE TO STEERING
