Поз.
Артикул
Описание

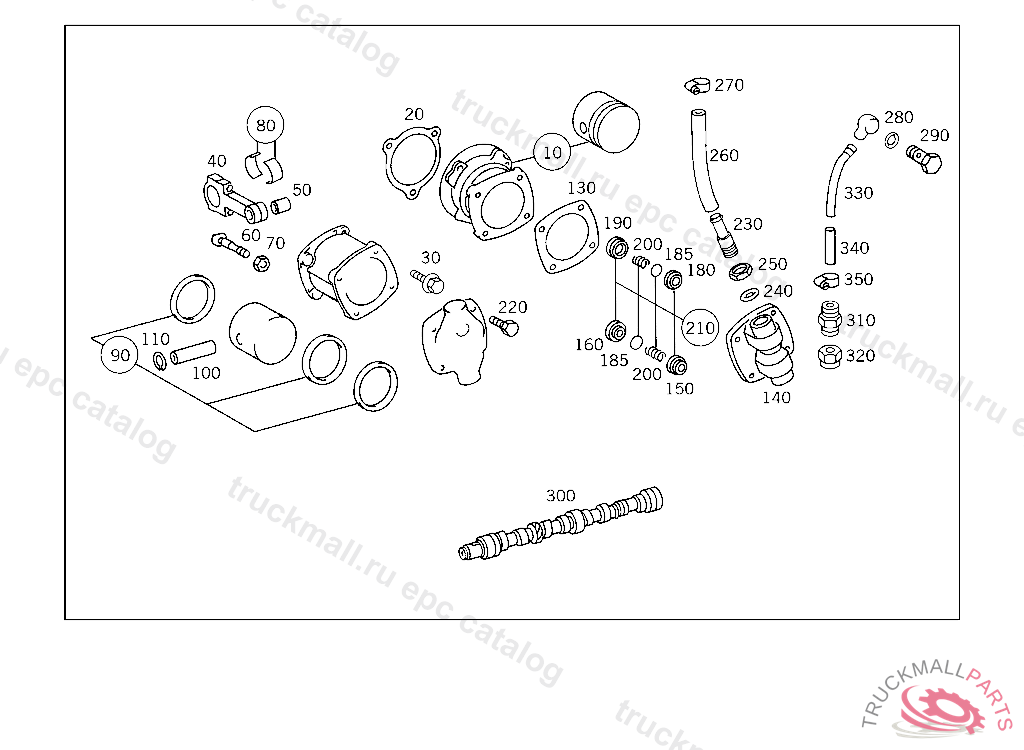

10
CYLINDER LINER THREE-HOLE MOUNTING,WITH PISTON 77.00 MM, UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978
10
CYLINDER LINER , Replaced By: A3141310102
20
GASKET AS REQUIRED 0.50 MM,085523
20
GASKET AS REQUIRED 0.30 MM,085523
20
GASKET , Replaced By: A3211310180
20
GASKET , Replaced By: A3211310080
30
SCREW , Replaced By: A3529900604
30
SCREW , Replaced By: N910105008005
30
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
40
CONNECTING ROD
50
BUSHING ,082678
60
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
70
NUT
80
BEARING SHELL STANDARD,082678
80
BEARING SHELL REPAIR SIZE I 31.75 MM
80
BEARING SHELL STANDARD SIZE I 31.90 MM
80
BEARING SHELL REPAIR SIZE II 31.50 MM
80
BEARING SHELL REPAIR SIZE III 31.25 MM
80
REPAIR KIT , Replaced By: A3521312433
80
REPAIR KIT , Replaced By: A3521312333
80
REPAIR KIT , Replaced By: A3521312233
80
REPAIR KIT , Replaced By: A3521312133
80
REPAIR KIT , Replaced By: A3521312033
90
PISTON RING , Replaced By: A3521310111
90
PISTON RING , Replaced By: A3521310411
90
PISTON RING , Replaced By: A3521310114
90
PISTON RING , Replaced By: A3521311111
90
PISTON RING , Replaced By: A0001317711
90
PISTON RING , Replaced By: A0001317711
90
PISTON , Replaced By: A3441301417
90
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
100
PISTON PIN
110
LOCK RING
130
GASKET CYLINDER HEAD TO CYLINDER LINER 1.00 MM
130
GASKET
130
GASKET
130
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
140
CYLINDER HEAD
150
SPRING CASE
160
VALVE DISC
180
VALVE DISC
185
WASHER
190
VALVE DISC
190
VALVE DISC
200
SPRING
210
VALVE AIR COMPRESSOR CYLINDER HEAD
210
REPAIR KIT , Replaced By: A3521300020
210
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD
220
SCREW
230
INTAKE PIPE FROM AIR COMPRESSOR TO CYLINDER HEAD COVER
230
INTAKE PIPE , Replaced By: A3141340301
230
FITTING AIR COMPRESSOR AND OIL PAN
240
SEAL RINGTO 376 131 74 01
250
NUT , Replaced By: N080705022002
260
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
270
CLAMP
280
SEAL RING , ONLY APPLICABLE TO IDENT NO. 662256,681960,681966,681969,681976,682036,682038,682051,682063,682066,682081.
290
HOLLOW SCREW BREATHER PIPE TO CONNECTION FITTING
300
CAMSHAFT WITH INJECTION PUMP MOUNTED INJECTION TIMING DEVICE,LIFTING PIN WIDTH: 28 MM, IN THE CASE OF CAMSHAFT-DRIVEN AIR COMPRESSOR,ALSO ORDER: 352 130 04 16 CONNECTING ROD,352 131 25 33 PARTS KITBEARING SHELLS UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978
300
CAMSHAFT ,085524 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
310
SCREW FITTING
320
UNION NUT OIL LINE TO RADIATOR,5 106401
330
INTAKE PIPE
340
HOSE15X24X700
350
CLAMP
999
PISTON RING , Replaced By: A3521310711
999
PISTON RING , Replaced By: A3521310611
999
PISTON RING , Replaced By: A3521310211
999
PISTON RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3521310911
999
PISTON RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3521310811
999
PISTON RING , Replaced By: A3521310511
999
PISTON RING , Replaced By: A3521310414
999
PISTON RING , Replaced By: A3521310314
999
PISTON RING , Replaced By: A3521310214
999
PISTON RING
999
SCREW PLUG
999
SCREW BRACKET TO SIDE MEMBER
999
LOCK WASHER DELIVERY AND SUCTION LINES TO PIPE CLAMP,1401150112256208
999
BEARING SHELL
999
PISTON RINGNO.4
999
BEARING SHELL
999
PISTON RINGNO.4
999
BEARING SHELL
999
PISTON RINGNO.3
999
BEARING SHELL
999
PISTON RINGNO.3
999
BEARING SHELL
999
PISTON RING
999
BEARING SHELL
999
PISTON RING *** NO.1.2
999
BEARING SHELL
999
PISTON RING *** NO.1.2
999
BEARING SHELL
999
PISTON RING
999
PISTON RING GROOVE III
999
BEARING SHELL
999
BEARING SHELL
999
CYLINDER LINER
999
CYLINDER LINER
999
CYLINDER LINER
999
CYLINDER LINER
999
CYLINDER LINER
999
CYLINDER LINER
999
CYLINDER HEAD
999
GASKET , Replaced By: A3211310180
999
PISTON
999
PISTON REPAIR SIZE III 77,75 MM
999
PISTON
999
PISTON
999
PISTON
999
PISTON
999
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
999
FLANGE
