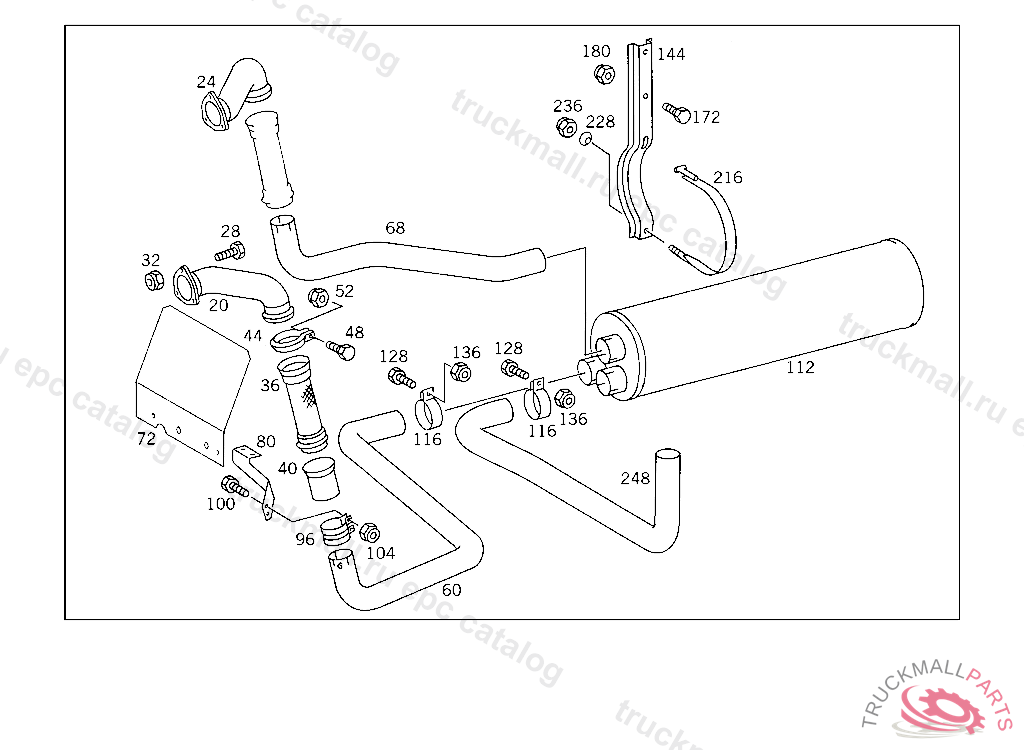

Поз.
Артикул
Описание
20
CONNECTOR LEFT FRONT
20
CONNECTOR FROM EXHAUST MANIFOLD TO FLEXIBLE METAL TUBE,LEFT
24
CONNECTOR RIGHT FRONT
28
SCREW CONNECTOR TO EXHAUST MANIFOLD
28
SCREW , Replaced By: N000931012186
28
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD 12X70
32
NUT CONNECTOR TO EXHAUST MANIFOLD
32
NUT END PIECE TO EXHAUST PIPE
36
FLEXIBLE METAL TUBE CONNECTOR
40
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
44
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
48
SCREW , Replaced By: N304017008028
48
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
48
SCREW , Replaced By: N304017008040
48
SCREW BRACKET TO SIDE MEMBER
52
NUT , Replaced By: N913004008001
52
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
EXHAUST PIPE FRONT,REAR LEFT PART
60
EXHAUST PIPE FRONT,REAR LEFT PART
60
EXHAUST PIPE FRONT LEFT
68
EXHAUST PIPE FRONT,REAR RIGHT PART
68
EXHAUST PIPE FRONT,REAR RIGHT PART
68
EXHAUST PIPE FRONT,REAR RIGHT PART
72
COVERING LEFT
72
COVERING RIGHT
72
COVERING AT FRAME
80
BRACKET LEFT EXHAUST PIPE
80
BRACKET FRONT EXHAUST PIPE,LEFT
80
BRACKET RIGHT EXHAUST PIPE
80
BRACKET FRONT EXHAUST PIPE,RIGHT
96
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
96
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
96
CLAMP AT CROSS MEMBER
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW , Replaced By: N304017010002
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
112
EXHAUST MUFFLER
112
EXHAUST MUFFLER
116
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
116
CLAMP , Replaced By: N071555090502
116
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
116
CLAMP , Replaced By: N071555094502
116
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
128
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
128
SCREW , Replaced By: N304017008027
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW , Replaced By: N304017010002
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
NUT , Replaced By: N913004008001
136
NUT STRAP TO BRACKET
136
NUT , Replaced By: N910113010000
144
BRACKET FRONT EXHAUST MUFFLER
144
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
172
SCREW REAR EXHAUST PIPE TO MUFFLER
172
SCREW BRACKET TO SIDE MEMBER
172
SCREW , Replaced By: N304017010002
172
SCREW BRACKET TO CONSOLE
172
SCREW , Replaced By: N304017010043
172
SCREW BRACKET TO SIDE MEMBER M10X38
172
SCREW , Replaced By: N308676014020
172
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
172
SCREW END PIECE TO EXHAUST PIPE M 10X25
172
SCREW END PIECE TO EXHAUST PIPE M 10X25
172
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
180
NUT , Replaced By: N910113010000
180
NUT STRAP TO BRACKET
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113014001
180
NUT BRACKET TO SIDE MEMBER
180
NUT STRAP TO BRACKET
216
STRAP , Replaced By: A6554900942
216
STRAP , Replaced By: A6554900942
216
STRAP PARTICLE FILTER
216
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR,5 548864
228
SPHERICAL WASHER STRAP TO BRACKET
236
NUT , Replaced By: N910113010000
236
NUT STRAP TO BRACKET
236
NUT STRAP TO BRACKET
236
NUT , Replaced By: N913004008001
236
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
248
REAR EXHAUST PIPE BOTTOM CENTRAL
248
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
248
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
999
BRACKET SUPPORT TO CROSS MEMBER
