Поз.
Артикул
Описание

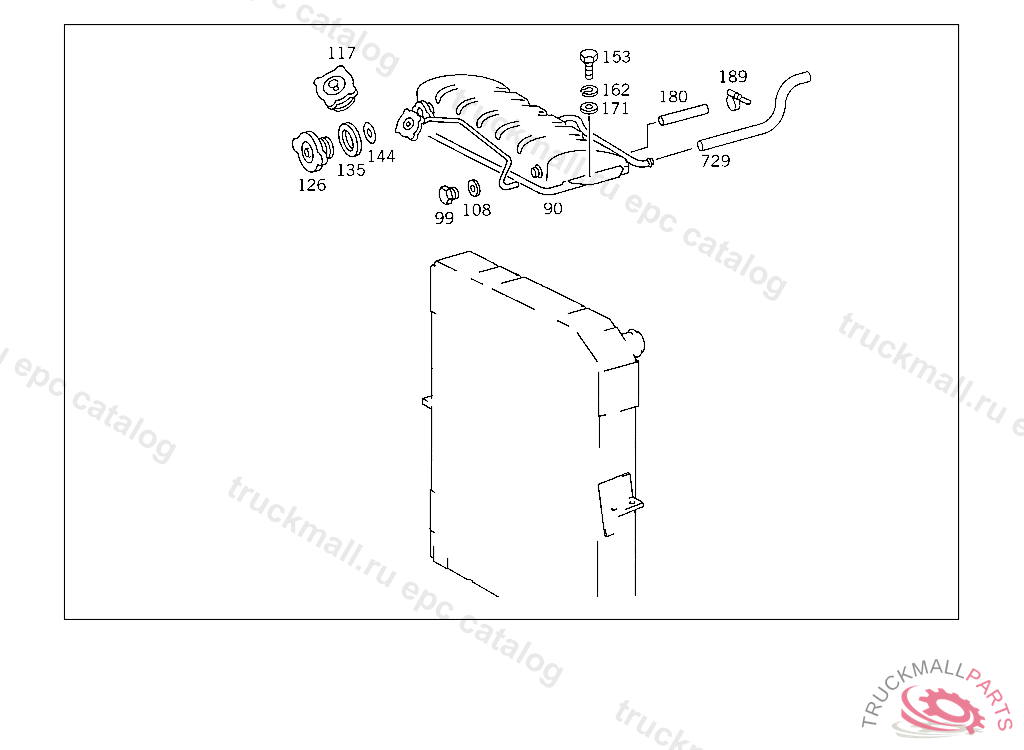

90
TANK ON RADIATOR
99
SCREW PLUG WATER DRAIN
99
SCREW PLUG , Replaced By: N007604014101
108
SEAL RING FUEL LINE TO FEED PUMP
108
SEAL RINGTO 000 553 03 05,000 553 18 05,
108
SEAL RING FUEL LINE TO FEED PUMP
117
RADIATOR CAP FILLER NECK
117
RADIATOR CAP FILLER NECK
126
RADIATOR CAP CENTRAL
126
RADIATOR CAP CENTRAL
135
GASKET O.D., 52 MM
144
GASKET O.D., 37 MM
153
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
153
SCREW , Replaced By: N304017008016
162
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
171
WASHER EXHAUST MUFFLER TO STRAP
171
WASHER , Replaced By: N000125008443
180
HOSE OVERFLOW, EXPANSION TANK
189
CLAMP , Replaced By: N916017011000
189
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
189
CLAMP , Replaced By: N916017011001
729
HOSE DE-AERATION, FROM ENGINE TO EXPANSION TANK
729
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
RADIATORBEHR,5 121637
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
RADIATOR , Replaced By: A3875002903
999
RADIATOR , Replaced By: A3855010401
999
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
BRACKET OIL LINES
999
SHIM RUBBER MOUNTING TO BRACKET
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
HOSE FROM RADIATOR TO WATER PUMP
999
BRACKET , Replaced By: A3604280243
999
RADIATOR , Replaced By: A3815010801
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL LINE TO TRANSMISSION,REAR LEFT
999
CLAMP LINE MOUNTING
999
CLAMP LINE MOUNTING
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
RADIATOR WATER BEHR
999
RADIATOR WATER BEHR
