Поз.
Артикул
Описание

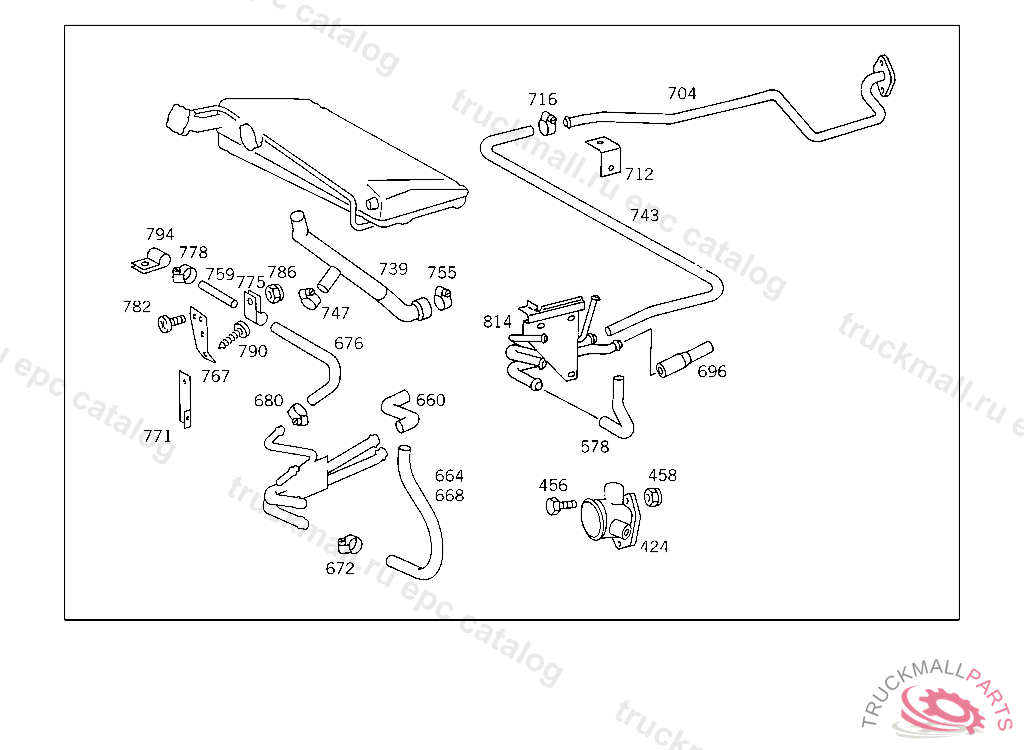

424
CONNECTOR AT WATER PUMP
424
CONNECTOR , Replaced By: A3875010423
456
SCREW BRACKET TO FRAME SIDE MEMBER
456
SCREW RADIATOR M 10X45
458
NUT , Replaced By: N910113010000
458
NUT STRAP TO BRACKET
578
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
660
HOSE HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE
664
HOSE HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE
668
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
672
CLAMP , Replaced By: N000000000667
672
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
676
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
680
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
680
CLAMP , Replaced By: N916017011001
696
LOCKING CAP , Replaced By: A3815010144
696
COVER FROM COOLING WATER OUTLET TO WATER PUMP
704
LINE HEATING PIPE
704
LINE HEATING AND BREATHING
712
BRACKET HEATING PIPE
716
CLAMP , Replaced By: N000000000667
716
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
739
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
739
HOSE FROM WATER PUMP TO EXPANSION TANK
743
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
747
CLAMP HOSE TO FITTING AND TO OIL TANK
755
CLAMP , Replaced By: N000000000670
759
HOSE DE-AERATION PIPE TO EXPANSION TANK
759
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
767
BRACKET DE-AERATION LINE TO CAB
771
BRACKET DE-AERATION LINE TO CAB
775
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
775
CLAMP , Replaced By: N916016008200
775
CLAMP , Replaced By: A3604300143
775
CLAMP ,K 147121, Replaced By: N000000000319
778
CLAMP , Replaced By: N916017011001
778
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
782
SCREW CLAMP MOUNTING M 6X16
782
SCREW , Replaced By: N000000001146
786
NUT , Replaced By: N913004006001
786
NUT PUMP TO BRACKET
790
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
794
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
794
CLAMP , Replaced By: N916016008200
794
CLAMP , Replaced By: A3604300143
794
CLAMP ,K 147121, Replaced By: N000000000319
814
LINE (HEATING PIPE)
814
LINE HEATING AND BREATHING
999
RECEPTACLE SILICONE GREASE
999
BRACKET OIL LINE MOUNTING
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
999
HOSE , Replaced By: A3635060235
999
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE CONNECTION OF COOLING WATER LINES
999
BRACKET PIPE ELBOW
999
LINE FEED
999
BRACKET FEED LINE TO ENGINE
999
COOLING WATER LINE FEED
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017006016
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
