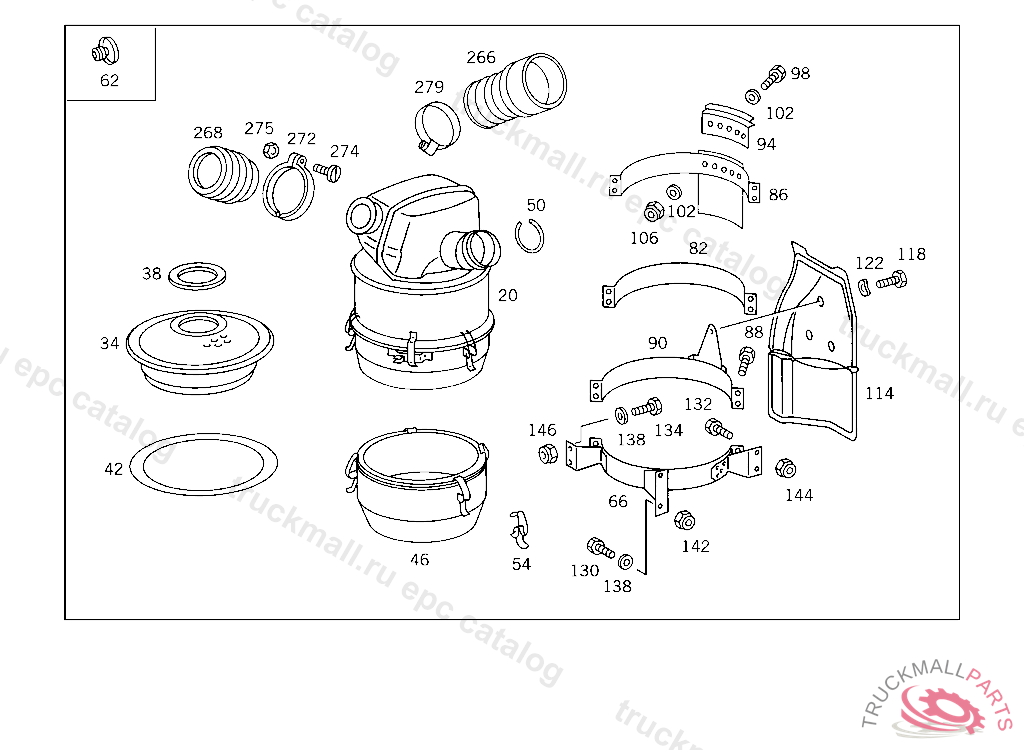

Поз.
Артикул
Описание
20
AIR CLEANER , Replaced By: A0130940102
20
AIR CLEANER , Replaced By: A0130940102
20
AIR CLEANER , Replaced By: A0100941202
20
AIR CLEANER , Replaced By: A0130940802
20
AIR CLEANER OIL BATH MANN U.HUMMEL
20
AIR CLEANER OIL BATH MANN & HUMMEL
20
AIR CLEANER OIL BATH,4 256253
20
AIR CLEANER OIL BATH MANN U. HUMMEL
20
AIR CLEANER OIL BATH MANN & HUMMEL
20
AIR CLEANER OIL BATH MANN & HUMMEL,4 256254
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
38
GASKET INSIDE
38
GASKET INSIDE
38
GASKET INSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
50
SNAP RING DIA., 150 MM
50
SNAP RING DIA., 128 MM
54
FASTENER
54
FASTENERKNECHT
62
PLUG MAINTENANCE OF AIR CLEANER, NO.9051I I I I II I
62
PLUG MAINTENANCE OF AIR CLEANER
66
SUPPORT AIR CLEANER,K 000844
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER
66
SUPPORT AIR CLEANER,K 000844
66
SUPPORT AIR CLEANER
66
SUPPORT ,4 371045K 000843, Replaced By: A6565200333, +002N000961016009, +002N913004016004
66
SUPPORT ,4 371045K 000843, Replaced By: A6565200233, +002N000961016009, +002N913004016004
66
SUPPORT ,4 371044, Replaced By: A3875203433, +001A3875281321
66
SUPPORT ,4 371044, Replaced By: A3875203333, +001A3875281321
66
LINE ,4 371044, Replaced By: A3875203333, +001A3875206141
66
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
66
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
82
STRAP , Replaced By: A3875281321
82
STRAP AIR CLEANER TO SUPPORT
82
STRAP AIR CLEANER TO SUPPORT
86
BRACKET MUD APRON,4 371044
86
BRACKET MUD APRON,4 371044
88
SCREW PIPE CLAMP
88
SCREW , Replaced By: N304017008034
88
SCREW , Replaced By: N304017008021
90
BRACKET ,4 3710454 900515, Replaced By: A3875206241, +001A3875201724
90
BRACKET ,4 3710454 900515, Replaced By: A3875206141, +001A3875201624
90
BRACKET , Replaced By: A3875203941
90
BRACKET , Replaced By: A3875203841
90
BRACKET AIR CLEANER
90
BRACKET AIR CLEANER,4 900516
94
BRACKET MUD APRON,4 3710454 900515
98
SCREW , Replaced By: N304017006018
98
SCREW COVER PLATE TO COVER PLATE M 6 X 12
102
WASHER , Replaced By: N009021006208
102
WASHER COMPRESSED AIR LINE TO BRACKET
106
NUT PUMP TO BRACKET
106
NUT , Replaced By: N913004006001
114
ANTINOISE CAPSULE AIR CLEANER
114
ANTINOISE CAPSULE AIR CLEANER,4 900516
118
SCREW COVER PLATE TO BRACKET
122
SPRING WASHER LICENSE PLATE TO BRACKET
130
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
130
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
130
SCREW , Replaced By: N308676014020
132
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
134
SCREW REAR EXHAUST PIPE TO MUFFLER
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
138
WASHER , Replaced By: N000125010532
138
WASHER RADIATOR TO RUBBER MOUNTING
142
NUT COMBINATION CYLINDER TO BEARING BRACKET
142
NUT BRACKET TO SIDE MEMBER
142
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
142
NUT , Replaced By: N910113014001
144
NUT SUPPORT TO SIDE MEMBER
146
NUT STRAP TO BRACKET
146
NUT , Replaced By: N910113010000
266
HOSE , Replaced By: A6205280782
266
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
266
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
268
BOOT AIR INTAKE
272
CLAMP BOOT TO INTAKE PIPE
272
CLAMP BOOT TO INTAKE PIPE
274
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
275
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
279
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
279
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
279
CLAMP , Replaced By: N000000000678
279
CLAMP , Replaced By: A0059971490
279
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
279
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
999
SUPPORT AIR CLEANER,4 785295
999
SUPPORT AIR CLEANER
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET AIR CLEANER,FRONT RIGHT
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
MUFFLER AIR CLEANER
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
BRACKET AIR CLEANER,REAR RIGHT
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE FRAME
999
STRAP AIR CLEANER
999
SUPPORT , Replaced By: A6565200133
999
SUPPORT , Replaced By: A6565200033
999
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
RING WARNING INDICATOR
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
WARNING INDICATOR AIR CLEANER
