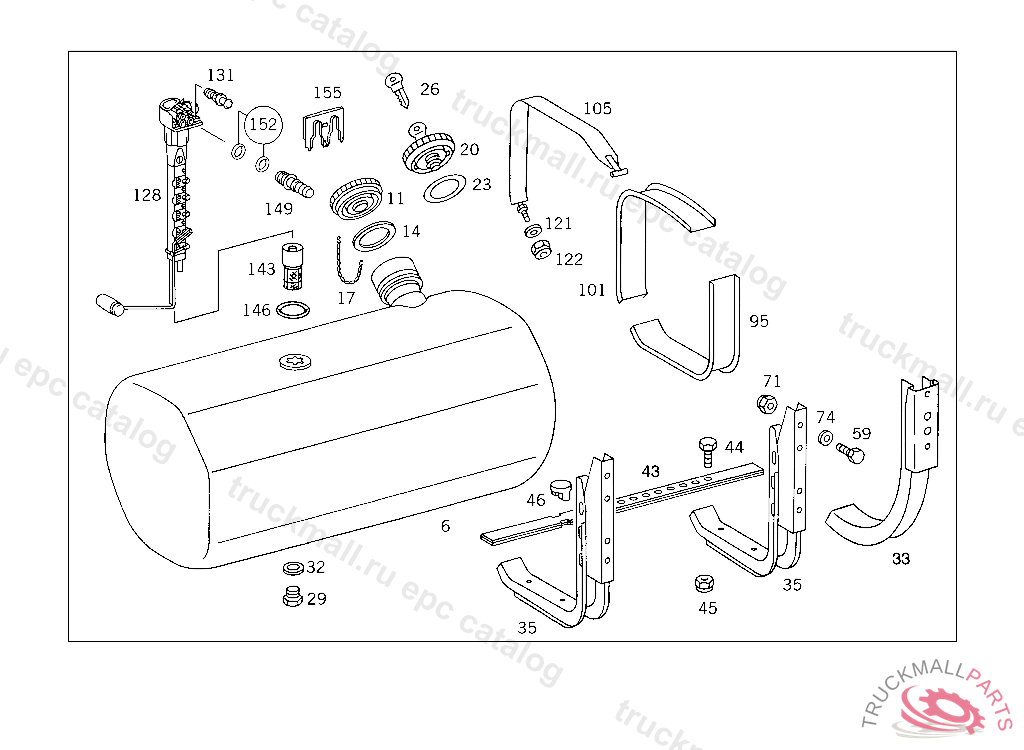

Поз.
Артикул
Описание
6
FUEL TANK ,K 169122, Replaced By: A6534700201, +001A0005409917, +001A0115426117
6
FUEL TANK210 L,K 169123
11
FILLER CAP , Replaced By: A0004700305
11
FILLER CAP
14
SEAL RING
17
CHAIN FILLER CAP
20
FILLER CAP , Replaced By: A0004718430
20
FILLER CAP LESS BREATHING
20
FILLER CAP LESS BREATHING
23
SEAL RING , Replaced By: A3049970340
23
SEAL RING
26
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
29
SCREW PLUG FUEL TANK
29
SCREW PLUG , Replaced By: N007604014110
32
SEAL RING FUEL LINE TO FEED PUMP
35
SUPPORT FUEL TANK
35
SUPPORT REAR FUEL TANK,NO.2 CONSOLE,5 944348
43
PROTECTIVE RAIL FUEL TANK TO CONSOLE,5 429713
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
45
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
NUT , Replaced By: N913004008001
45
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
46
STOP SUPPORTING RAIL
59
SCREW BRACKET TO SIDE MEMBER
59
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
71
NUT , Replaced By: N910113014001
71
NUT BRACKET TO SIDE MEMBER
74
WASHER SPARE WHEEL CARRIER
95
PAD FUEL TANK SUPPORT 72 / 80, ORDER BY THE METER
95
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
101
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
105
STRAP FUEL TANK TO SUPPORT
121
WASHER
122
NUT SUPPORT TO SIDE MEMBER
128
SENDER UNIT FUEL GAUGE,K 169123
128
SENDER UNIT ,K 169122, Replaced By: A0085426917, +001A3529870045
131
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
143
FUEL STRAINER FUEL TANK,K 169122
143
FUEL STRAINER FUEL TANK,K 169123
146
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
149
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
149
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
149
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
152
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
155
LOCK FUEL GAUGE SENDER UNIT CONNECTION
