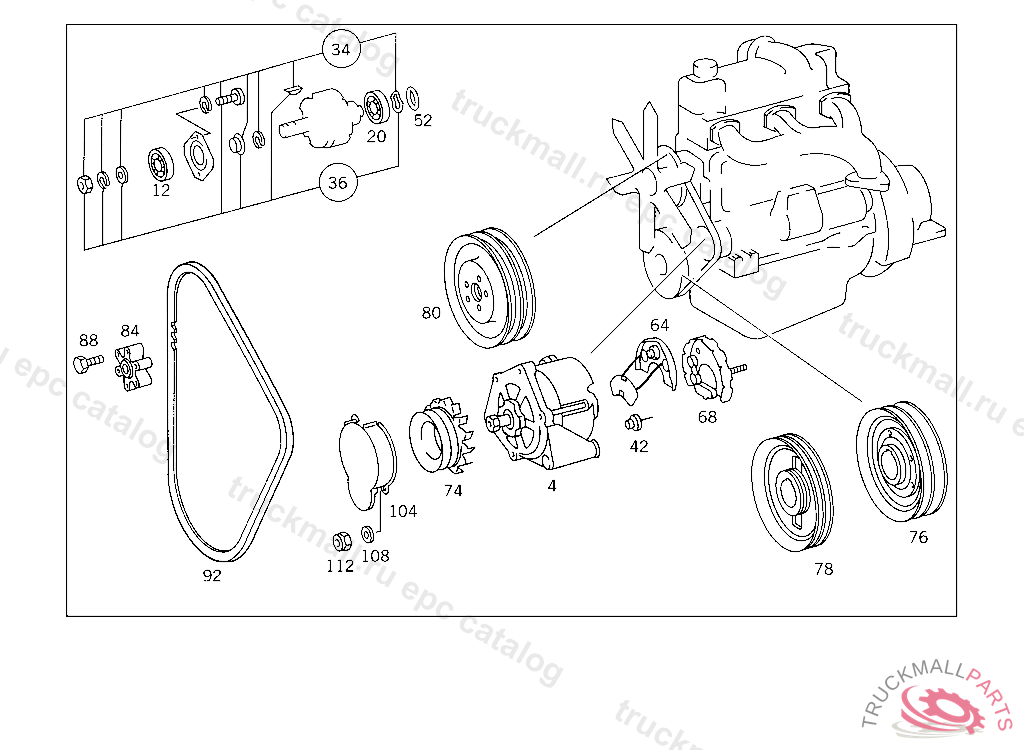

Поз.
Артикул
Описание
4
ALTERNATOR , Replaced By: A0091540702
4
ALTERNATOR , Replaced By: A0071542702
4
ALTERNATOR , MB PART NO.003 154 81 02BOSCH PART NO. 0 120 400 754 MB PART NO.005 154 11 02BOSCH PART NO. 0 120 400 877 MB PART NO.005 154 34 02BOSCH PART NO. 0 120 469 518 MB PART NO.007 154 27 02BOSCH PART NO. 0 120 469 686, Replaced By: A0051543402
4
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
12
BALL BEARINGTO 007 154 27 02, 009 154 07 02
12
GROOVED BALL BEARING
12
BALL BEARING , Replaced By: A0079816625
20
BALL BEARING , Replaced By: A0089811225
20
BALL BEARINGTO 007 154 27 02, 009 154 07 02
20
BALL BEARINGTO 005 154 34 02
20
GROOVED BALL BEARING
34
REPAIR KIT
34
REPAIR KIT , Replaced By: A0001500472
36
REPAIR KIT , Replaced By: A0001500372
36
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
36
REPAIR KIT ROTOR TO 005 154 52 02
42
DIODE , Replaced By: A0005487918
52
SEAL RINGTO 005 154 34 02
52
RINGTO 007 154 27 02
64
RECTIFIER
68
RECTIFIER , Replaced By: A0011542116
68
RECTIFIER , Replaced By: A0011542716
68
RECTIFIER , Replaced By: A0011542116
68
RECTIFIER , Replaced By: A0011541616
68
RECTIFIER , Replaced By: A0011541116
68
RECTIFIER , Replaced By: A0011541516
68
RECTIFIER , Replaced By: A0001544716
68
RECTIFIER
68
RECTIFIERTO 005 154 34 02
74
FANTO 344 154 71 02
74
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
74
FAN
74
FAN , NOT USED
76
PULLEY , Replaced By: A3140303668
76
PULLEY , Replaced By: A3140302668
76
PULLEY
78
PULLEY
78
PULLEY , Replaced By: A3140303668
80
PULLEY WATER PUMP
84
HUB RING
88
SCREW BRACKET TO PLATE
92
V-BELT SET2 PIECES 12.5X1250
92
V-BELT SET2 PIECES 12.5X1290
92
V-BELT , Replaced By: A0039975292
104
SCREENING PLATE
108
WASHER BOOT TO CAB FLOOR
108
WASHER , Replaced By: N000433005304
112
NUT TWO-WAY VALVE TO BRACKET
999
SCREW T-FITTING TO BRACKET M4X25
999
SCREW , Replaced By: N007985004130
999
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW TORSION BAR TO SHACKLE,5 903514
999
SCREW ,5 903514, Replaced By: N000960012353
999
SCREW , Replaced By: N000960012225
999
NUT STRAP TO SUPPORT
999
NUT FUEL TANK TO SUPPORT
999
NUT , Replaced By: N304032008006
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
GROOVED BALL BEARING
999
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
999
NUT WEAR INDICATOR
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER ALTERNATOR CONNECTION W
999
SPRING WASHER HEATER PLUG CABLE HARNESS
999
SPRING WASHER CLAMP MOUNTING,4 478001
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
WASHER
999
CLAMPING BOLT (CLAMPING BOLT)
999
FAN ALTERNATOR
999
CLAMPING BOLT , Replaced By: A3641500072
999
BRACKET ALTERNATOR
999
CLAMPING BOLT , Replaced By: A4031500572
999
CLAMPING BOLT COMPLETE
999
NEEDLE BEARING
999
BALL BEARING , Replaced By: A0059819225
999
BALL BEARING DRIVE END BEARING TO 008 154 31 02
999
BALL BEARING SLIP RING SIDE TO 008 154 31 02
999
BALL BEARINGTO 005 154 32 02
999
BALL BEARING , Replaced By: A0059812225
999
V-BELT ALTERNATOR,545241
999
ALTERNATOR
999
SCREWTO 008 154 31 02
999
SCREW , Replaced By: A0009909621
999
SCREW , Replaced By: A0009907621
999
SCREW HOUSING
999
SCREW , Replaced By: A0019902120
999
SCREW
999
SCREW , Replaced By: A0009907121
999
SCREWTO 005 154 51 02
999
RECTIFIERTO 009 154 15 02
999
RECTIFIERTO 008 154 31 02
999
SCREW
999
SCREW
999
SCREW
999
SCREW , Replaced By: A0009907921
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009909821
999
SCREW , Replaced By: A0019900821
999
SCREW , Replaced By: A0009909721
999
SCREW , Replaced By: A0019900321
999
SCREW REGULATOR MOUNTING TO 009 154 07 02
999
SCREW
999
SCREW , Replaced By: A0009908221
999
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
999
FAN , Replaced By: A0001558518
999
FAN
999
FAN ALTERNATOR
999
CARBON BRUSH SET , Replaced By: A0001545514
999
RECTIFIER
999
RECTIFIERTO 005 154 52 02
999
RECTIFIERTO 005 154 83 02,006 154 67 02
999
RECTIFIERTO 005 154 51 02
999
RECTIFIER , Replaced By: A0001544616
999
RECTIFIER , Replaced By: A0001545816
999
REGULATORTO 007 154 27 02
999
SCREWTO 005 154 11 02
999
REGULATORTO 008 154 31 02
999
BRACKET WITH CARBON BRUSHES TO 008 154 31 02
999
TERMINAL TERMINALS: B+, B-, D+, W
