3535 K,3538 K,3548 K, 4435 K
625.149
25 CLUTCH
330 HYDRAULIC-PNEUMATIC CONTROL IL. 2

Mercedes N304017006016 - Винт M 6 X 16 8.8

3535 K,3538 K,3548 K, 4435 K 625.149

25 CLUTCH - 330 HYDRAULIC-PNEUMATIC CONTROL IL. 2

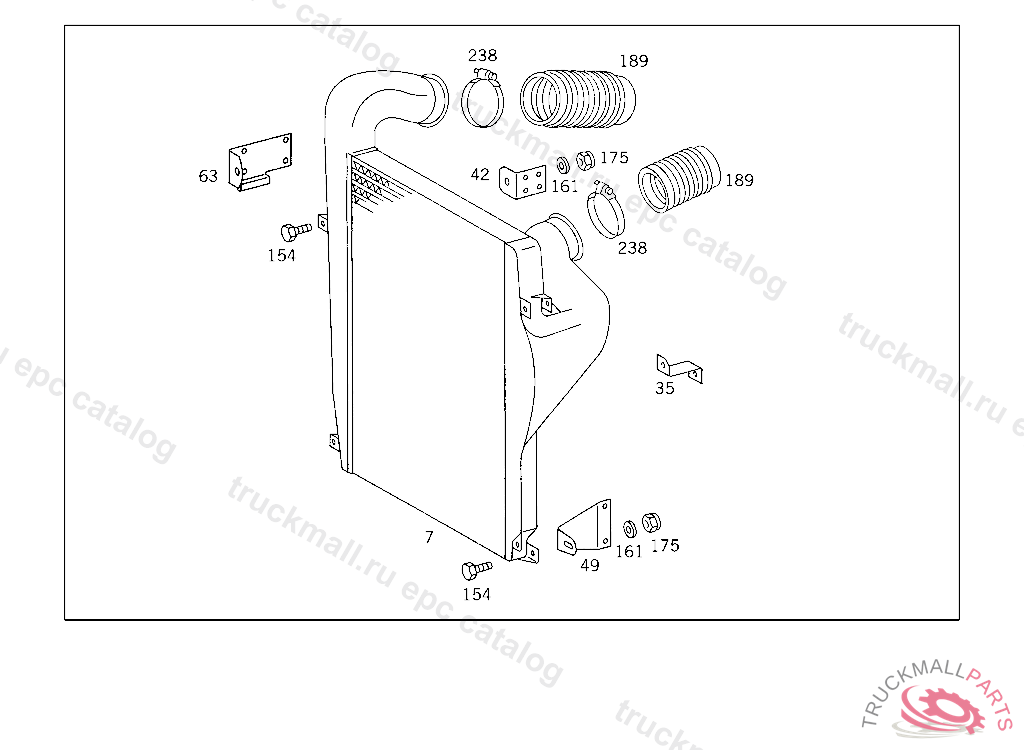

Поз.
Артикул
Описание
7
A6535010001
RADIATOR , Replaced By: A6565010201
7
A6565010001
RADIATOR ON WATER COOLER
7
A6565010101
RADIATOR (CHARGING AIR INTERCOOLER), TO BE ADAPTED DURING ASSEMBLY
7
A6525011401
RADIATOR , Replaced By: A6525012301
7
A6525012301
RADIATOR , Replaced By: A6565010001
7
A6995000901
RADIATOR , Replaced By: A6525000000
7
A6525000000
RADIATOR , Replaced By: A6565010101
7
A6565010201
RADIATOR (CHARGING AIR INTERCOOLER)
35
A6525060240
BRACKET CHARGING AIR INTERCOOLER,RIGHT BOTTOM
42
A6525060340
BRACKET CHARGE AIR INTERCOOLER
49
A6525060140
BRACKET CHARGING AIR INTERCOOLER,RIGHT TOP
63
A6555061840
BRACKET SEALING LIP TO RADIATOR
154
N000933008147
SCREW , Replaced By: N304017008021
154
N000933006121
SCREW , Replaced By: N304017006020
154
N304017008021
SCREW PIPE CLAMP
154
N304017008021
SCREW PIPE CLAMP
154
N304017006016
SCREW PUMP TO BRACKET
154
N304017006020
SCREW LICENSE PLATE TO BRACKET
154
N000933006183
SCREW , Replaced By: N304017006016
161
N000125008418
WASHER , Replaced By: N000125008443
161
N009021008205
WASHER , Replaced By: N009021008213
161
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
161
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
175
N913004006001
NUT PUMP TO BRACKET
175
N913004006002
NUT , Replaced By: N913004006001
175
N913004008004
NUT , Replaced By: N913004008001
175
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
189
A0010947882
HOSE , Replaced By: A0020945282
189
A0020945282
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
238
N000000000676
CLAMP , Replaced By: A0059970690
238
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
238
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
N006796010103
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
999
N000933010247
SCREW BRACKET TO SIDE MEMBER M10X38
999
A6995285307
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
999
A6995202606
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
999
A6995202506
PIPE ELBOW FROM ENGINE TO CHARGE AIR INTERCOOLER
999
A6995202406
PIPE ELBOW FROM ENGINE TO CHARGE AIR INTERCOOLER
999
A6555209844
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6555062840
BRACKET PIPE BEND TO RADIATOR
999
A6555062340
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6505060740
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6505060640
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6505060340
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6505010901
RADIATOR (CHARGING AIR INTERCOOLER)
999
A6505010001
RADIATOR (CHARGING AIR INTERCOOLER)
999
A6505000831
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A6255280180
GASKET PIPE TO CHARGING AIR INTERCOOLER
999
A0815200041
BRACKET AIR INTAKE PIPE TO ENGINE
999
A0805283040
BRACKET BRACKET TO FRAME, SIMPLE PART-PLEASE HAVE SHOP MADE
999
A0805282440
BRACKET CHARGE AIR PIPE
999
A0805282340
BRACKET TUBE TO FRAME
999
A0805209941
BRACKET AIR INTAKE PIPE TO BRACKET
999
A0805001131
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
A0020946982
HOSE AIR INTAKE PIPE TO ENGINE
