Mercedes A0008355171 - Баллон регенерационный кондиционера ЛиАЗ-5292 6213

CITARO 12M 2-TUERER 628.031

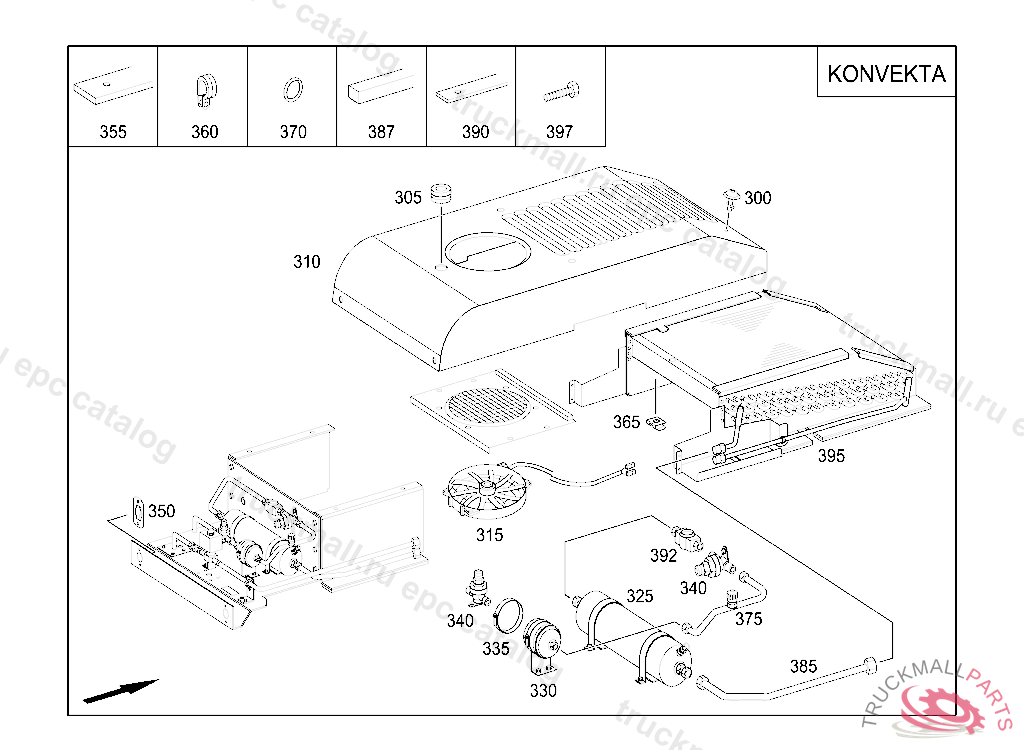

83 HEATING AND VENTILATION - 092 AIR CONDITIONER MAKE KONVEKTA IL. 2

Поз.
Артикул
Описание
300
A0009912212
PIN
305
A0009982705
GROMMET, OPEN, SMOOTH. GROMMET
310
A0008303713
COVERING
315
A0008384106
VENTILATOR
325
A0008355171
TANK
330
A0018356547
AIR DRIER
335
A0008352391
CLAMP65-82MM
340
A0038304084
VALVE
350
A0008360211
PLATE MOUNTING, COVER
355
A0009873166
SEALING STRIP2000X100X10 MM, TO BE ADAPTED DURING ASSEMBLY
360
A0009955710
CLAMP12 - 15 MM
365
A0009918671
RETAINING CLIP
370
A0259974948
SEAL RING5/8 "
370
A0239971548
SEAL RING
375
A0068308115
PIPE LINE
385
A0068308315
PIPE LINE
387
A0009872366
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
390
A0009873066
SEALING STRIP2000X30X10 MM, TO BE ADAPTED DURING ASSEMBLY
392
A0008351961
INSPECTION GLASS
392
A0018352347
REFRIGERANT DRIER F AC , Replaced By: A0008351961
395
A0008309370
CONDENSER
397
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
999
A6288301070
REFRIGERANT CONDENSERKONVEKTA
