Mercedes A6326802607 - ZB ABDECKUNG

TOURISMO 16 RHD 632.035

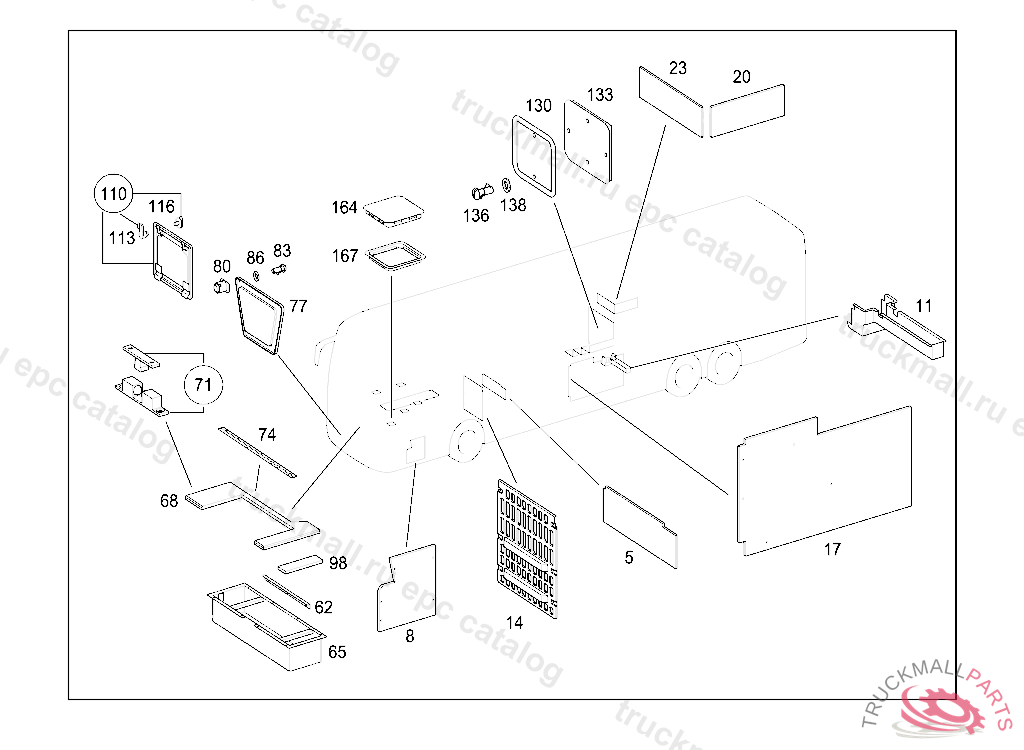

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
8
A6326820016
COVERING ELECTRICAL COMPARTMENT
11
A6326841077
COVER WATER PIPES
14
A6296860407
COVERING CROSS MEMBER 4
17
A6326845818
COVER
20
A6326840877
COVER
23
A6326840977
COVER
62
A6326875912
ATTACHMENT ANGLE BRACKET
65
A6326800658
RECESS
65
A6326800458
RECESS , Replaced By: A6326800658
68
A6326846564
FLOOR FLAP
68
A6326844364
FLOOR FLAP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2009
71
A0009883063
SNAP LOCK
74
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
77
A6296860010
PANELLING PANE WIPER
80
A0019886142
FASTENER
83
A0009915807
PIVOT PIN
86
A0039908740
WASHER6 MM
86
A0009911195
FASTENING CLIP
110
A6296801607
CLOSING COVER
113
A0009980695
ROTARY CATCH
116
A0009980595
ROTARY CATCH
130
A0006840018
COVER ABS
133
A6326802607
COVER PROTECTIVE PLATE
136
A0006830212
FASTENER SUPERFIX
138
N000125008445
WASHER PUMP TO CONSOLE
164
A0006800323
SERVICING COVER
167
A0006830006
FRAME
