Главная
›
Mercedes
›
BUS
›
TOURISMO 16 RHD
›
632.035
›
82 ELECTRICAL SYSTEM
›

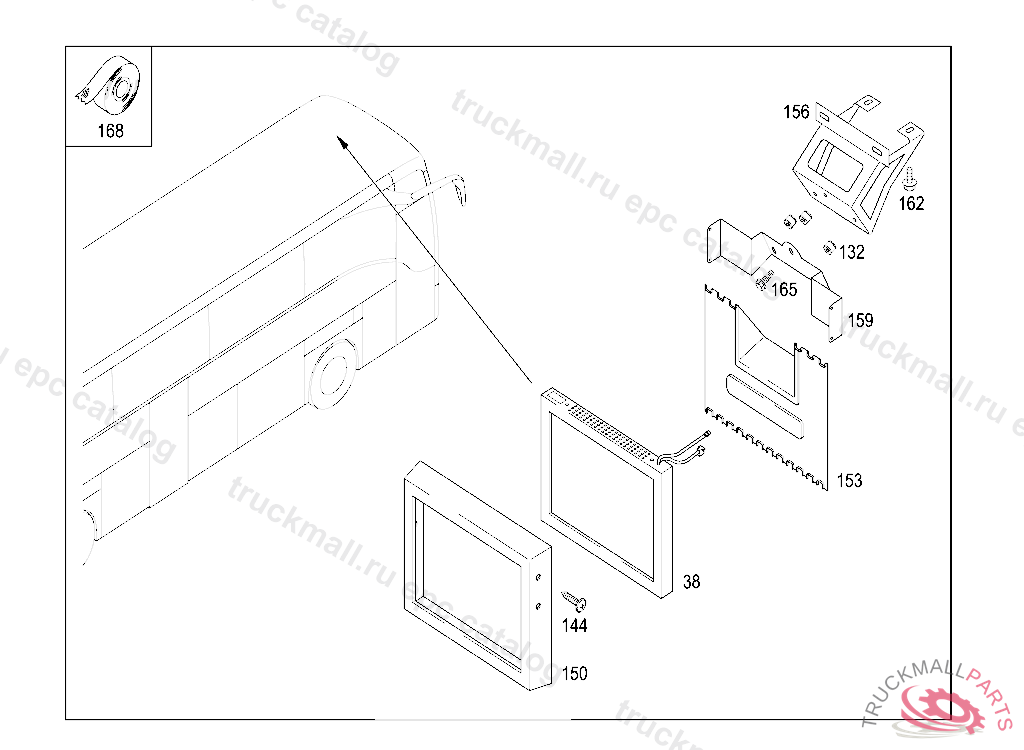

800 VIDEO-TV SYSTEM,LOUDSPEAKERS IL. 1
Mercedes A6328149725 - Облицовка монитора I задняя
TOURISMO 16 RHD 632.035
82 ELECTRICAL SYSTEM - 800 VIDEO-TV SYSTEM,LOUDSPEAKERS IL. 1
Поз.
Артикул
Описание
38
A0048208989
MONITOR15"LCD, Replaced By: A0058203489
38
A0058203489
MONITOR15"LCD, Replaced By: A0068201789
38
A0068201789
MONITOR15"LCD
132
A6329920401
BUSHING
132
A0008111036
BEARING BRACKET
144
A0009905331
SCREWM5X20
144
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
150
A6328149625
PANELLING
153
A6328149725
PANELLING
156
A6328102713
BRACKET
156
A6328141914
BRACKET , Replaced By: A6328102713
159
A6328143814
BRACKET
162
N000000001181
SCREW MOUNTING OF INSTRUMENT PANEL
162
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
165
N913023008003
NUT HORN TO BRACKET M8
165
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
168
A6136890021
BAND
168
A0089872325
HOOK STRAP. PLASTIC SECTION16MM
168
A0089872225
SOFT STRAP FLEECE STRAP,SELF-ADHESIVE, VELCROFASTENER
