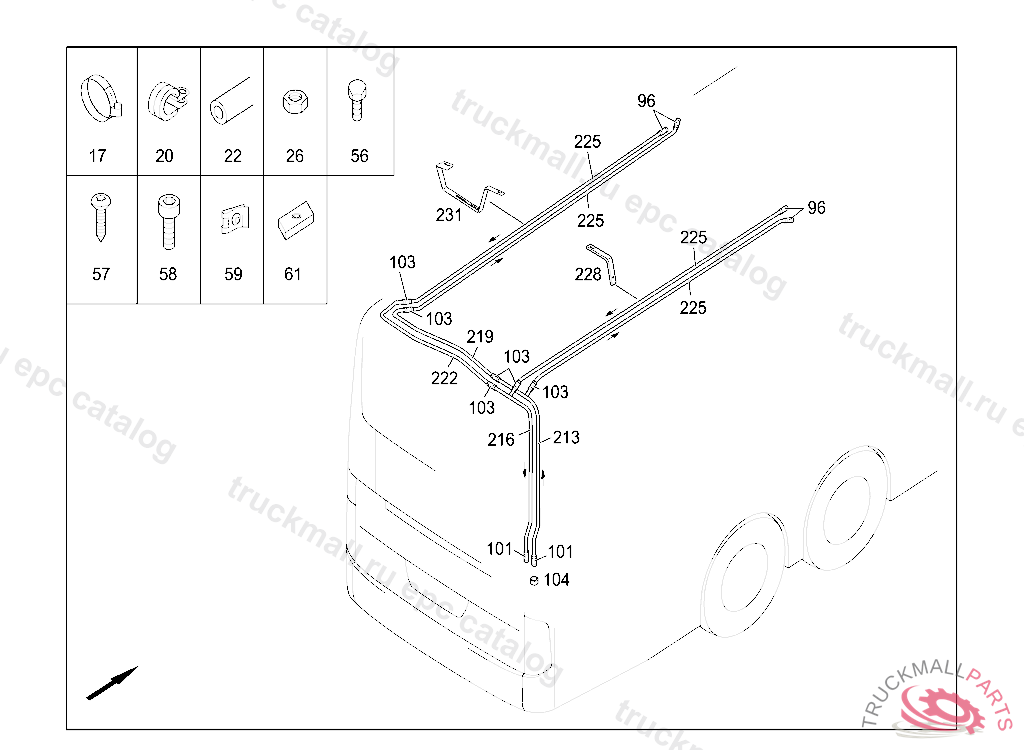

Поз.
Артикул
Описание
17
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
17
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
17
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
17
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
17
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
17
CLAMP BRAKE HOSE BRACKET
17
CLAMP LINE MOUNTING 15-18 MM,V 207570
20
CLAMP , Replaced By: A3829950701
20
CLAMP DELIVERY AND SUCTION LINES TO FRAME
20
CLAMP LINE MOUNTING
20
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
20
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
20
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
20
CLAMP LINE MOUNTING
20
CLAMP28/15, Replaced By: A0019951842
20
CLAMP22/15, Replaced By: A0019951442
20
CLAMP
20
MOUNTING CLAMP22/15
20
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
20
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
20
MOUNTING CLAMP28/15
20
CLAMP38/20
20
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
22
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
22
INSULATION DIA., D22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
22
HOSE18X36MM
22
INSULATING HOSE
26
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
26
NUT , Replaced By: N913023006001
56
SCREW BRACKET AND CLAMP M6X20
56
SCREW GGVS-COMPONENT IN BATTERY CARRIER M6 X 55
56
SCREW , Replaced By: N910143008002
58
HEXALOBULAR BOLT FASTENING OF WIRING HARNESS AT TRANSMISSION M8X16
59
LOCK. NUT , Replaced By: A0039941745
59
NUTM8
59
LOCK NUT. SPRING NUT MOUNTING PARTS
61
SLIDING NUTM8
96
HOSE COMPRESSED AIR LINE
101
HOSE
101
HOSE22X31X100MM
103
HOSE18X27X100MM
104
GROMMET
104
GROMMET
213
PIPE LINED22/1920MM
216
PIPE LINE RETURN
219
PIPE LINE1750MM
222
PIPE LINE1850MM
225
HEATER PIPED18/4640MM
228
BRACKET
231
BRACKET
