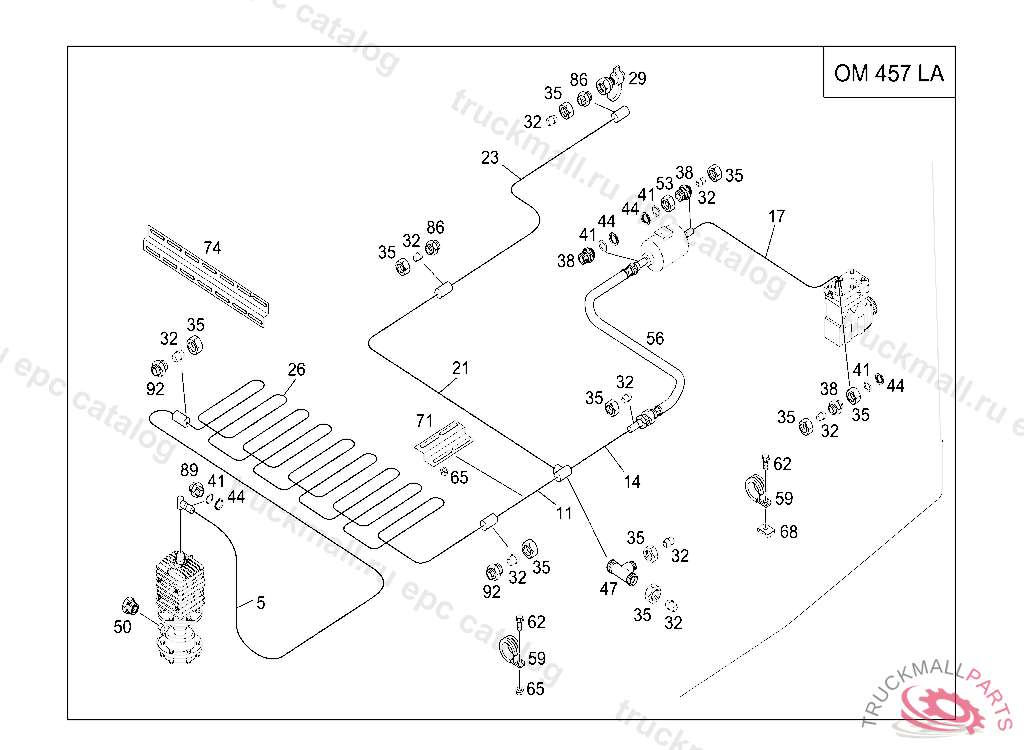

Поз.
Артикул
Описание
5
LINE1110 LG.
11
LINE1180 LG.
14
LINE150 LG.
17
LINE18X1.5X730
21
LINE10X0.75X1730
23
LINE1470MM
26
LINE5250 LG.
29
TEST CONNECTIONM16X1.5
32
GLAND
32
CUTTING RINGBL 18
35
UNION NUT
35
NUT COMPRESSED AIR LINES
38
SCREW-IN FITTING , Replaced By: A0029970271
38
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
41
SEAL RING LINE CONNECTION
41
SEAL RING LINE CONNECTION
44
THRUST RING CHECK VALVE TO AIR RESERVOIR
44
THRUST RING SUCTION LINE TO OIL PUMP
47
T-FITTINGM26X1.5/M16X1.5/M26X1.5
50
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
53
NUTM26X1.5-14H
56
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
56
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
59
CLAMP LINE MOUNTING 15-18 MM,V 207570
59
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
59
CLAMP10/15
59
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
62
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
65
NUT ENGINE MOUNTING M8
68
LOCK NUT. SPRING NUT MOUNTING PARTS
71
"Z" SECTION280LG
74
"Z" SECTION TO MOUNT FUEL LINES 430X71,5X15
86
FITTINGM 16X1.5
89
SCREW-IN FITTING CHECK VALVE,V 207570
92
FITTING BETWEEN THE LINES
