Mercedes A0009904892 - Крепёж

TOURISMO 16 RHD 632.035

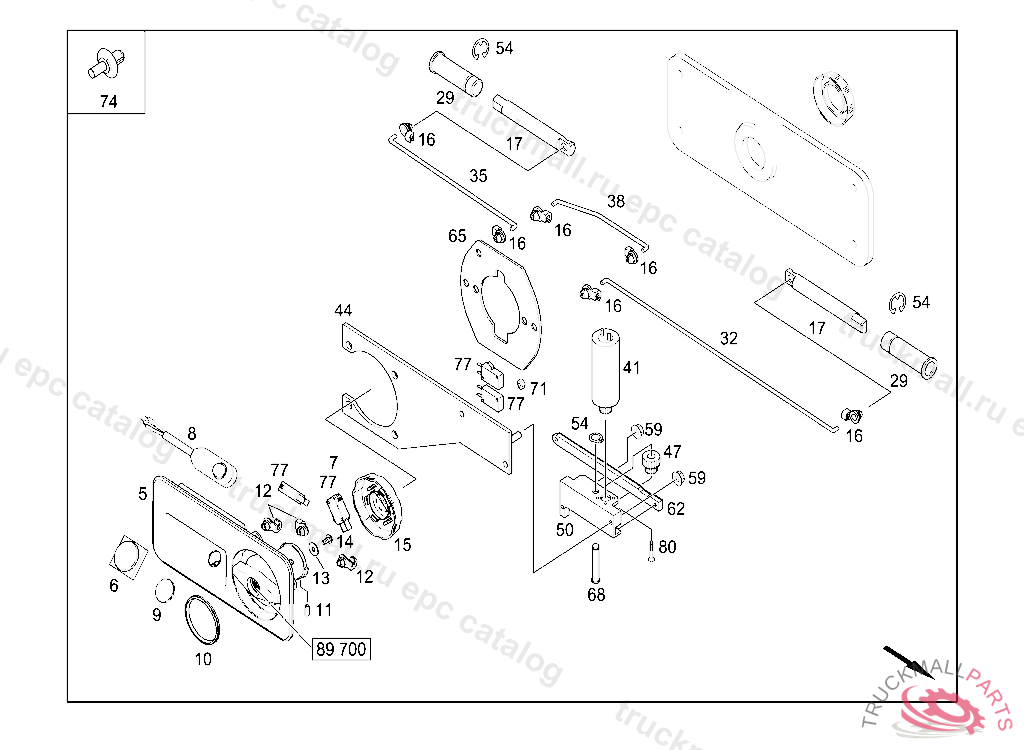

72 DOORS - 180 CLOSING SYSTEM IL. 2

Поз.
Артикул
Описание
5
A6297600160
HANDLE
5
A6327200166
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
6
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
7
A0008212592
MICRO-SWITCH
8
A0008212492
MICRO-SWITCHTYP83123
9
A6327250007
ACTUATIONTO 632 720 01 66
10
A0005510890
SEAL SUCTION LINE TO OIL TANK
11
A0009941765
SAFETY BOLTTO 632 720 01 66
12
A0009916771
RETAINING CLIP
13
N000000003738
WASHER4MM
14
N000000003307
SCREWTO 000 820 07 51
15
A6327230009
DOOR HANDLE4X8, TO 632 720 01 66
16
A0009916771
RETAINING CLIP
17
A6327230369
LOCK STRIKER
29
A6327330064
LATCH GUIDE
32
A6327330469
PULL ROD RIGHT 378MM
35
A6327330569
PULL ROD
38
A6327231469
PULL ROD TOP
41
A6297630004
MOTOR
41
A0005403688
ELECTRIC MOTOR
44
A6327600023
CONSOLE
47
A6297230117
GEAR DOUBLE GEAR
50
A0007630531
CONSOLE
54
N000471008000
LOCK RING
54
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
54
N000471005000
LOCK RING
59
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
59
N910112006001
NUT , Replaced By: N913023006001
62
A6329190127
LINK
65
A6327660019
PLATE
68
A0009915615
BALL PIVOT
71
N304032003001
NUT BRACKET MOUNTING
74
A0009914940
EXPANSION RIVET BRACKET MOUNTING
74
A0009904892
RIVET
77
A0038212351
SWITCHTO A 000 760 90 03
80
N000000002545
SCREW ROLLER BLIND M3X10
