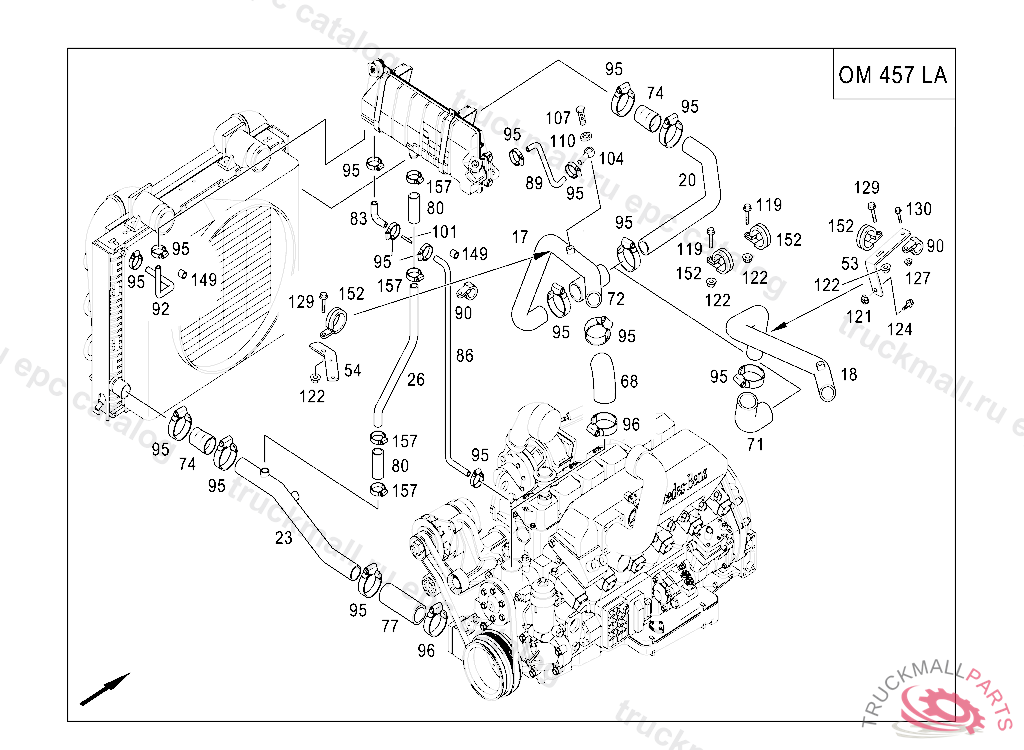

Поз.
Артикул
Описание
17
COOLING WATER PIPE
20
COOLING WATER PIPE FEED D60MM
23
COOLING WATER PIPE COOLING WATER RETURN D60MM
26
COOLING WATER PIPE38X1X60MM
53
BRACKET ALTERNATOR
54
BRACKET
68
MOLDED HOSE ARC REDUCED 90 DEGREES 70/60MM
71
MOLDED HOSE 90-DEGREE ARC D60
72
HOSE RETURN, FROM RETARDER TO ENGINE
74
MOLDED HOSE NARROWED STRAIGHT SURFACE 65/60
77
HOSE NARROWED STRAIGHT SURFACE 70/60MM
80
HOSE ,D 209702
83
MOLDED HOSE ARC REDUCED 90 DEGREES 15/10MM
86
HOSE10X19X850MM
89
HOSE
89
HOSE12X21X350MM
90
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
90
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
92
BLEED HOSE WITH CHECK VALVE 180MM
95
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
95
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
95
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
96
CLAMP
101
COOLING WATER PIPEL60MM
104
BANJO UNION12/18MM
104
BANJO UNION DE-AERATION LINE TO THERMOSTAT
107
HOLLOW SCREWA15
107
HOLLOW SCREW , Replaced By: N915036015201
110
SEAL RING VALVE TO VALVE,K 025179
119
SCREWM 10X20
121
NUT BRACKET TO SIDE MEMBER M12X1.5
122
NUT , Replaced By: N913023010002
124
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
127
NUT BRACKET TO SIDE MEMBER M12X1.5
127
NUT BRACKET TO FIRE WALL
129
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
130
SCREW BRACKET AND CLAMP M6X20
149
THROTTLE
152
CLAMP60/25RSGU
152
CLAMP60/25
152
CLAMP60/25MM, Replaced By: N000000006126
157
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
