Mercedes A6384200568 - Кронштейн

VITO 113 638.114

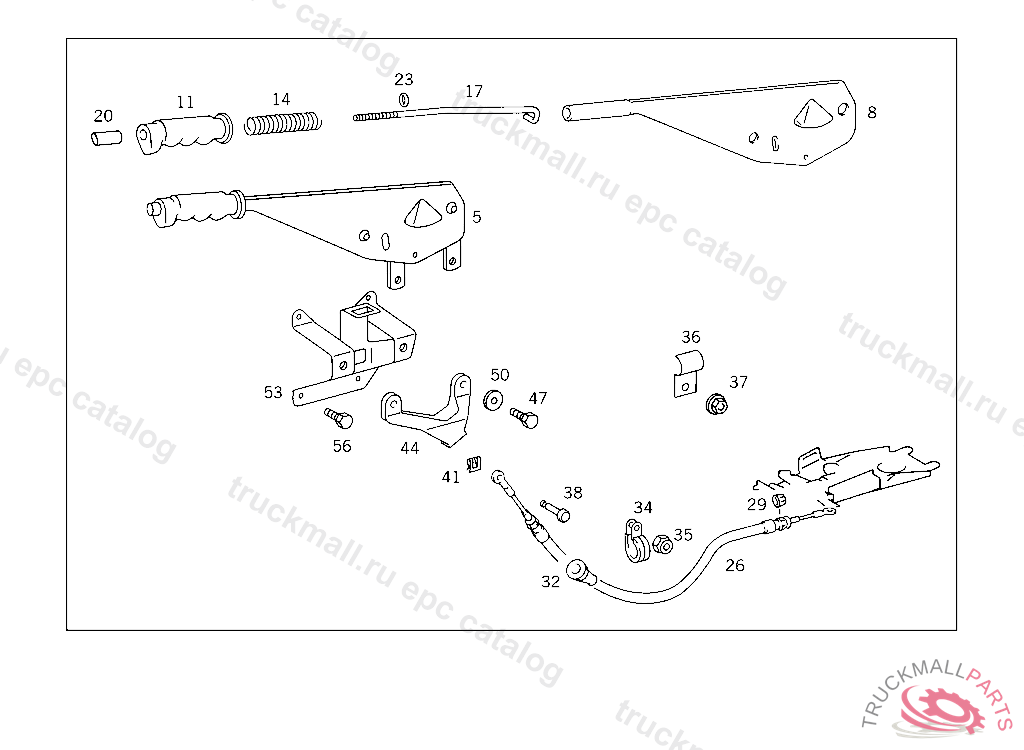

42 BRAKES - 450 PARKING BRAKE IL. 1

Поз.
Артикул
Описание
5
A6384200212
8
A6384200312
11
A6014270020
HANDLE HAND BRAKE LEVER
14
A6019930001
SPRING HAND BRAKE LEVER
17
A6014270231
ROD HAND BRAKE LEVER
20
A6014270022
FASTENER BUTTON HAND BRAKE LEVER
23
A0119975345
SEAL RING HAND BRAKE LEVER
26
A6384200785
BRAKE CABLE
26
A6384200585
29
A1244270092
CLAMPING PIECE
32
A6679970481
GROMMET
34
A4639940448
FUSE. LOCK GUIDE WHEEL ROTAT. SPEED SENSOR WIRES AND MOUNT. FOR TRANSV. FRAME PIPE
34
N916016012211
CLAMP OIL LINE TO BRACKET
35
N913004006001
NUT PUMP TO BRACKET
36
N072571001025
CLAMP
37
A0039900251
NUT COVERING TO CAB FIRE WALL
38
A9014270274
41
N912007006001
CLIP CABLE TO BRACKET,5 318121
44
A6384270041
47
N304017008031
SCREW OIL PAN TO CYLINDER CRANKCASE M8X80,977282
50
A6389900240
53
A6384200368
53
A6384200568
56
N304017006016
SCREW PUMP TO BRACKET
56
N304017006053
