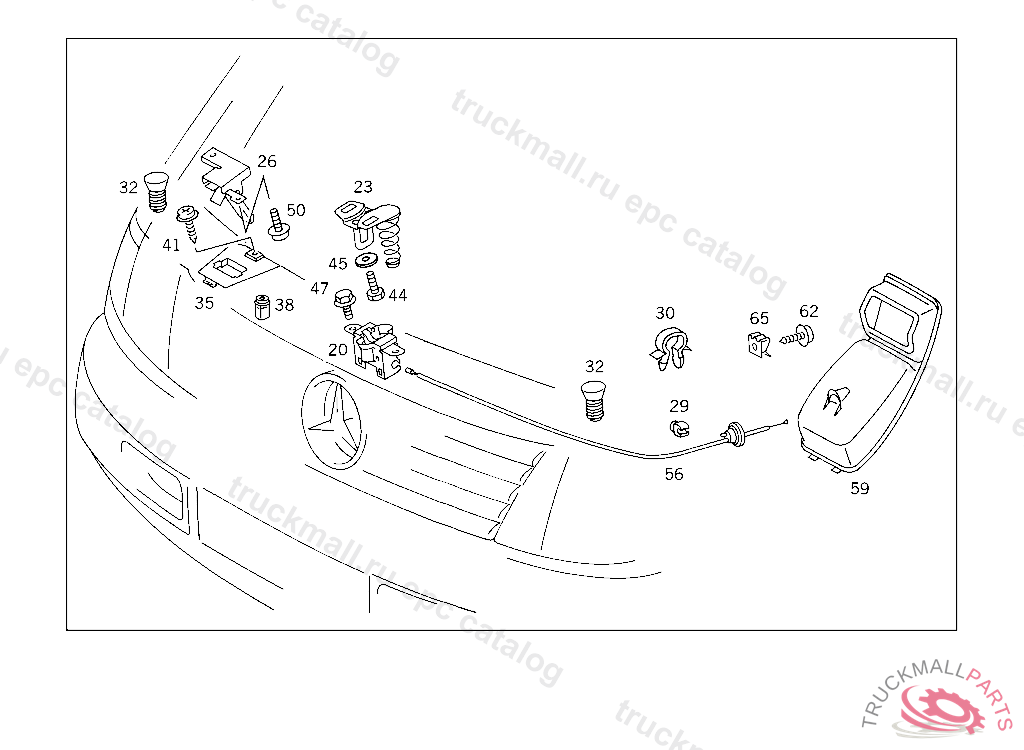

Поз.
Артикул
Описание
20
FASTENER LOWER PART
23
ENGINE HOOD CATCH TOP
26
HOOK TOP
26
HOOK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6387500448
29
CLIP CABLE
30
CLAMP , Replaced By: A0009956544
32
STOP ENGINE HOOD
35
COVERING RELAY,HOOD
38
TREENAIL
38
TREENAIL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6389880925
38
TREENAIL , Replaced By: A6389881125
41
COMBINATION BOLT COVERING 4,2X16
44
SCREW COVER PLATE TO COVER PLATE M 6 X 12
45
WASHER COMPRESSED AIR LINE TO BRACKET
47
COMBINATION BOLT FASTENER TO COWL M 6X16
50
SCREW SAFETY HOOK TO ENGINE HOOD M 6X12
56
PULL RELEASE, ENGINE HOOD
59
HANDLE RELEASE, ENGINE HOOD, IIII NO.7C52II
59
62
SHEET METAL SCREW BRACKET TO SUPPORT
65
LOCK
