Mercedes N304017008021 - АВТОЗАПЧАСТЬ

VITO 113 638.114

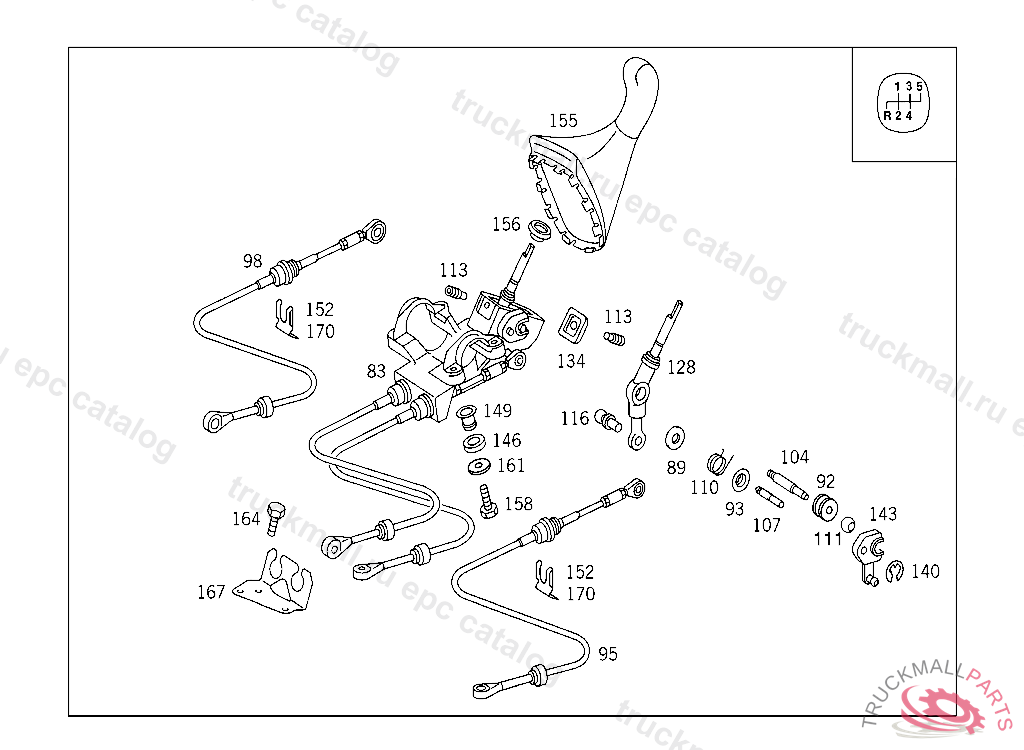

26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS IL. 3

Поз.
Артикул
Описание
83
A6382603309
GEARSHIFT MECHANISM MANUAL TRANSMISSION
83
A6382602609
SHIFT LEVER , Replaced By: A6382603309
83
A6382602409
83
A6382602309
SHIFT LEVER , Replaced By: A6382602609
89
A0002612576
WASHER
92
A0002651349
SLIDE
93
A0002611150
BUSHING
95
A0002680091
CABLE SELECTING PUSH PULL CABLE
98
A0002680191
CABLE
104
A0002646318
SHAFT
107
A0002610474
PIN
110
A0002620393
SPRING
111
A0002690244
BALL
113
A0002610574
PIN
116
A0002610006
BALL HEAD
128
A0002643124
SHIFT LEVER
134
A0002630340
FOLLOWER
140
N006799006005
LOCK PLATE , F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805
143
A0002620032
LEVER
146
A0002640084
SHIM
149
A0002610950
BUSHING
152
A6382620039
RETAINING RING OPERATING ROD TO BRACKET
155
A6382680497
155
A6382680397
BELLOWS LEATHER,NO.7C45I NO.7C65I NO.1A11I NO.8F30I NO.7C65I NO.8F30I
156
A0002680075
THREADED SLEEVE
158
N910106008007
SCREW , 018801
161
N009021008107
WASHER HEAT SHIELD TO BRACKET
164
N304017008021
SCREW PIPE CLAMP
167
A6382610140
BRACKET
170
A6382620039
RETAINING RING OPERATING ROD TO BRACKET
