Поз.
Артикул
Описание

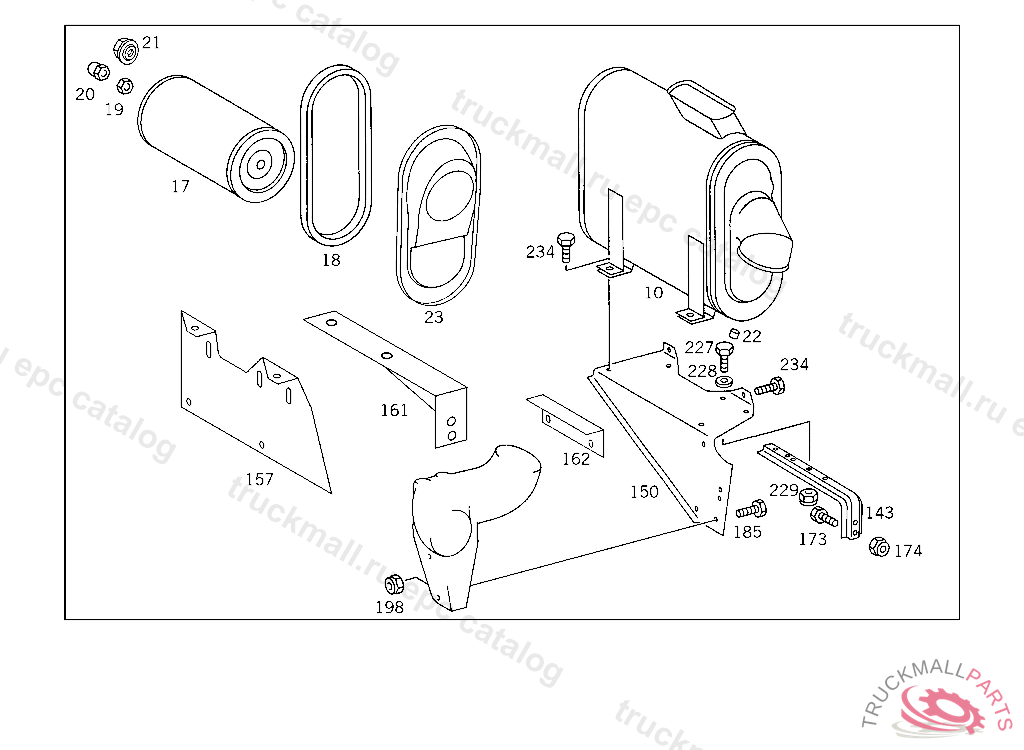

10
AIR CLEANERMANN & HUMMEL
10
AIR CLEANER"MANN & HUMMEL"
10
AIR CLEANER"MANN U. HUMMEL
10
AIR CLEANERMANN & HUMMEL
17
FILTER ELEMENT
17
FILTER ELEMENT
18
GASKET
18
GASKET
19
NUT
20
NUT
21
NUT
22
WASHER FELT
23
COVER
23
COVER
23
COVER
23
FILTER BOWL
23
COVER , Replaced By: A0010942703
143
SUPPORT AIR CLEANER
143
SUPPORT AIR CLEANER
143
SUPPORT AIR CLEANER
150
SUPPORT AIR CLEANER
150
SUPPORT AIR CLEANER
150
SUPPORT AIR CLEANER
150
SUPPORT AIR CLEANER
150
SUPPORT AIR CLEANER
157
SUPPORT AIR CLEANER,K 250961
157
SUPPORT AIR CLEANER,K 250961
161
BRACKET AIR CLEANER,K 250961
161
BRACKET AIR CLEANER,K 250961
162
ANGLE AIR CLEANER
162
ANGLE AIR CLEANER
173
SCREW BRACKET TO CAB CONSOLE,K 035197
173
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
173
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
173
SCREW , Replaced By: N308676014020
173
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
173
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
173
SCREW , Replaced By: N910105014010
173
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
174
NUT PARTICLE FILTER M14
174
NUT PARTICLE FILTER M14
174
NUT BRACKET TO SIDE MEMBER
174
NUT , Replaced By: N910113014001
174
NUT PARTICLE FILTER M14
185
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
185
SCREW EXHAUST PIPE TO BRACKET
185
SCREW EXHAUST PIPE TO BRACKET
185
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
185
SCREW CONSOLE TO SIDE MEMBER
185
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
185
SCREW , Replaced By: N308676012012
185
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
198
NUT STRAP TO SUPPORT
198
NUT SUPPORT TO SIDE MEMBER
198
NUT STRAP TO SUPPORT
227
WASHER BRACKET TO COVERING
227
WASHER , Replaced By: N009021010209
227
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
227
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
227
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
227
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
227
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
227
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
SCREW END PIECE TO EXHAUST PIPE M 10X25
228
WASHER STRUT TO CROSS MEMBER
228
WASHER , Replaced By: N007349010007
229
NUT STRAP TO BRACKET
229
NUT STRAP TO BRACKET
229
NUT , Replaced By: N910113010000
234
SCREW END PIECE TO EXHAUST PIPE M 10X25
234
SCREW END PIECE TO EXHAUST PIPE M 10X25
234
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
234
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
234
SCREW END PIECE TO EXHAUST PIPE M 10X25
234
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
CONSOLE CAB SUSPENSION,REAR
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
BUFFER ,5 350513
999
SHIM SUPPORT TO SIDE MEMBER
999
SUPPORT , Replaced By: A6575200230
999
MOUNTING BOW BOOT
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
ANGLE
999
SCREW BRACKET TO SIDE MEMBER
