Поз.
Артикул
Описание

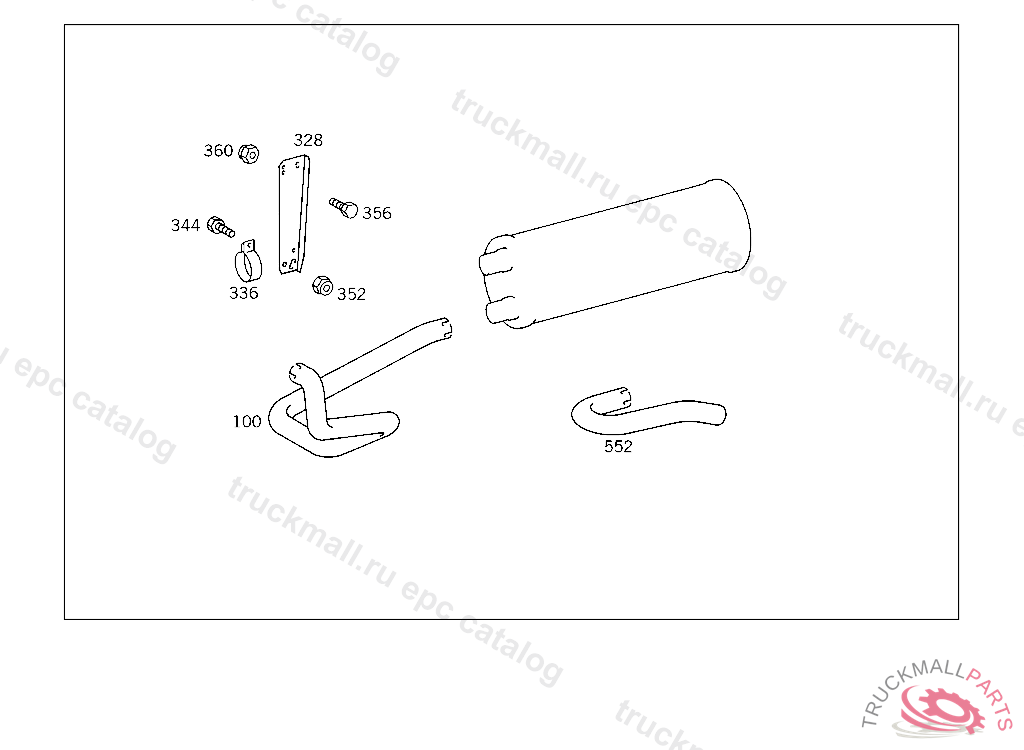

100
EXHAUST PIPE FRONT
100
EXHAUST PIPE FRONT
328
BRACKET AT CROSS MEMBER
336
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
336
CLAMP , Replaced By: N071555100501
344
SCREW , Replaced By: N304017008034
344
SCREW BRACKET TO CROSS CONNECTION STRUT
352
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
352
NUT , Replaced By: N913004008001
352
NUT , Replaced By: N910113010000
352
NUT STRAP TO BRACKET
356
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
360
NUT BRACKET TO SIDE MEMBER
360
NUT , Replaced By: N910113014001
552
END PIECE
552
END PIECE (TAIL PIPE)
552
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR FRONT,5 955117K 110091
999
CONNECTOR FRONT,K 110092
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET BRACKET TO CROSS MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST PIPE EXHAUST MUFFLER,RIGHT FRONT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 468859
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 468859
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET ,5 765950, Replaced By: A6174911841
999
END PIECE (TAIL PIPE)
999
BASE PLATE BRACKET TO SIDE MEMBER
999
END PIECE TAIL PIPE,FRONT,K 027551
999
CLAMP EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
CONNECTOR ,5 957691
999
END PIECE
999
END PIECE
999
BRACKET
999
END PIECE LEFT
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 953233K 035196
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
EXHAUST PIPE FRONT
999
END PIECE (TAIL PIPE)
999
END PIECE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
SCREW BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
