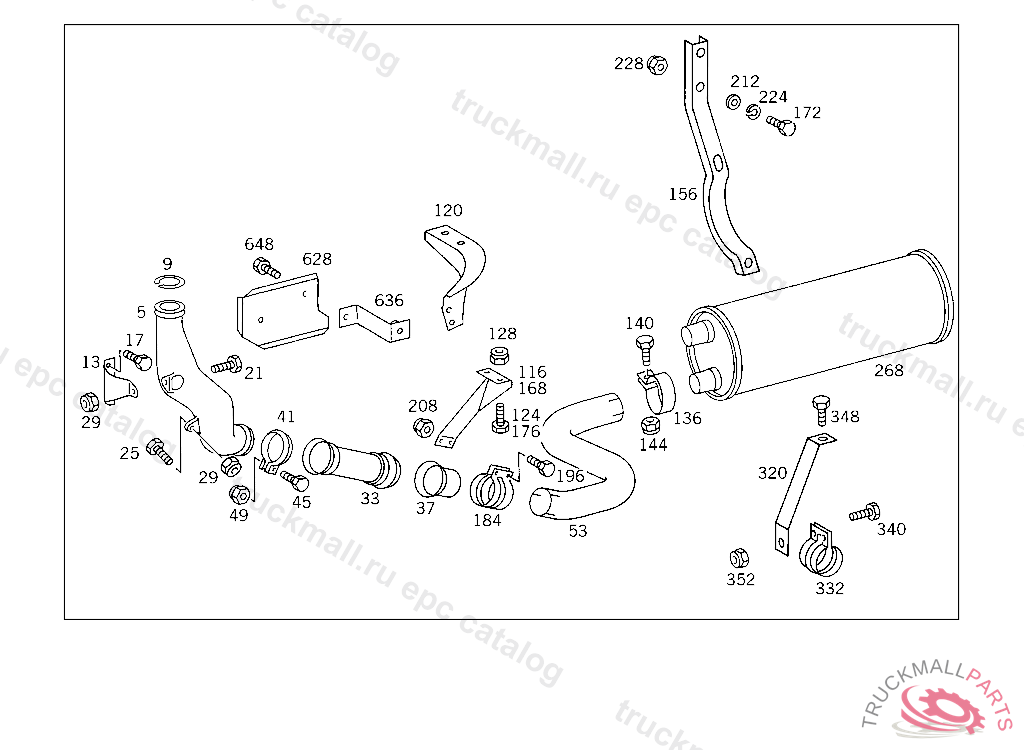

Поз.
Артикул
Описание
5
FRONT EXHAUST PIPE
9
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
13
BRACKET FRONT EXHAUST PIPE TO TIMING CASE,TOP
17
SCREWM 16X25
17
SCREW , Replaced By: N304017016011
21
SCREW SUPPORT TO CROSS MEMBER M 10X28
25
SCREW END PIECE TO EXHAUST PIPE M 10X25
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
33
FLEXIBLE METAL TUBE FRONT LEFT
37
COLLAR (SLIDING COLLAR)
41
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
45
SCREW , Replaced By: N304017008018
45
SCREW SUPPORT TO FENDER
49
NUT , Replaced By: N913004008001
49
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
EXHAUST PIPE FRONT,5 957690
53
EXHAUST PIPE FRONT,5 957691K 110091
53
EXHAUST PIPE FRONT
53
EXHAUST PIPE FRONT,REAR PART,5 953232
53
EXHAUST PIPE FRONT,REAR PART,5 953233
116
BRACKET AT SIDE MEMBER
116
BRACKET FRONT EXHAUST PIPE,LEFT
120
BRACKET LEFT
124
HEXAGON HEAD BOLT , Replaced By: A0029902704
124
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
124
SCREW , Replaced By: N308676012013
128
NUT , Replaced By: N910113012003
128
NUT , Replaced By: N910113014001
128
NUT BRACKET TO SIDE MEMBER
128
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
136
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
136
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
136
CLAMP , Replaced By: N071555100501
140
SCREW , Replaced By: N304017010002
140
SCREW BRACKET TO SIDE MEMBER
144
NUT , Replaced By: N910113010000
144
NUT STRAP TO BRACKET
156
BRACKET EXHAUST MUFFLER
156
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524903740
168
BRACKET AT SIDE MEMBER
172
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
176
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
176
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
176
HEXAGON HEAD BOLT , Replaced By: A0029902704
176
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
176
SCREW , Replaced By: N308676012013
184
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
184
CLAMP EXHAUST PIPE TO BRACKET
196
SCREW BRACKET TO SIDE MEMBER
196
SCREW , Replaced By: N304017010002
208
NUT , Replaced By: N910113010000
208
NUT STRAP TO BRACKET
212
WASHER BRACKET TO SIDE MEMBER,5 703114
224
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
228
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
228
NUT , Replaced By: N910113012003
228
NUT , Replaced By: N910113014001
228
NUT BRACKET TO SIDE MEMBER
268
EXHAUST MUFFLER
320
BRACKET AT SIDE MEMBER,5 957690
332
CLAMP EXHAUST PIPE TO BRACKET
340
SCREW END PIECE TO EXHAUST PIPE M 10X25
348
SCREW BRACKET TO SIDE MEMBER
348
SCREW , Replaced By: N304017010002
352
NUT , Replaced By: N913004008001
352
NUT , Replaced By: N910113010000
352
NUT STRAP TO BRACKET
352
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
628
PROTECTIVE PLATE TAIL PIPE
636
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
648
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
648
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
648
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
648
SCREW , Replaced By: N304017008039
648
SCREW , Replaced By: N304017008016
648
SCREW , Replaced By: N304017010002
648
SCREW , Replaced By: N308676012012
648
SCREW BRACKET TO SIDE MEMBER
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR FRONT,5 955117K 110091
999
CONNECTOR FRONT,K 110092
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET BRACKET TO CROSS MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST PIPE EXHAUST MUFFLER,RIGHT FRONT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 468859
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 468859
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET ,5 765950, Replaced By: A6174911841
999
END PIECE (TAIL PIPE)
999
BASE PLATE BRACKET TO SIDE MEMBER
999
END PIECE TAIL PIPE,FRONT,K 027551
999
CLAMP EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
CONNECTOR ,5 957691
999
END PIECE
999
END PIECE
999
BRACKET
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 953233K 035196
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
EXHAUST PIPE FRONT
999
END PIECE (TAIL PIPE)
999
END PIECE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
