Mercedes N304017010047 - Винт M 10 X 35

1827 S 652.151

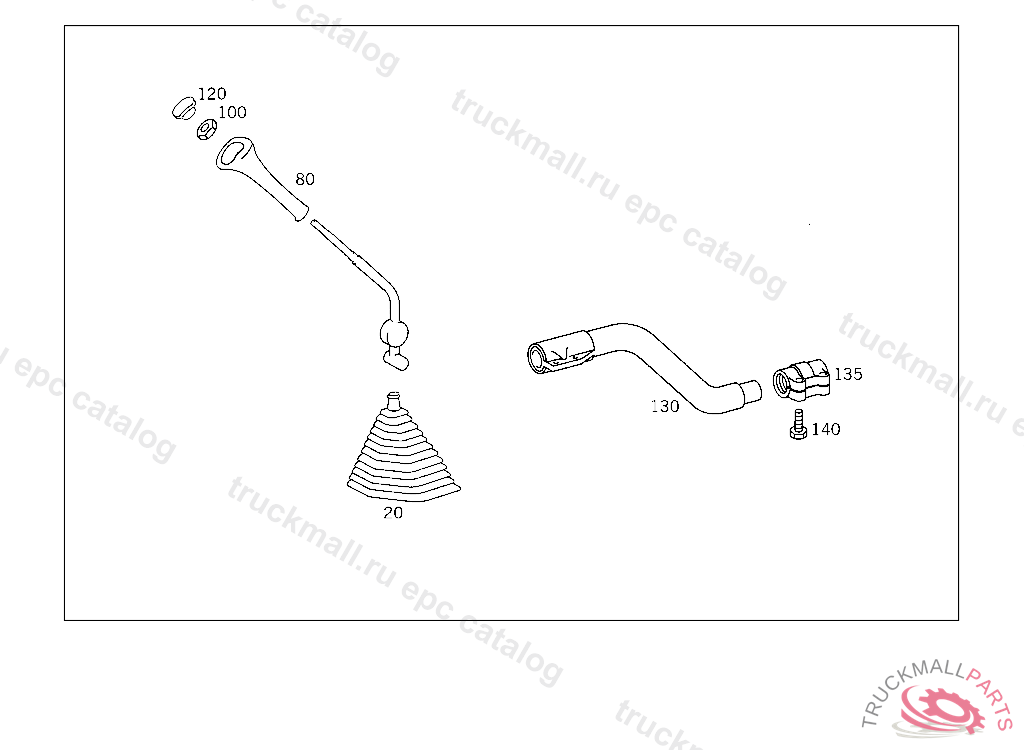

26 TRANSMISSION - 001 GEARSHIFT,TRANSMISSION

Поз.
Артикул
Описание
20
A6522680197
BOOT SHIFT LEVER
80
A6202680042
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
100
N000934010015
NUT , Replaced By: N308673010000
100
N308673010000
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
120
A6202680257
COVER
130
A6522601733
SHIFTING ROD
130
A6522601633
SHIFTING ROD
135
A3852680188
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
140
N304017010047
SCREW CONNECTOR TO REAR SHIFTING ROD
140
N000933010202
SCREW , Replaced By: N304017010047
999
A0012606357
VALVE SHIFT LEVER HERION
999
A3604280243
ANGLE LINE MOUNTING
999
A3816820086
BRACKET LINE MOUNTING
999
A6202680028
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
A6552600462
BRACKET LINE MOUNTING
