Поз.
Артикул
Описание

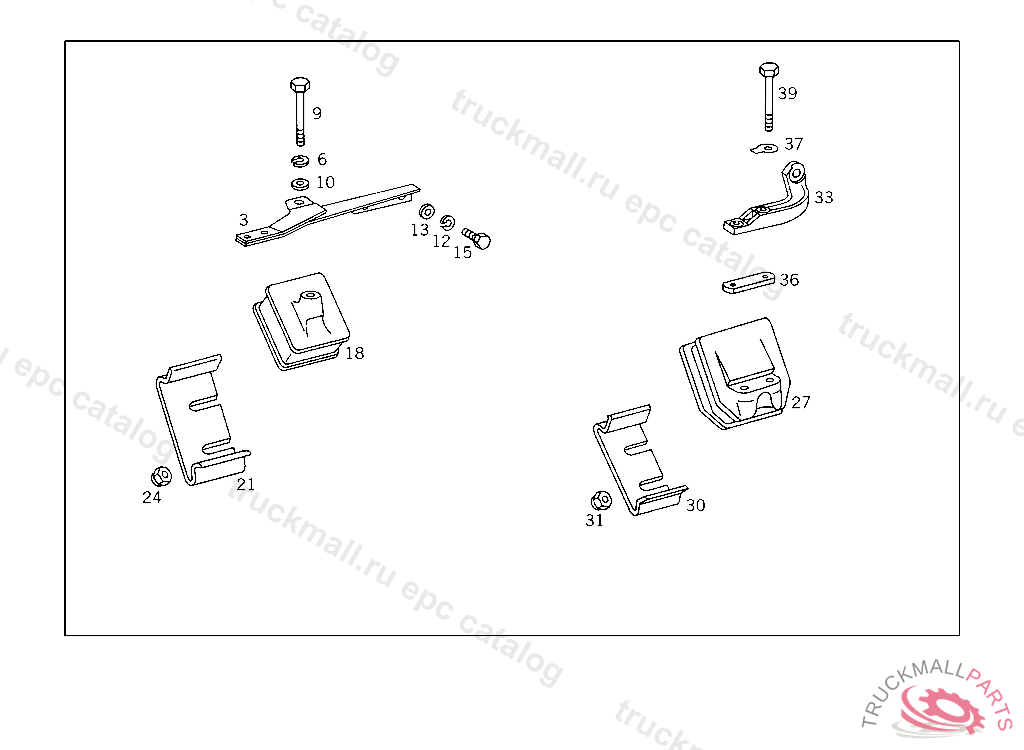

3
SUPPORT LEFT, 10/20 318.051,052,053,065,066,067,070,072 784043 10/20 318.056,057,090,092 784425 50/60 785369
3
SUPPORT LEFT
3
SUPPORT RIGHT, 10/20 318.051,052,053,065,066,067,070,072 784043 10/20 318.056,057,090,092 784425 50/60 785369
3
SUPPORT RIGHT
6
LOCK WASHERROCKINGER TYP 59 G140,59 G150
9
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
10
WASHER CONSOLE TO FRAME
12
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
13
WASHER , Replaced By: N000125008443
13
WASHER EXHAUST MUFFLER TO STRAP
15
SCREW , Replaced By: N304017008021
15
SCREW PIPE CLAMP
15
SCREW , Replaced By: N304017008034
15
SCREW BRACKET TO CROSS CONNECTION STRUT
18
RUBBER MOUNTING ENGINE FRONT SUSPENSION
21
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
24
NUT PLATFORM MOUNTING
24
NUT AIR RESERVOIR TO FRAME
27
RUBBER MOUNTING
30
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
31
NUT PLATFORM MOUNTING
33
BEARING BRACKET ENGINE TO ENGINE REAR MOUNTING,856854
33
BEARING BRACKET ENGINE REAR SUSPENSION,856855-4 282707
36
LOCK
37
LOCK PLATE ,464616
39
SCREW , Replaced By: N308676014008
39
SCREW MOUNTING TO CONSOLE M 14X35
39
SCREW STEERING SUPPORT TO FRAME M 14X50
39
SCREW ENGINE TO ENGINE REAR MOUNTING,856854
39
SCREW STEERING SUPPORT TO FRAME M 14X55
