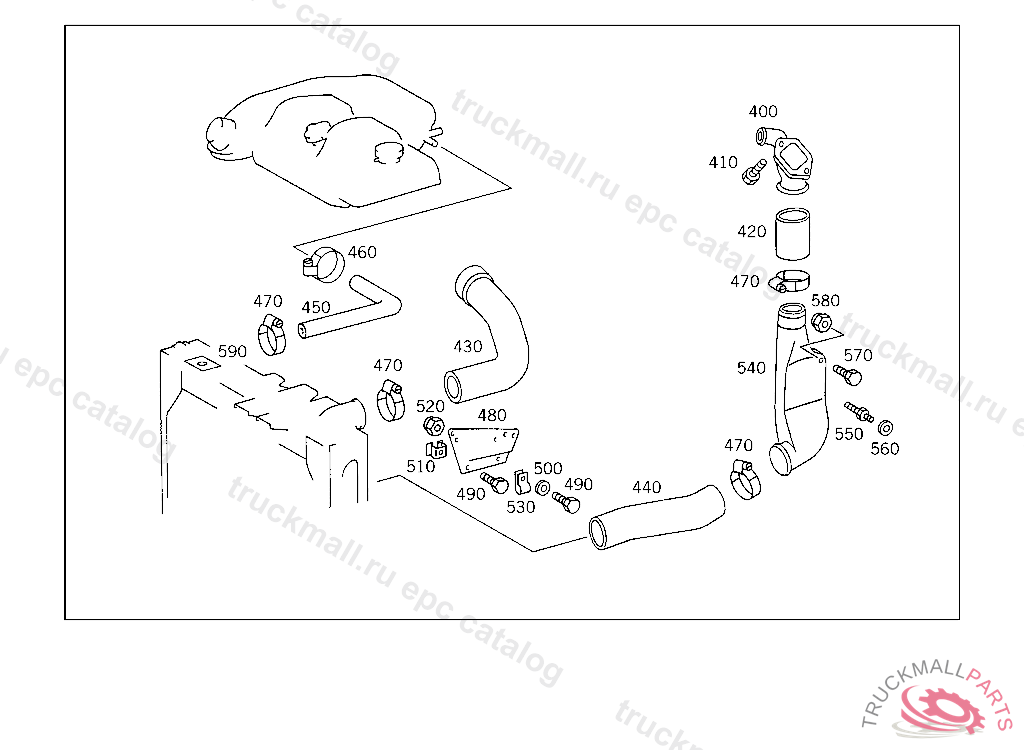

Поз.
Артикул
Описание
400
CONNECTOR AT WATER PUMP
400
CONNECTOR FOR SCREW FITTING
410
SCREW END PIECE TO EXHAUST PIPE M 10X25
410
SCREW STRAP TO BRACKET
420
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
430
HOSE FROM RADIATOR TO THERMOSTAT
430
HOSE FROM RADIATOR TO THERMOSTAT
440
HOSE FROM RADIATOR OUTLET TO WATER PUMP
440
HOSE FROM RADIATOR OUTLET TO WATER PUMP
450
HOSE FROM EXPANSION TANK TO ENGINE
460
CLAMP , Replaced By: N916017011001
460
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
470
CLAMP , Replaced By: N000000000674
470
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
480
BRACKET , NOT USED
480
BRACKET , NOT USED
490
SCREW , Replaced By: N304017006016
490
SCREW PUMP TO BRACKET
500
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
500
WASHER COMPRESSED AIR LINE TO BRACKET
510
NUT RETAINER , Replaced By: A0019906791
510
NUT RETAINER LICENSE PLATE TO BRACKET
520
NUT , Replaced By: N913004008001
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
530
CLAMP , Replaced By: A3609951201
530
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
540
PIPE ELBOW , Replaced By: A6555010756
540
PIPE ELBOW AT WATER PUMP,5 1935955 510517
540
PIPE ELBOW AT WATER PUMP,5 510518
540
PIPE ELBOW AT WATER PUMP,5 510518
540
PIPE ELBOW AT WATER PUMP,5 510518
540
PIPE ELBOW FOR SCREW FITTING
550
PIN PIPE ELBOW TO BRACKET,K 023462
560
WASHER , Replaced By: A1894660751
560
SPACER RING PIPE ELBOW TO BRACKET,K 023462
570
SCREW , Replaced By: N304017010030
570
SCREW , Replaced By: N304017010053
570
SCREW PIPE ELBOW TO BRACKET M 10X50
580
NUT , Replaced By: N910113010000
580
NUT STRAP TO BRACKET
590
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
590
PLATE FROM EXPANSION TANK TO RADIATOR
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
CLAMP FEED LINE TO THERMOSTAT
999
RUBBER MOUNTING RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
RADIATOR , Replaced By: A6525010301
999
HOSE FROM RADIATOR TO THERMOSTAT
999
RADIATOR ,5 523342
999
HOSE DE-AERATION PIPE TO EXPANSION TANK
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
RADIATOR , Replaced By: A6505010701
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM EXPANSION TANK TO WATER PUMP
999
HOSE FROM EXPANSION TANK TO RADIATOR
999
RADIATOR WITH SCREW FITTING,5 501912
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
FAN SHROUD RADIATOR
999
FAN SHROUD RADIATOR
999
SCREW , Replaced By: A6739900032
999
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
999
BREATHER PIPE ENGINE BREATHING
999
BRACKET FEED LINE TO THERMOSTAT
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
