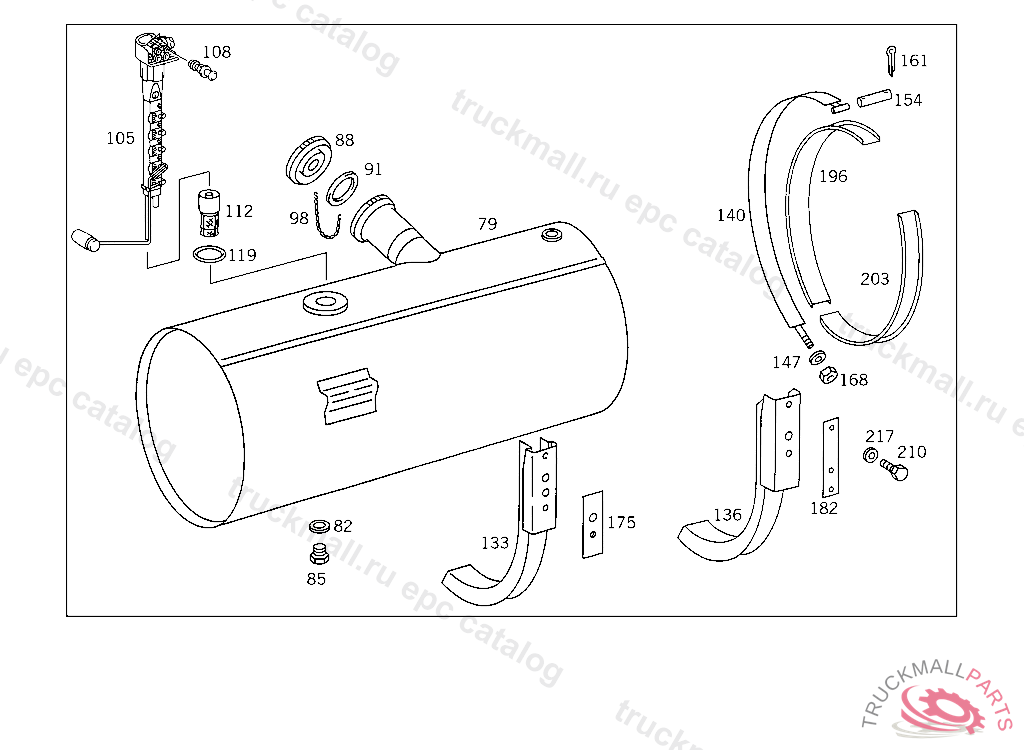

Поз.
Артикул
Описание
79
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
82
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
85
SCREW PLUG AT TANK
88
FILLER CAP
88
FILLER CAP , Replaced By: A0004700305
91
SEAL RING
98
CHAIN FILLER CAP
105
SENDER UNIT FUEL GAUGE,K 169123
105
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
108
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
112
FUEL STRAINER FUEL TANK,K 169123
112
FUEL STRAINER FUEL TANK,K 169122
119
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
119
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
133
SUPPORT FUEL TANK
133
SUPPORT FUEL TANK
133
SUPPORT FUEL TANK
133
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
133
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
133
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
133
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
133
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
136
SUPPORT ADDITIONAL TANK,FRONT,K 017219
136
SUPPORT ADDITIONAL TANK,FRONT
140
STRAP FUEL TANK
147
WASHER
154
PIN STRAP TO SUPPORT
161
COTTER PIN STRAP TO SUPPORT
168
NUT STRAP TO SUPPORT
175
SHIM SUPPORT TO SIDE MEMBER
175
SHIM , Replaced By: A3974750084
182
SHIM SUPPORT TO SIDE MEMBER
182
SHIM , Replaced By: A3834750384
196
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
196
PAD FUEL TANK TO CONSOLE
203
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
203
PAD , Replaced By: A3634750220
210
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
210
SCREW , Replaced By: N308676014020
217
WASHER BRACKET TO SIDE MEMBER,5 703114
999
CLAMP FUEL LINE TO BRACKET
999
RUBBER PAD FUEL LINE TO BRACKET
999
CLAMP , Replaced By: A3129952420
999
CLAMP , Replaced By: A1109950401
999
LINE , Replaced By: A3404701265, +001A3054760126, +001N916017011000
999
LINE , Replaced By: A3404701265, +001A3054760126, +001N916017011000
