Поз.
Артикул
Описание

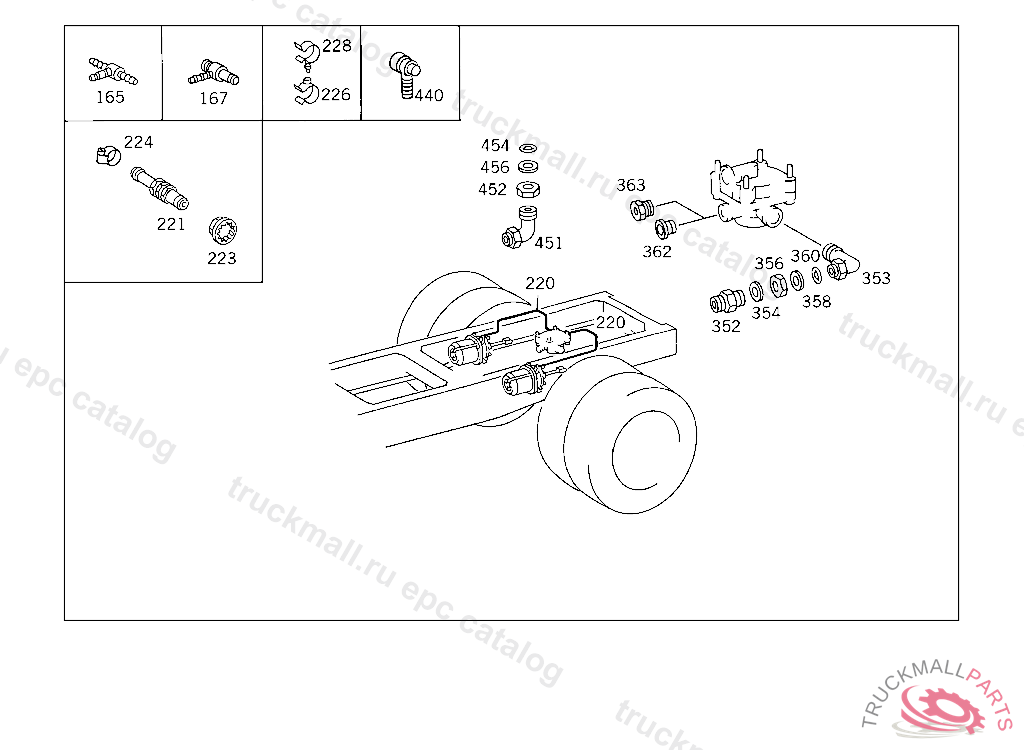

165
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
167
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
167
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
167
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
167
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9 MM,TO M 22
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
220
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
221
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
221
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
221
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
223
LOCK REAR AXLE BRAKE HOSE,K 181360
223
LOCK REAR AXLE BRAKE HOSE,K 181360
223
LOCK REAR AXLE BRAKE HOSE,K 181360
224
CLAMP HOSE TO FITTING AND TO OIL TANK
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
224
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
226
CLAMP BRAKE HOSE
226
CLAMP BRAKE HOSE
226
CLAMP BRAKE HOSE
228
CLAMP BRAKE HOSE
228
CLAMP BRAKE HOSE
228
CLAMP BRAKE HOSE
352
FITTING SHUTTLE VALVE,CONNECTION: "20"
352
FITTING SHUTTLE VALVE,CONNECTION: "20"
353
ELBOW FITTING , Replaced By: A0004294638
353
ELBOW FITTING , Replaced By: A0004294638
353
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
353
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
353
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
354
SEAL RING LINE CONNECTION
354
SEAL RING LINE CONNECTION
356
NUT CHECK VALVE TO AIR RESERVOIR
356
NUT CHECK VALVE TO AIR RESERVOIR
356
NUT CHECK VALVE TO AIR RESERVOIR
356
NUT CHECK VALVE TO AIR RESERVOIR
358
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
358
THRUST RING CHECK VALVE TO AIR RESERVOIR
358
THRUST RING CHECK VALVE TO AIR RESERVOIR
358
THRUST RING CHECK VALVE TO AIR RESERVOIR
360
O-RING CHECK VALVE TO AIR RESERVOIR
360
O-RING CHECK VALVE TO AIR RESERVOIR
360
O-RING CHECK VALVE TO AIR RESERVOIR
362
SCREW PLUG , Replaced By: N000908022011
362
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
362
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
363
SCREW. UNION SCREW LINE CONNECTION
363
SCREW. UNION SCREW LINE CONNECTION
440
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
440
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
451
ELBOW FITTING , Replaced By: A0004294638
451
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
451
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
451
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
451
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
452
NUT CHECK VALVE TO AIR RESERVOIR
452
NUT CHECK VALVE TO AIR RESERVOIR
452
NUT CHECK VALVE TO AIR RESERVOIR
452
NUT CHECK VALVE TO AIR RESERVOIR
452
NUT CHECK VALVE TO AIR RESERVOIR
454
O-RING CHECK VALVE TO AIR RESERVOIR
454
O-RING CHECK VALVE TO AIR RESERVOIR
454
O-RING CHECK VALVE TO AIR RESERVOIR
454
O-RING CHECK VALVE TO AIR RESERVOIR
456
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
456
THRUST RING CHECK VALVE TO AIR RESERVOIR
456
THRUST RING CHECK VALVE TO AIR RESERVOIR
456
THRUST RING CHECK VALVE TO AIR RESERVOIR
456
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW-IN FITTING , Replaced By: A0029978472
999
SCREW EXHAUST BRAKE SEPARATION POINT
999
TANK RECESS. T-FITTING LINE CONNECTION
999
BRAKE HOSE REAR AXLE
999
FITTING , Replaced By: A0029905971
999
T-FITTING LINE CONNECTION
999
T-FITTING HOSE WIDTH, 6 MM
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
CONNECTOR SHUTTLE VALVE TO BRAKE CYLINDER
