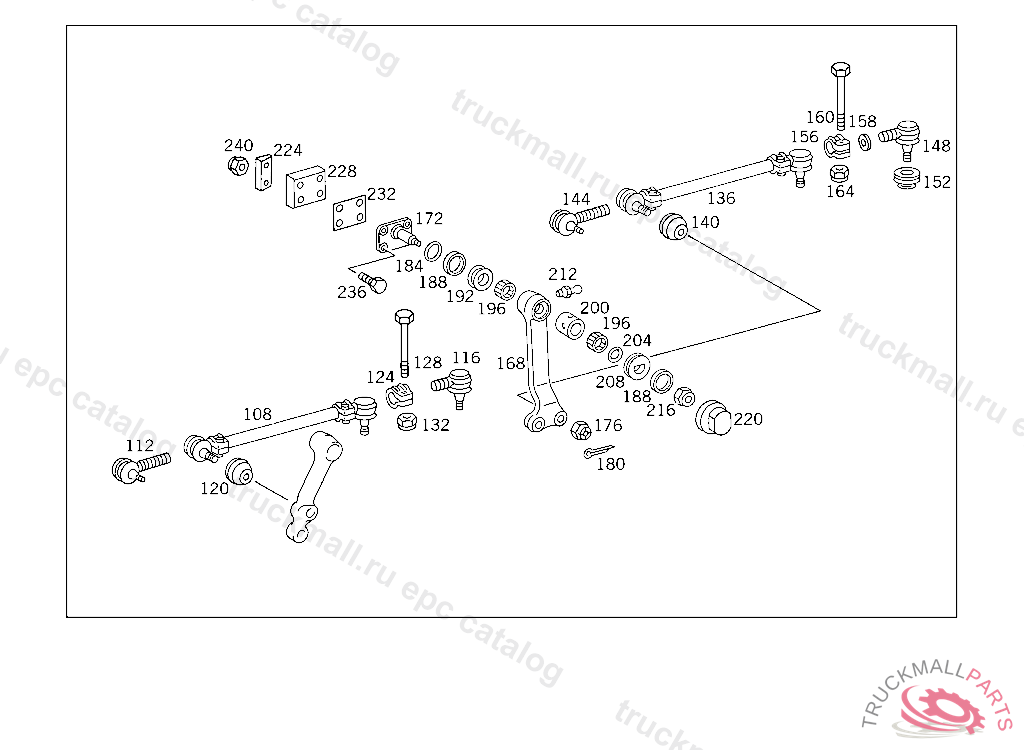

Поз.
Артикул
Описание
108
DRAG LINK FROM STEERING INTERMEDIATE BRACKET II TO STEERED AXLE
112
BALL JOINT L.H. THREAD TRW
112
DRAG LINK END , Replaced By: A0014602348, +001A0019905451
112
DRAG LINK END , Replaced By: A0014607848
112
DRAG LINK END L.H. THREAD TRW, Replaced By: A0024600348
116
DRAG LINK END , Replaced By: A0014600848
116
DRAG LINK END , Replaced By: A0014602248
116
DRAG LINK END , Replaced By: A0014607748
116
DRAG LINK END R.H. THREAD EHRENREICH
120
BOOT DRAG LINK
124
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
128
SCREW , Replaced By: N308676012017
128
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
132
NUT SUPPORT TO SIDE MEMBER
136
DRAG LINK FROM STEERING SUPPORT II TO STEERING SUPPORT III
136
DRAG LINK TUBE FROM STEERING INTERMEDIATE BRACKET III TO STEERED AXLE LEMFOERDER
136
DRAG LINK FROM STEERING SUPPORT II TO STEERING SUPPORT III LEMFOERDER
136
DRAG LINK FROM STEERING SUPPORT II TO STEERING SUPPORT III EHRENREICH
140
BOOT
144
BALL JOINT L.H. THREAD TRW
144
DRAG LINK END , Replaced By: A0014602348, +001A0019905451
144
DRAG LINK END , Replaced By: A0014601448, +001A0019905451
144
DRAG LINK END , Replaced By: A0014602348
144
DRAG LINK END , Replaced By: A0014607848
144
DRAG LINK END L.H. THREAD TRW, Replaced By: A0024600348
148
DRAG LINK END , Replaced By: A0014600848
148
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
148
DRAG LINK END , Replaced By: A0014602248
148
DRAG LINK END , Replaced By: A0014602248
148
DRAG LINK END , Replaced By: A0014607748
148
DRAG LINK END R.H. THREAD
148
DRAG LINK END R.H. THREAD
148
DRAG LINK END R.H. THREAD EHRENREICH
152
BOOT DRAG LINK END
152
BOOT DRAG LINK
156
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
156
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
158
SCREW COLLAR DRAG LINK END TO DRAG LINK
160
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
160
SCREW , Replaced By: N308676012017
164
NUT SUPPORT TO SIDE MEMBER
168
INTERMEDIATE LEVER"III"
168
STEERING INTERMEDIATE ARM , Replaced By: A6574630110
168
INTERMEDIATE LEVER"III"
168
STEERING INTERMEDIATE ARM STEERING SUPPORT III
168
INTERMEDIATE LEVER"II"
172
STEERING SUPPORT INTERMEDIATE LEVER III
172
STEERING SUPPORT INTERMEDIATE LEVER II
176
NUT DRAG LINK TO LEVER
176
NUT DRAG LINK END M 24X1.5
176
NUT DRAG LINK TO LEVER
180
COTTER PIN DRAG LINK TO LEVER
184
SEAL RING INSIDE TO 622 463 01 10
184
SEAL RING INSIDE
188
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
192
THRUST WASHER , Replaced By: A6574630162
192
THRUST WASHER INSIDE
196
NEEDLE BEARING INSIDE AND OUTSIDE
200
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
200
SPACER TUBE INSIDE
204
SEAL RING OUTSIDE TO 622 463 01 10
204
THRUST WASHER OUTSIDE
204
SEAL RING , Replaced By: A0169973648
208
THRUST WASHER OUTSIDE
208
THRUST WASHER , Replaced By: A6574630062
212
GREASE NIPPLE
212
GREASE NIPPLE , Replaced By: N071412008102
216
NUT , Replaced By: N910113018004
216
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
220
CAP STEERING SUPPORT
224
SHIM STEERING SUPPORT TO FRAME
228
SHIM STEERING INTERMEDIATE BRACKET TO FRAME SIDE MEMBER
232
SHIM STEERING INTERMEDIATE BRACKET TO FRAME SIDE MEMBER
236
SCREW ROD TO TRANSFER CASE M 14X75
236
SCREW PROPELLER SHAFT TO TRANSMISSION
236
SCREW CONSOLE TO FRAME
236
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
236
SCREW , Replaced By: N308676014012
236
SCREW , Replaced By: A9429901304
236
SCREW , Replaced By: N308676016013
236
SCREW , Replaced By: N308676016006
236
SCREW , Replaced By: N308676016007
236
SCREW , Replaced By: N308676016005
236
SCREW , Replaced By: N308676016020
236
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
236
SCREW STEERING SUPPORT TO FRAME M 14X50
236
SCREW SUPPORT TO SIDE MEMBER M 14X45
236
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
236
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
236
SCREW MOUNTING TO CONSOLE M 14X55
236
SCREW APPARATUS SUPPORT TO FRAME
236
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
236
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
240
NUT STEERING SUPPORT TO FRAME
240
NUT CONSOLE TO SUPPORT
240
NUT , Replaced By: N910113014000
240
NUT , Replaced By: N910113016001
