Поз.
Артикул
Описание

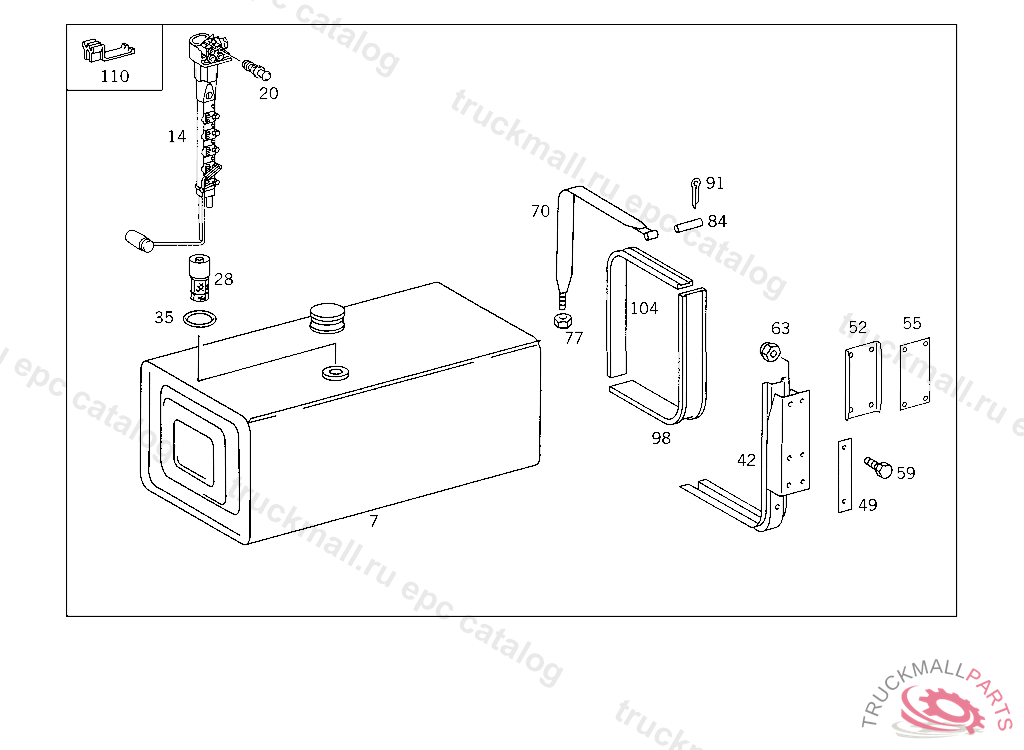

7
FUEL TANK400 L.,4 399369
14
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
14
SENDER UNIT FUEL GAUGE
20
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
28
FUEL STRAINER FUEL TANK,K 169122
28
FUEL STRAINER FUEL TANK,K 169123
35
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
42
SUPPORT REAR FUEL TANK
42
SUPPORT FRONT FUEL TANK
42
SUPPORT REAR FUEL TANK
42
SUPPORT FRONT FUEL TANK
49
SHIM REAR SUPPORT TO FRAME
49
SHIM FRONT SUPPORT TO SIEDE MEMBER
52
SHIM FRONT SUPPORT TO SIEDE MEMBER
55
SHIM REAR SUPPORT TO FRAME
59
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
59
SCREW , Replaced By: N308676014020
63
NUT , Replaced By: N910113014001
63
NUT BRACKET TO SIDE MEMBER
70
STRAP FUEL TANK TO SUPPORT
77
NUT STRAP TO SUPPORT
84
PIN STRAP TO SUPPORT
91
COTTER PIN STRAP TO SUPPORT
98
PAD FUEL TANK TO SUPPORT 1060 MM
104
PAD FUEL TANK TO CONSOLE
110
BRACKET TO MOUNT FUEL LINES,K 114273
999
SEAL RING
999
CHAIN FILLER CAP
999
BRACKET STRAP
999
FILLER CAP
