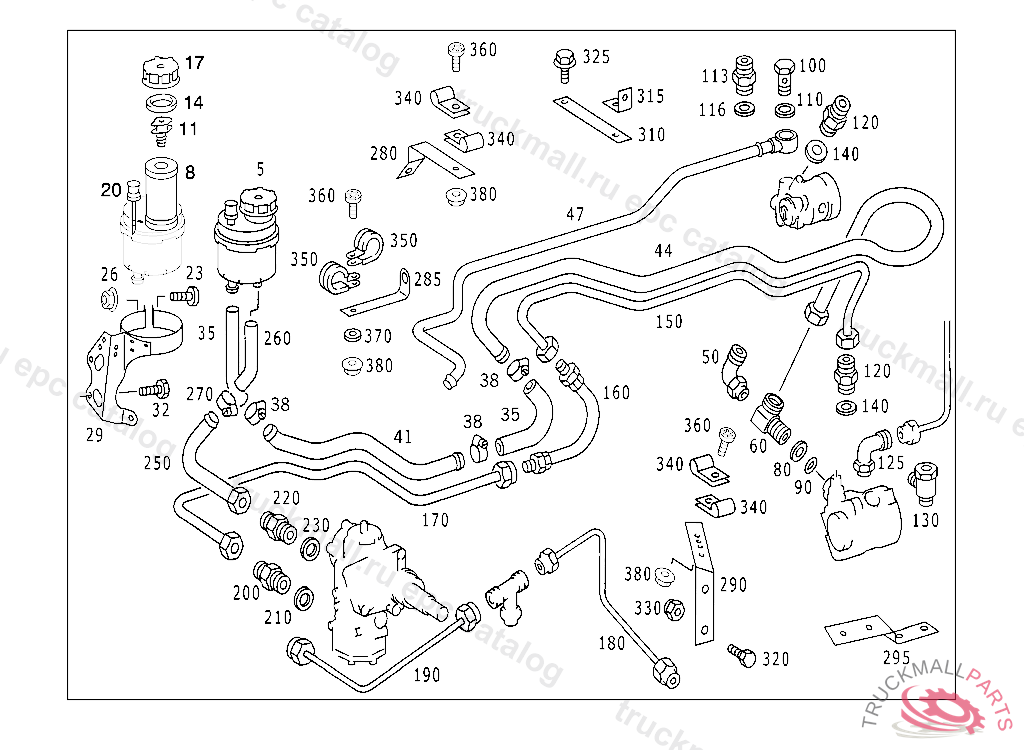

Поз.
Артикул
Описание
5
TANK STEERING OIL TANK
8
FILTER
11
BRACKET
14
SEAL RING
17
FILLER CAP
17
FILLER CAP , Replaced By: A0004661268
20
OIL DIPSTICK OIL TANK
23
SCREW OIL TANK TO BRACKET
26
NUT AT FILTER BRACKET
29
BRACKET OIL TANK
32
SCREW LINE MOUNTING M 10X20
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
CLAMP , Replaced By: N000000000667
41
LINE HOSE TO SUCTION LINE AND TO OIL TANK
41
LINE , Replaced By: A0004291601
41
LINE , Replaced By: A0004291601
41
LINE HOSE TO SUCTION LINE AND TO OIL TANK
41
LINE FROM OIL TANK TO HOSE
41
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
41
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
41
LINE FROM OIL TANK TO HOSE
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE FROM PUMP TO HIGH PRESSURE HOSE
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
44
LINE , Replaced By: A0004291601
44
LINE , Replaced By: A0004291601
44
LINE , Replaced By: A0004291601
44
LINE RETURN, FROM STEERING TO OIL TANK
44
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE , Replaced By: A0004291601, +001N915010020200
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
50
FITTING SUCTION LINE TO OIL PUMP
60
ELBOW FITTING SUCTION LINE TO OIL PUMP
80
THRUST RING SUCTION LINE TO OIL PUMP
90
SEALING CORD SUCTION LINE TO OIL PUMP
100
HOLLOW SCREW SUCTION LINE TO OIL PUMP
110
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
113
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
116
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
120
FITTING DELIVERY LINE TO PUMP
120
SCREW-IN FITTING DELIVERY LINE TO PUMP
125
ELBOW FITTING DELIVERY LINE TO PUMP
130
SCREW CONNECTION DELIVERY LINE TO PUMP
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
150
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE , Replaced By: A0005516156
150
LINE , Replaced By: A0005516156
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
TUBE FROM HIGH PRESSURE HOSE TO STEERING
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
150
LINE FROM PUMP TO HIGH PRESSURE HOSE
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
160
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
170
LINE FROM HIGH PRESSURE HOSE TO STEERING
180
LINE T-PIECE TO PRESSURE RELIEF VALVE
190
LINE FROM PRESSURE LIMIT VALVE TO STEERING, BOTTOM,CIRCUIT I
200
FITTING DELIVERY LINE TO PUMP
210
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
220
SCREW-IN FITTING RETURN LINE TO STEERING
220
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
230
SEAL RING VALVE TO VALVE,K 025179
250
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
250
LINE RETURN, FROM STEERING TO OIL TANK
250
LINE RETURN, FROM STEERING TO OIL TANK
250
LINE , Replaced By: A0005516256
250
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
250
LINE RETURN, FROM STEERING TO OIL TANK
260
HOSE DELIVERY LINE TO STEERING
270
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
270
CLAMP HOSE TO FITTING AND TO OIL TANK
280
BRACKET LINE MOUNTING
285
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
290
BRACKET DELIVERY AND SUCTION LINES TO FRAME
290
BRACKET DELIVERY AND SUCTION LINES TO FRAME
295
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
310
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
315
ANGLE LINE MOUNTING
320
SCREW BRACKET MOUNTING
320
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
320
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
320
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
320
SCREW , Replaced By: N308676012026
325
SCREW LINE MOUNTING M 10X20
330
NUT SUPPORT TO SIDE MEMBER
340
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
340
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
340
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
340
CLAMP DELIVERY AND SUCTION LINES TO STEERING
350
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
350
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
350
CLAMP DELIVERY AND SUCTION LINES TO FRAME
360
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
360
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
370
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
370
WASHER COMPRESSED AIR LINE TO BRACKET
380
NUT AT FILTER BRACKET
