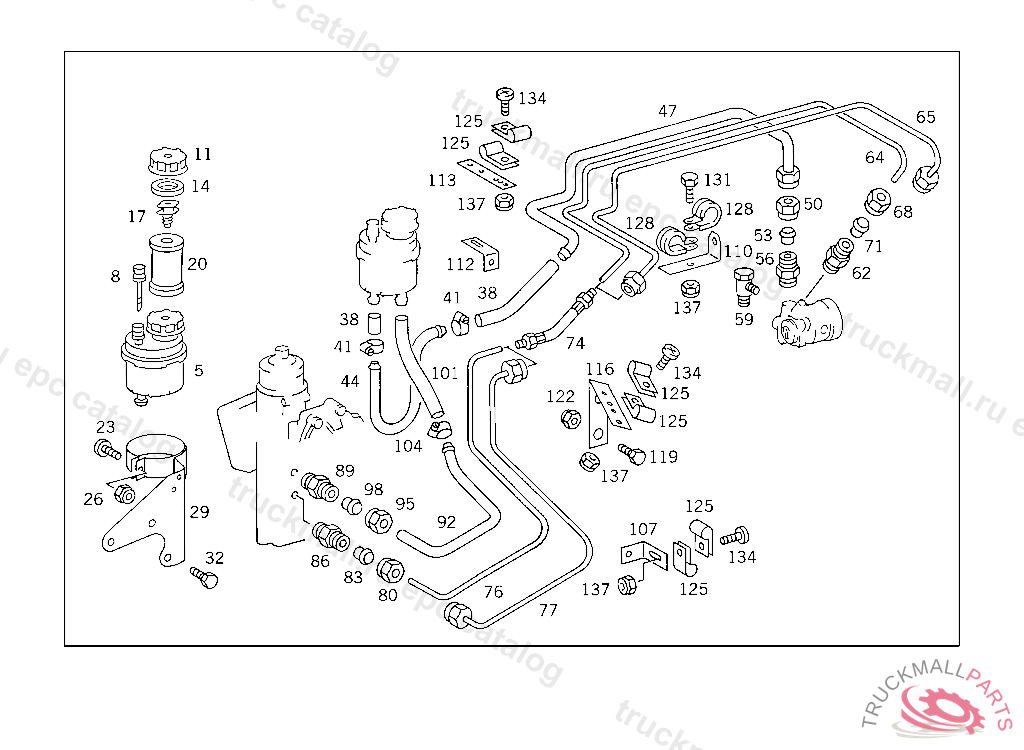

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
44
LINE FROM OIL TANK TO HOSE
44
LINE , NOT USED
44
LINE , NOT USED
53
SEAL CONE LINE CONNECTION
53
GLAND , Replaced By: A0019901267
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
62
FITTING DELIVERY LINE TO PUMP
68
UNION NUT LINE CONNECTION
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
71
SEAL CONE LINE CONNECTION
71
GLAND , Replaced By: A0019901967
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE , NOT USED
77
LINE , NOT USED
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
80
UNION NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
SEAL CONE LINE CONNECTION
83
GLAND , Replaced By: A0019901967
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
92
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE , NOT USED
101
HOSE , NOT USED
101
HOSE DELIVERY LINE TO STEERING
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
107
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
107
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET , Replaced By: A6564660040
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP , Replaced By: A6739950001
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
134
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
134
SCREW , Replaced By: N000000001149
134
SCREW , Replaced By: A0029903712
134
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
134
SCREW , Replaced By: N000000001422
134
SCREW CAB FLOOR COVERING M 6X25
134
SCREW BRACKET MOUNTING M 6X20
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
SCREW CLAMP MOUNTING M 6X16
134
SCREW , Replaced By: N000000001146
137
NUT PUMP TO BRACKET
137
NUT , Replaced By: N913004006001
999
COUPLING FROM PUMP TO DELIVERY LINE,5 944106
999
PROTECTIVE CAP
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
