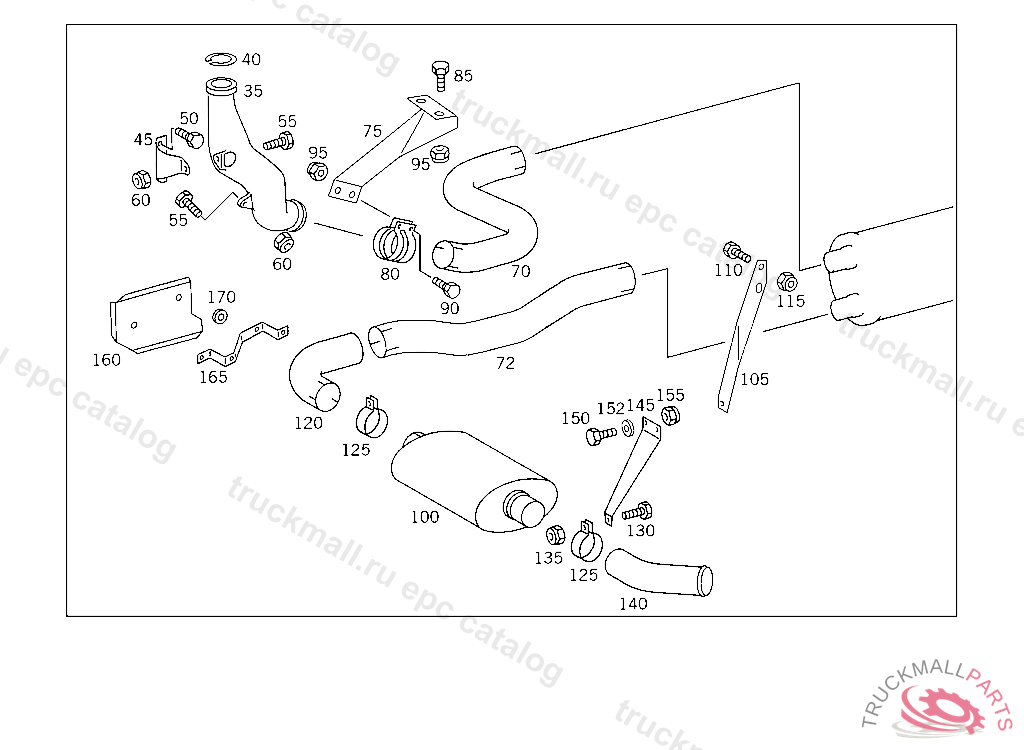

Поз.
Артикул
Описание
35
FRONT EXHAUST PIPE , Replaced By: A6524920201
35
FRONT EXHAUST PIPE
40
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
45
BRACKET FRONT EXHAUST PIPE TO TIMING CASE,TOP
50
SCREW , Replaced By: N910105016029
50
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
55
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
60
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
60
NUT , Replaced By: N913023010002
70
EXHAUST PIPE
72
EXHAUST PIPE FRONT
72
EXHAUST PIPE
75
BRACKET FRONT EXHAUST PIPE
80
CLAMP EXHAUST PIPE TO BRACKET
85
SCREW EXHAUST PIPE TO SIDE MEMBER
90
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
95
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
NUT , Replaced By: N913023010002
100
EXHAUST MUFFLER (POSTERIOR MUFFLER)
105
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
110
SCREW SUPPORT TO SIDE MEMBER M14X40
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
110
SCREW EXHAUST PIPE TO SIDE MEMBER
110
SCREW , Replaced By: N308676014020
115
NUT , Replaced By: N910113014001
115
NUT BRACKET TO SIDE MEMBER
115
NUT BRACKET TO SIDE MEMBER
115
NUT EXHAUST PIPE TO SIDE MEMBER
120
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER
120
CONNECTOR ,K 035197
120
INTERMEDIATE PIECE IN FRONT OF POSTERIOR MUFFLER
120
CONNECTOR IN FRONT OF POSTERIOR MUFFLER
120
CONNECTOR
120
CONNECTOR
120
INTERMEDIATE PIECE
125
CLAMP EXHAUST PIPE
125
CLAMP EXHAUST PIPE
125
CLAMP TAIL PIPE TO APPARATUS SUPPORT
130
SCREW BRACKET TO SIDE MEMBER
130
SCREW , Replaced By: N304017010002
135
NUT , Replaced By: N910113010000
135
NUT STRAP TO BRACKET
140
EXHAUST PIPE ,5 953233
145
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
145
BRACKET TAIL PIPE TO APPARATUS SUPPORT
150
SCREW EXHAUST PIPE TO SIDE MEMBER
150
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
150
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
SCREW , Replaced By: N910105010009
152
WASHER , Replaced By: N000125010532
152
WASHER RADIATOR TO RUBBER MOUNTING
155
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
155
NUT , Replaced By: N913023010002
160
PROTECTIVE PLATE TAIL PIPE
165
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
170
WASHER , Replaced By: N000125008443
170
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
END PIECE TAIL PIPE ON THE RIGHT
999
END PIECE (TAIL PIPE)
999
FLEXIBLE METAL TUBE FRONT
999
BRACKET TAIL PIPE
999
END PIECE
999
BRACKET AT SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE (TAIL PIPE),5 5975185 758825
999
REAR EXHAUST PIPE
999
END PIECE
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE , NOT USED
999
END PIECE TAIL PIPE ON THE RIGHT
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER,K 027551
999
BRACKET EXHAUST MUFFLER,LEFT,5 761222
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT EXHAUST PIPE
999
STRAP EXHAUST MUFFLER 614 MM, TO BE ADAPTED DURING ASSEMBLY
999
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
999
EXHAUST MUFFLER
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
EXHAUST MUFFLER
999
STRAP , Replaced By: A6524900442
999
CONNECTOR
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET , Replaced By: A6524921441
999
END PIECE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET REAR EXHAUST PIPE,5 193594 TO BE ADAPTED DURING ASSEMBLY
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
EXHAUST PIPE FRONT,REAR PART,5 308040
999
EXHAUST PIPE FRONT,REAR PART
999
PROTECTIVE PLATE EXHAUST PIPE
999
PROTECTIVE PLATE FUEL TANK
999
SUPPORT REAR EXHAUST PIPE
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
RUBBER BUFFER BRACKET TO SUPPORT
