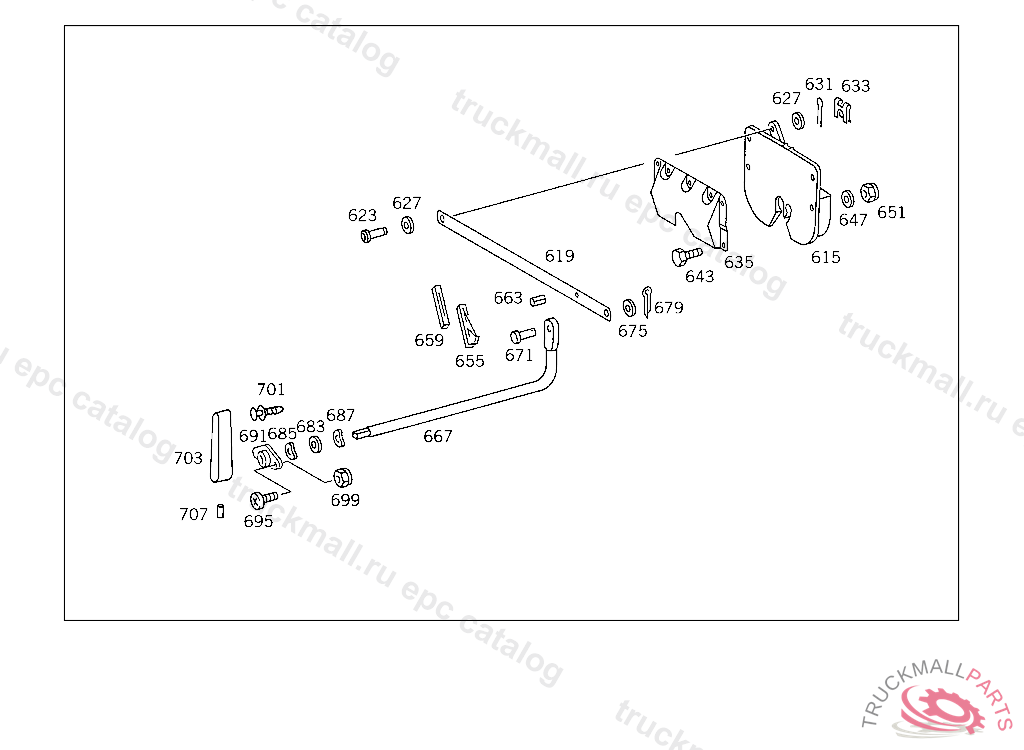

Поз.
Артикул
Описание
615
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
615
FASTENER , Replaced By: A0008902389
615
FASTENER , Replaced By: A0008902389
619
ROD CENTRAL LOCK
619
ROD CENTRAL LOCK
623
PIN PULL TO FASTENER
623
PIN PULL TO FASTENER, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
627
WASHER BRACKET TO CROSS MEMBER
631
COTTER PIN LEVER TO ROD
631
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
633
LOCK , Replaced By: N912002008003
633
LOCK PULL TO FASTENER
635
CONSOLE CENTRAL LOCK
643
SCREW LINE MOUNTING M 10X20
643
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
643
SCREW END PIECE TO EXHAUST PIPE M 10X25
643
SCREW CENTRAL LOCK TO CAB M 10X16
647
WASHER RADIATOR TO RUBBER MOUNTING
647
WASHER , Replaced By: N000125010532
651
NUT , Replaced By: N913023010002
651
NUT , Replaced By: N910113010000
651
NUT STRAP TO BRACKET
651
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
655
BRACKET ROD THRU CAB
659
SEAL ROD THRU CAB
663
CLAMPING SLEEVE ROD TO BRACKET
667
LEVER CAB LOCKING MECHANISM
671
PIN LEVER TO ROD
675
WASHER BRACKET TO CROSS MEMBER
679
COTTER PIN LEVER TO ROD
679
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
683
WASHER , Replaced By: N000125015019
683
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
685
SPRING WASHER LEVER MOUNTING
687
RETAINING RING LEVER MOUNTING, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 287988
691
BUSHING LEVER TO CAB
695
SCREW BUSHING AND LEVER TO CAB
699
NUT , Replaced By: N913004008001
699
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
699
NUT BRACKET TO BRACKET
701
RIVET BUSHING AND LEVER TO CAB
703
HANDLE CAB LOCKING MECHANISM
703
HANDLE , USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS, Replaced By: A6208910073
707
CLAMPING SLEEVE , Replaced By: N001481005039
707
CLAMPING SLEEVE LEVER MOUNTING
999
NUT BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N910105010023
999
SCREW STRUT TO CONSOLE
999
SCREW CLAMP TO CONSOLE
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
WASHER CONSOLE TO FRAME
999
STOP LATERAL GUIDE OF CAB
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
MOUNTING LEFT VIBRATION ABSORBER
999
BRACKET LATERAL GUIDE OF CAB
999
MOUNTING CAB, RIGHT
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER
999
SCREW , Replaced By: N304017008034
999
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
999
CLAMPING SLEEVE CAB LOCKING MECHANISM
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
NUT SUPPORT TO SIDE MEMBER
999
NUT , Replaced By: N913004008001
