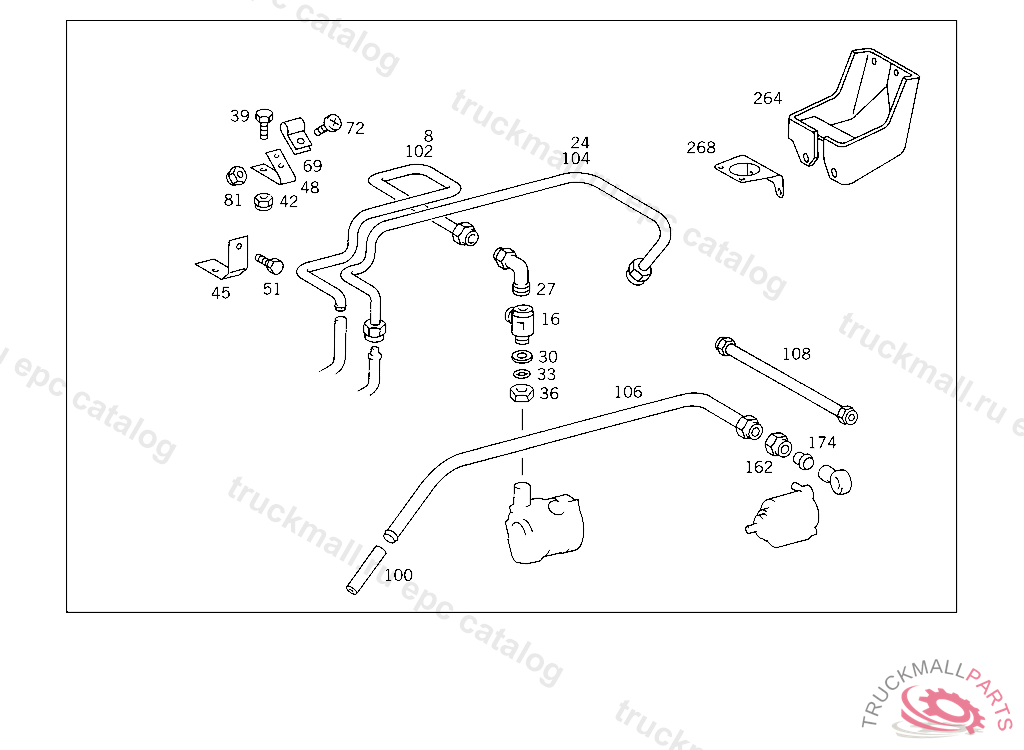

Поз.
Артикул
Описание
8
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
8
LINE , Replaced By: A6564602424
8
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
8
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
8
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
8
LINE FROM PUMP TO HIGH PRESSURE HOSE
8
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
8
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
8
LINE SUCTION LINE
8
LINE , Replaced By: A0004291601
16
ELBOW FITTING SUCTION LINE TO OIL PUMP
24
LINE DELIVERY LINE
24
LINE FROM PUMP TO HIGH PRESSURE HOSE
24
LINE FROM PUMP TO HIGH PRESSURE HOSE
24
LINE FROM PUMP TO HIGH PRESSURE HOSE
24
LINE DELIVERY LINE
24
TUBE FROM HIGH PRESSURE HOSE TO STEERING
24
LINE , Replaced By: A0005516156
27
ELBOW FITTING SUCTION LINE TO OIL PUMP
30
THRUST RING SUCTION LINE TO OIL PUMP
33
SEALING CORD SUCTION LINE TO OIL PUMP
36
NUT SUCTION LINE TO OIL PUMP
39
SCREW BRACKET TO SIDE MEMBER
39
SCREW , Replaced By: N304017010002
42
NUT , Replaced By: N910113010000
42
NUT STRAP TO BRACKET
45
BRACKET OIL LINE TO ENGINE
48
BRACKET OIL LINE TO ENGINE
48
BRACKET , Replaced By: A6194660740
51
SCREW , Replaced By: N304017006020
51
SCREW LICENSE PLATE TO BRACKET
69
CLAMP , Replaced By: A6739950001
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP DELIVERY AND SUCTION LINES TO STEERING
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP FEED LINE TO THERMOSTAT
69
CLAMP LINE MOUNTING
72
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
81
NUT , Replaced By: N913004006001
81
NUT PUMP TO BRACKET
100
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
102
LINE , Replaced By: A0004291601
102
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
104
LINE FROM PUMP TO HIGH PRESSURE HOSE
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE , Replaced By: A0004291601
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II,5 537499
106
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
108
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
108
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
108
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
108
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
108
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
162
UNION NUT LINE MOUNTING
174
GLAND , Replaced By: A0019901167
174
SEAL CONE LINE MOUNTING
264
BRACKET OIL TANK
268
BRACKET OIL TANK
999
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET SUCTION LINE TO TRANSMISSION
999
HOSE , NOT USED
999
BRACKET OIL LINE ON ENGINE SIDE
999
LINE FROM 2/2-WAY VALVE TO HOSE,CIRCUIT II,5 569241
999
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
999
LINE FROM 2/2-WAY VALVE TO HOSE,CIRCUIT II,5 569241
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II,5 569241
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
BRACKET POWER CYLINDER DELIVERY LINE,5 525734
999
BRACKET OIL TANK, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET OIL TANK
999
BRACKET OIL LINE TO ENGINE
999
BRACKET
999
LINE , Replaced By: A6564602224
999
LINE , Replaced By: A0005516156
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE SUCTION LINE TO OIL PUMP
999
LINE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
999
BRACKET
