Поз.
Артикул
Описание

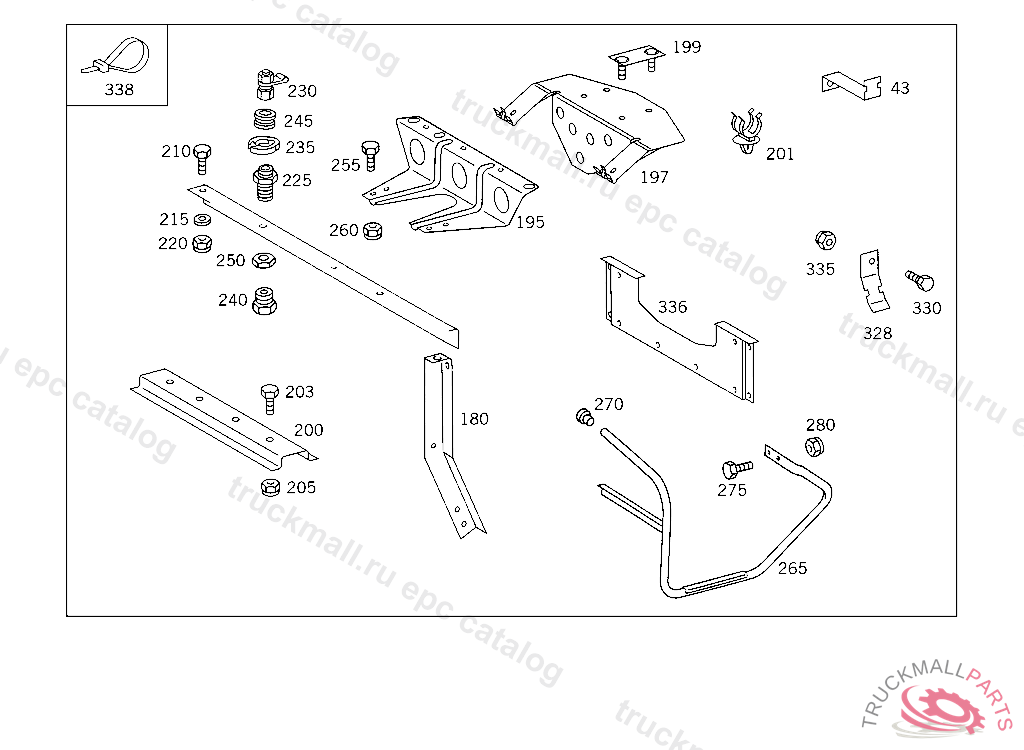

43
BRACKET LINE MOUNTING
180
BRACKET LEFT
180
BRACKET RIGHT
195
BRACKET BRAKE LINE COUPLINGS,K 171496
195
SUPPORT BRAKE LINE COUPLINGS
197
BRACKET BRAKE LINE COUPLINGS
199
BRACKET STRUT TO CROSS MEMBER
200
CONSOLE BRACKET TO CROSS CONNECTION STRUT
201
BRACKET CABLE HOLDER TO BRACKET
203
SCREW END PIECE TO EXHAUST PIPE M 10X25
205
NUT STRAP TO BRACKET
205
NUT , Replaced By: N910113010000
210
SCREW , Replaced By: N304017008021
210
SCREW PIPE CLAMP
215
WASHER , Replaced By: N000125008443
215
WASHER EXHAUST MUFFLER TO STRAP
220
NUT , Replaced By: N913004008001
220
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
ADAPTER FITTING LINE CONNECTION TO ENGINE
230
TEST CONNECTION BULKHEAD FITTING
235
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
240
SCREW. UNION SCREW LINE CONNECTION
245
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
250
NUT BRACKET TO SIDE MEMBER
255
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
260
NUT , Replaced By: N910113010000
260
NUT STRAP TO BRACKET
265
SUPPORT (STEP BRACKET),AT APPARATUS SUPPORT
270
PLUG ROCKER PANEL
275
SCREW END PIECE TO EXHAUST PIPE M 10X25
280
NUT , Replaced By: N910113010000
280
NUT STRAP TO BRACKET
328
BRACKET CABLE HARNESS MOUNTING
328
BRACKET CABLE HARNESS MOUNTING
330
SCREW CABLE HARNESS MOUNTING M6X16
330
SCREW , Replaced By: N304017008034
330
SCREW , Replaced By: N304017008023
330
SCREW CABLE HARNESS MOUNTING
330
SCREW BRACKET TO CROSS CONNECTION STRUT
335
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
335
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
335
NUT AT FILTER BRACKET
335
NUT , Replaced By: N913004008001
335
NUT STRAP TO BRACKET
336
ANTINOISE CAPSULE COVERING TO CAB
338
LOOM TIE LINE MOUNTING
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
SCREW LEVER TO ENGINE CONTROL SHAFT
999
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
999
TEST CONNECTION
999
HANDLE"WABCO"
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
SCREW , Replaced By: N910105006023
999
VALVE PARKING BRAKE LESS TRAILER CONTROL WABCO
999
SCREW BRACKET TO SIDE MEMBER,5 597425
999
SCREW , Replaced By: N910105014019
999
VALVE PRESSURE LIMIT M 22,K 025180
999
BRACKET CABLE TO TRANSMISSION
999
BRACKET
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BASE SUPPORT TO SIDE MEMBER
999
BRACKET
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
ANGLE LEFT,5 560032
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
LOCK FRONT AXLE,LEFT
999
LOCK FRONT AXLE,LEFT,K 009080
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
BASE AIR RESERVOIR,STRAP
999
STEP
999
ANGLE RIGHT
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
ANGLE RIGHT
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
999
BRACKET PLUG-SOCKET BRANCH-OFF TO FRAME SIDE MEMBER,06.95
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET ,K 012509K 142857
999
BASE AIR RESERVOIR STRAP
999
BRACKET TRAILER PLUG SOCKET
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
