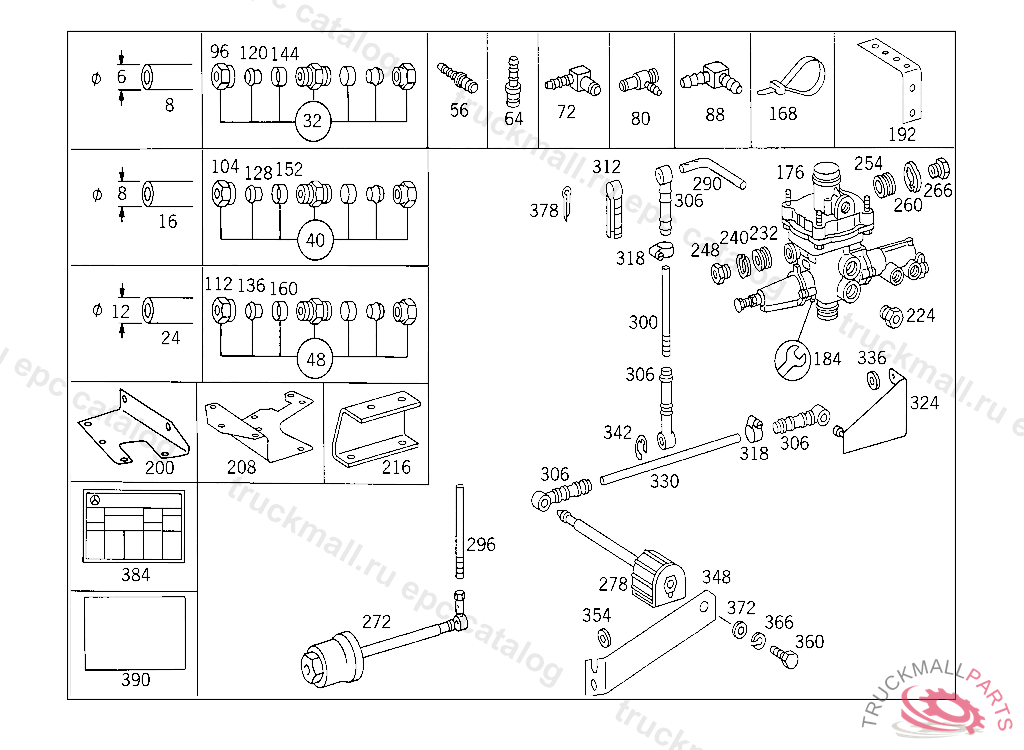

Поз.
Артикул
Описание
8
PLASTIC PIPE RISING PIPE 4X6 MM
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
24
HOSE , Replaced By: A0009872827
32
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
40
FITTING (PARTS KIT),LINE RUPTURE
48
FITTING (PARTS KIT),LINE RUPTURE
56
CONNECTOR DISTRIBUTOR TO CAB
56
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
64
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
72
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
72
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
72
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
72
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
72
ELBOW FITTING , Replaced By: A0049905371
80
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
88
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
96
UNION NUT
104
UNION NUT LINE CONNECTION
112
UNION NUT LINE CONNECTION
112
UNION NUT LINE CONNECTION, Replaced By: N000000006239
120
GLAND , Replaced By: A0019901667
120
SEAL CONE
128
GLAND LINE CONNECTION
136
SEAL CONE LINE CONNECTION
136
GLAND , Replaced By: A0019901967
144
SLEEVE LEAK LINE
152
SLEEVE LINE CONNECTION
160
SLEEVE LINE CONNECTION
168
LOOM TIE LINE MOUNTING 280 MM
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
BRAKE PRESSURE REGULATORWABCO
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0014319712
184
REPAIR KIT BRAKE POWER REGULATOR WABCO
184
REPAIR KIT BRAKE POWER REGULATOR
184
REPAIR KIT BRAKE POWER REGULATOR BOSCH
184
REPAIR KIT BRAKE POWER REGULATOR KNORR
192
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
200
BRACKET BRAKE POWER REGULATOR, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524291840
208
BRACKET , NOT USED
208
BRACKET BRAKE POWER REGULATOR
216
BRACKET BRAKE POWER REGULATOR
224
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
232
LOCK RING LINE CONNECTION
232
SEAL RING , Replaced By: A0009940747
240
LOCK , Replaced By: A0009945448
240
LOCK LINE CONNECTION
248
SCREW. UNION SCREW LINE CONNECTION
248
SCREW. UNION SCREW , Replaced By: A0009973734
254
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
260
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
266
SCREW. UNION SCREW LINE CONNECTION
272
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
278
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
290
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
296
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
296
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
300
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
300
PULL ROD BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
306
CONNECTOR PULL ROD TO LEVER
312
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
318
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
318
CLAMP DELIVERY AND SUCTION LINES TO FRAME
318
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
318
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
318
CLAMP , Replaced By: N000000000665
324
BRACKET LINK
330
ROD BRAKE POWER REGULATOR CONTROL
336
WASHER
342
LOCK RING PULL ROD TO LINK
348
BRACKET METAL SPRING BELLOWS,REAR AXLE I
354
WASHER BRACKET TO FRAME
354
WASHER , Replaced By: N000125017016
360
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
366
LOCK WASHER FITTING TO BRACKET
372
WASHER EXHAUST MUFFLER TO STRAP
372
WASHER , Replaced By: N000125008443
378
COTTER PIN ROD TO LEVER
378
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
384
GUIDE SIGN ,5 585846
384
PLATE LOAD-DEPENDING BRAKE
390
ADHESIVE FOIL GUIDE SIGN
999
BRACKET BEARING BRACKET TO REAR AXLE
999
BRACKET LINE MOUNTING
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
