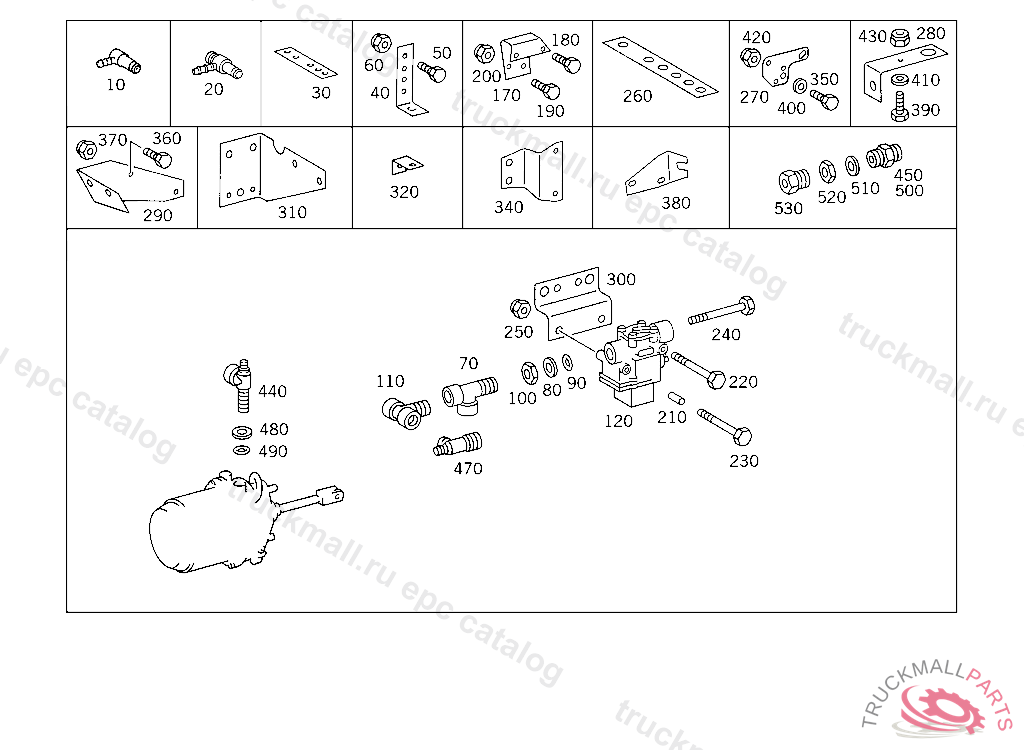

Поз.
Артикул
Описание
10
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
20
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
30
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
40
BRACKET FUEL LINES TO TRANSMISSION
40
BRACKET FRONT AXLE,LEFT
40
BRACKET BRACKET TO CROSS MEMBER
40
BRACKET COMPRESSED AIR LINE TO REGULATING SOLENOID VALVE,5 727399
50
SCREW SUPPORT TO FENDER
50
SCREW , Replaced By: N304017008018
60
NUT , Replaced By: N913004008001
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
80
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
90
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
100
NUT COMBINATION CYLINDER,CONNECTION: "12"
110
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
110
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
120
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
120
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
120
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
170
BRACKET SOLENOID VALVE LEFT
170
BRACKET SOLENOID VALVE RIGHT
180
SCREW FRONT AXLE REGULATING SOLENOID VALVE
180
SCREW 3/2-WAY VALVE TO BRACKET
180
SCREW , Replaced By: N304014008009
180
SCREW , Replaced By: N000933008134
190
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
190
SCREW , Replaced By: N308676012026
200
NUT SUPPORT TO SIDE MEMBER
210
GUIDE BUSHING TWO-WAY VALVE TO FRAME
220
SCREW FRONT AXLE REGULATING SOLENOID VALVE
220
SCREW , Replaced By: N000933008134
230
SCREW TWO-WAY VALVE TO FRAME M 8X140
230
SCREW VALVE TO BRACKET ON REAR AXLE M 8X150
240
SCREW AT SIDE MEMBER,REAR M 8X135
250
NUT , Replaced By: N913004008001
250
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
260
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
270
BRACKET REGULATING SOLENOID VALVE,5 953054
280
BRACKET FRONT AXLE,LEFT
280
BRACKET FRONT AXLE,LEFT
290
BRACKET FRONT AXLE,LEFT
290
BRACKET FRONT AXLE,LEFT
290
BRACKET FRONT AXLE,RIGHT,5 727399
290
BRACKET FRONT AXLE,RIGHT
290
BRACKET FRONT AXLE,RIGHT
300
BRACKET FRONT AXLE REGULATING SOLENOID VALVE
310
BRACKET DIAPHRAGM CYLINDER
320
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
340
BRACKET DIAPHRAGM CYLINDER
340
BRACKET DIAPHRAGM CYLINDER
340
BRACKET REAR AXLE REGULATING SOLENOID VALVE
350
SCREW BRACKET TO SIDE MEMBER
350
SCREW , Replaced By: N308676014020
350
SCREW , Replaced By: N000961012025
350
SCREW SUPPORT TO SIDE MEMBER
350
SCREW BRACKET TO CAB CONSOLE,K 035197
350
SCREW REAR EXHAUST PIPE TO MUFFLER
350
SCREW COLD START SYSTEM TO BRACKET
350
SCREW BRACKET TO SIDE MEMBER M 12X38
350
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
350
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
350
SCREW VALVE TO SEAT BOX
360
SCREW , Replaced By: N304017008027
360
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
370
NUT BRACKET TO BRACKET
380
LOCK FRONT AXLE,LEFT,K 009079
380
LOCK FRONT AXLE,RIGHT,K 009080
390
SCREW BRACKET TO CROSS MEMBER M 8X105
390
SCREW PIPE CLAMP
390
SCREW , Replaced By: N304017008021
400
WASHER BRACKET TO SIDE MEMBER
400
WASHER SPARE WHEEL CARRIER
410
WASHER EXHAUST MUFFLER TO STRAP
410
WASHER , Replaced By: N000125008443
420
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
420
NUT SUPPORT TO SIDE MEMBER
430
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
430
NUT BRACKET TO BRACKET
430
NUT BRACKET TO SIDE MEMBER
430
NUT , Replaced By: N910113014001
430
NUT , Replaced By: N913004008001
440
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
450
FITTING TRAILER CONTROL VALVE,CONNECTION: "11",TB108828
450
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
450
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
470
T-FITTING FRONT AXLE,CONNECTION: "20"
480
THRUST RING CHECK VALVE TO AIR RESERVOIR
480
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
490
O-RING CHECK VALVE TO AIR RESERVOIR
500
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
500
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
510
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
520
NUT CHECK VALVE TO AIR RESERVOIR
530
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET FRONT AXLE,RIGHT
999
BRACKET FRONT AXLE,LEFT
999
BRACKET COMPRESSED AIR LINES
