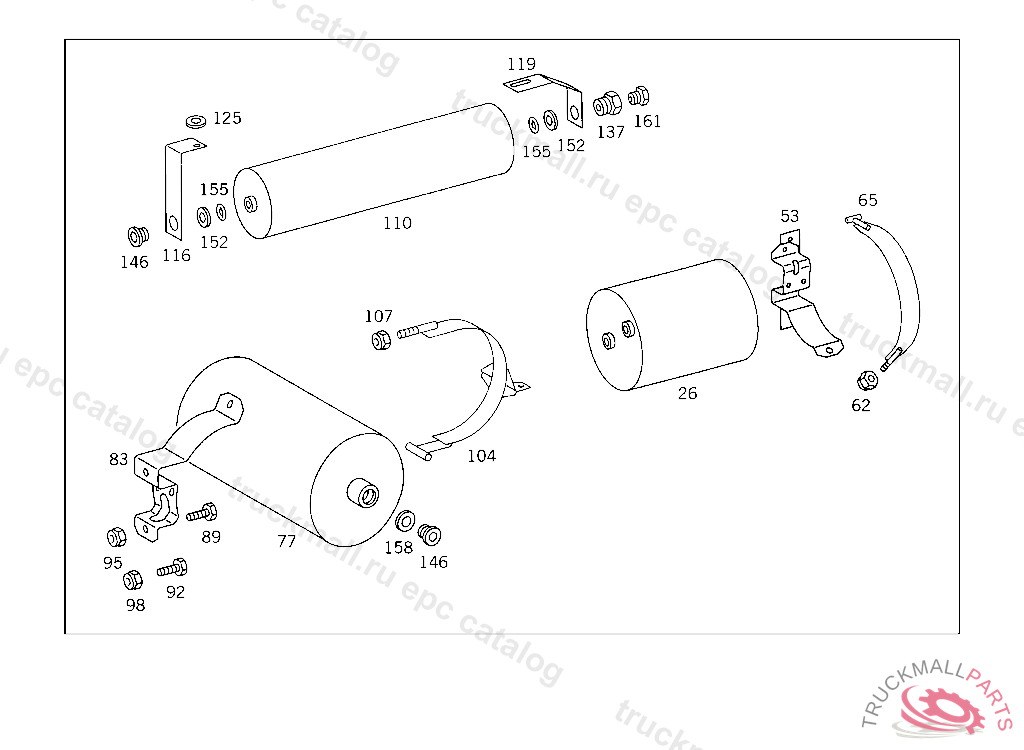

Поз.
Артикул
Описание
53
BRACKET AIR RESERVOIR,5 765578
62
NUT STRAP TO BRACKET
65
STRAP AIR RESERVOIR TO BRACKET
77
RESERVOIR10L,206 MM,8.5 BAR
83
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT, REAR
89
SCREW BRACKET TO SIDE MEMBER,K 168169
89
SCREW , Replaced By: A0089907401
92
SCREW , Replaced By: N304017010043
92
SCREW BRACKET TO CONSOLE
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
NUT , Replaced By: N913004008001
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
98
NUT STRAP TO BRACKET
98
NUT , Replaced By: N910113010000
104
STRAP AIR RESERVOIR
107
NUT STRAP TO BRACKET
107
NUT , Replaced By: N910113010000
110
RESERVOIR5.6L,114,3 MM,10 BAR
116
BRACKET AIR RESERVOIR
119
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
125
WASHER RADIATOR TO RUBBER MOUNTING
125
WASHER , Replaced By: N000125010532
137
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
146
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
146
SCREW PLUG , Replaced By: N000908022011
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
O-RING CHECK VALVE TO AIR RESERVOIR
158
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
161
SCREW. UNION SCREW LINE CONNECTION
161
SCREW. UNION SCREW , Replaced By: A0009973734
999
BRACKET AIR RESERVOIR
999
BRACKET , Replaced By: A6504312840
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
