Поз.
Артикул
Описание
5

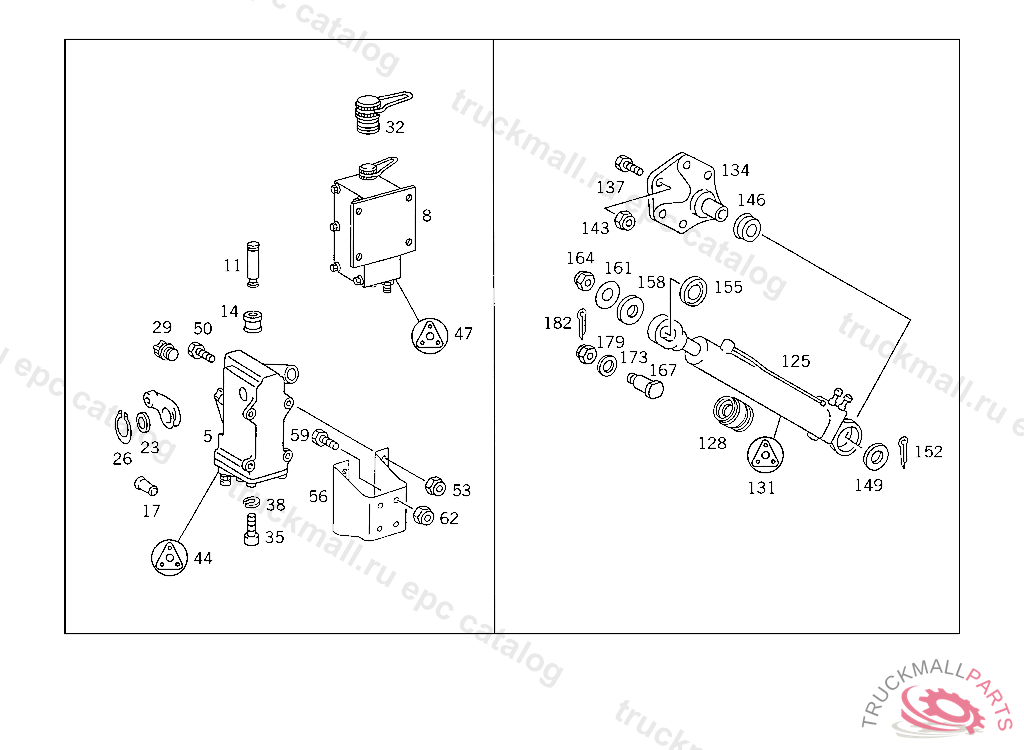

PUMP (HAND PUMP) WEBER
5
PUMP , Replaced By: A0005537901, +001A0015534205
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 79 01,WEBER
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
29
SCREW OIL FILLING HUNGER
35
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
35
SCREW
35
SCREW , Replaced By: N000000000190
35
SCREW , Replaced By: N000912008201
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
GASKET KIT HAND PUMP
44
GASKET KIT HAND PUMP TO 000 553 68 01
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
NUT STRAP TO BRACKET
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
128
GUIDEWEBER,TO 001 553 45 05
131
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
134
BEARING BRACKET HYDRAULIC CYLINDER
137
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
137
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
146
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
149
WASHER HYDRAULIC CYLINDER TO CAB
152
COTTER PIN6,3X36 MM
161
WASHER HYDRAULIC CYLINDER TO CAB
179
NUT LEVER
179
NUT , Replaced By: N000979016008
182
COTTER PIN STRAP TO SUPPORT
999
GASKETHUNGER
999
SCREW , Replaced By: N308676012026
