Mercedes A0009881542 - Замок

1838 LS 655.588

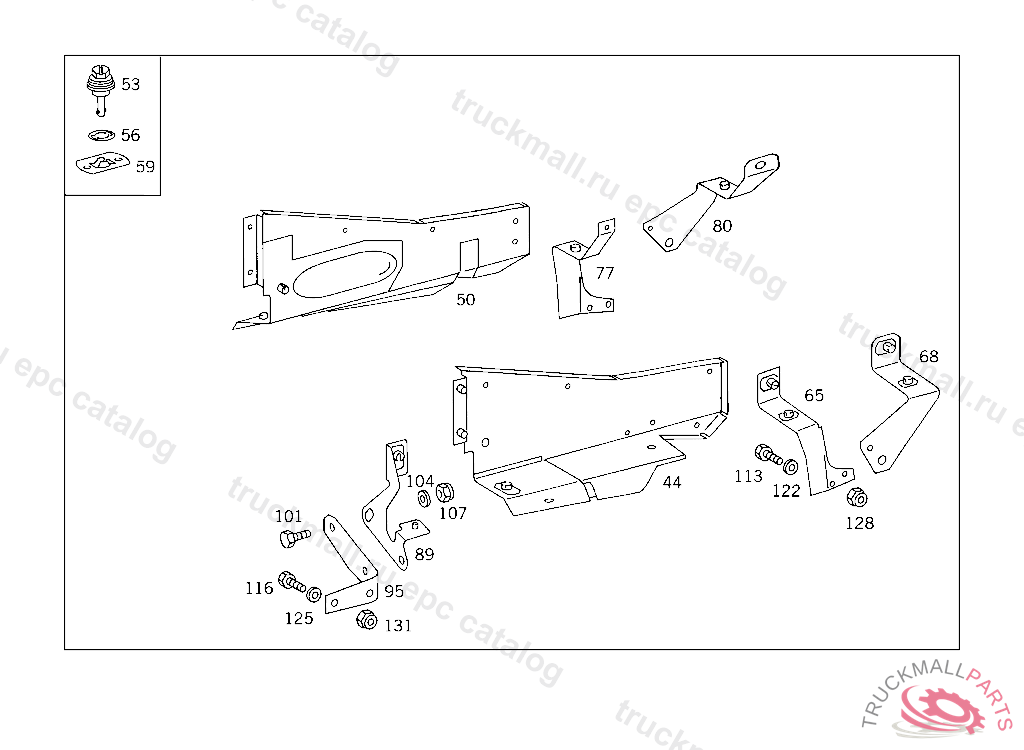

52 SHEET METAL,AIR INTAKE - 330 ENGINE COVERING,ROCKER PANEL, SOUND INSULATION IL. 3

Поз.
Артикул
Описание
44
A6565202423
ANTINOISE CAPSULE LEFT,K 037714
50
A6565202523
ANTINOISE CAPSULE RIGHT,K 037714
53
A0009842336
LOCKING PIN
56
A0009941210
LOCK PROTECTIVE PLATE TO BRACKET
59
A0009881542
FASTENER ,K 105999
68
A6565202241
BRACKET ANTINOISE CAPSULE,LEFT
80
A6565202341
BRACKET RIGHT FRONT
89
A6565200244
BRACKET RIGHT,K 037714
89
A6565200144
BRACKET LEFT,K 037714
95
A6565241240
BRACKET LEFT,K 037714
95
A6565241340
BRACKET RIGHT,K 037714
104
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
107
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
N000961012097
SCREW , Replaced By: N308676012026
116
N308676012026
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
131
N910113012002
NUT SUPPORT TO SIDE MEMBER
