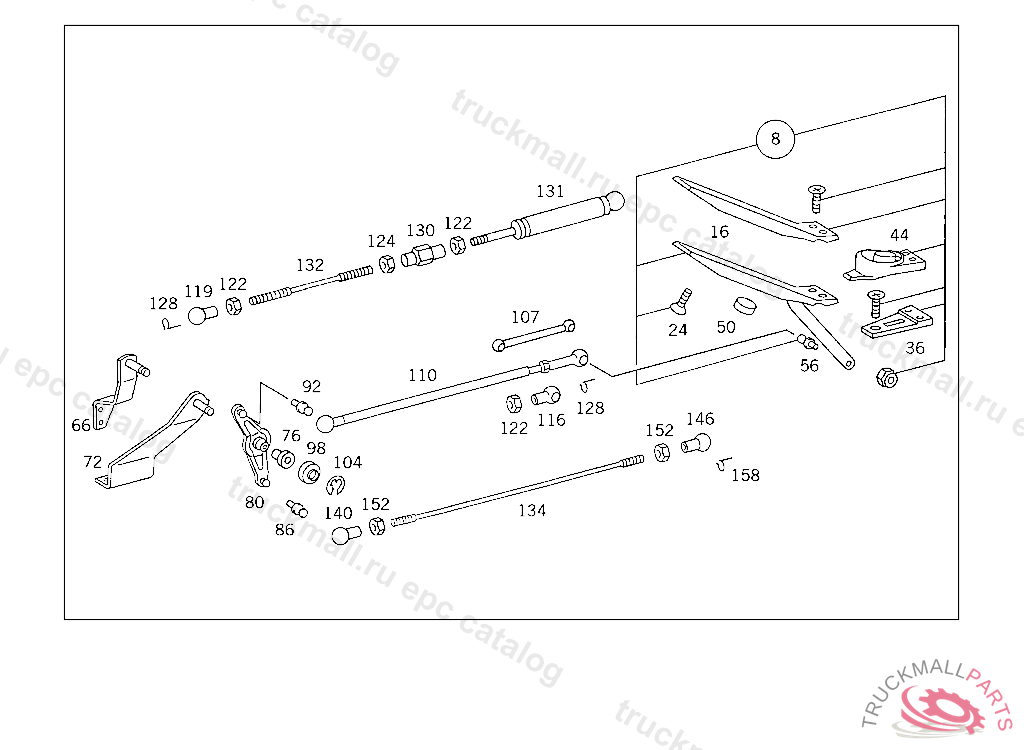

Поз.
Артикул
Описание
8
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
16
PAD ACCELERATOR PEDAL
24
SCREW ACCELERATOR PEDAL
36
SHIM ACCELERATOR PEDAL
44
BOOT ACCELERATOR PEDAL
50
STOP ACCELERATOR PEDAL
56
BALL PIVOT LOAD SENSOR
66
BEARING BRACKET INTERMEDIATE BEARING
66
BEARING BRACKET INTERMEDIATE BEARING
66
BEARING , Replaced By: A6553000036, +001A6203001328, +002A6153010088, +001N006799010001
72
BEARING BRACKET INTERMEDIATE LEVER,5 943507
72
BEARING BRACKET INTERMEDIATE BEARING,5 324164
72
BEARING BRACKET , Replaced By: A6583000036, +001A6583000228
72
BEARING BRACKET INTERMEDIATE BEARING
72
BEARING BRACKET INTERMEDIATE BEARING
76
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
80
LEVER (INTERMEDIATE LEVER),5 943507
80
LEVER INTERMEDIATE BEARING
80
LEVER (INTERMEDIATE LEVER)
80
LEVER INTERMEDIATE BEARING
80
LEVER (REVERSING LEVER)
80
LEVER INTERMEDIATE BEARING
86
BALL PIVOT BOTTOM B13X5 MM
92
BALL STUD. BALL PIVOT TOP B10X4,5 MM
98
COVERING INTERMEDIATE BEARING
104
LOCK PLATE INTERMEDIATE BEARING
107
BALL SOCKET ROD TO ACCELERATOR PEDAL
110
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
110
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
110
ROD LOAD SENSOR CONTROL
110
ROD LOAD SENSOR CONTROL
116
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
116
BALL SOCKET PULL ROD TO LEVER
116
BALL SOCKET PULL ROD TO LEVER
119
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
122
NUT BALL PIVOT TO LEVER
124
NUT BALL PIVOT TO LEVER
128
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
130
TURNBUCKLE TURNBUCKLE
131
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
131
ROD , Replaced By: A6583001715
132
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
134
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
134
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
140
BALL SOCKET ROD TO BALL PIVOT
146
BALL SOCKET ROD TO BALL PIVOT
152
NUT
152
NUT , Replaced By: N304032008006
158
SECURING CLIP. CIRCLIP
