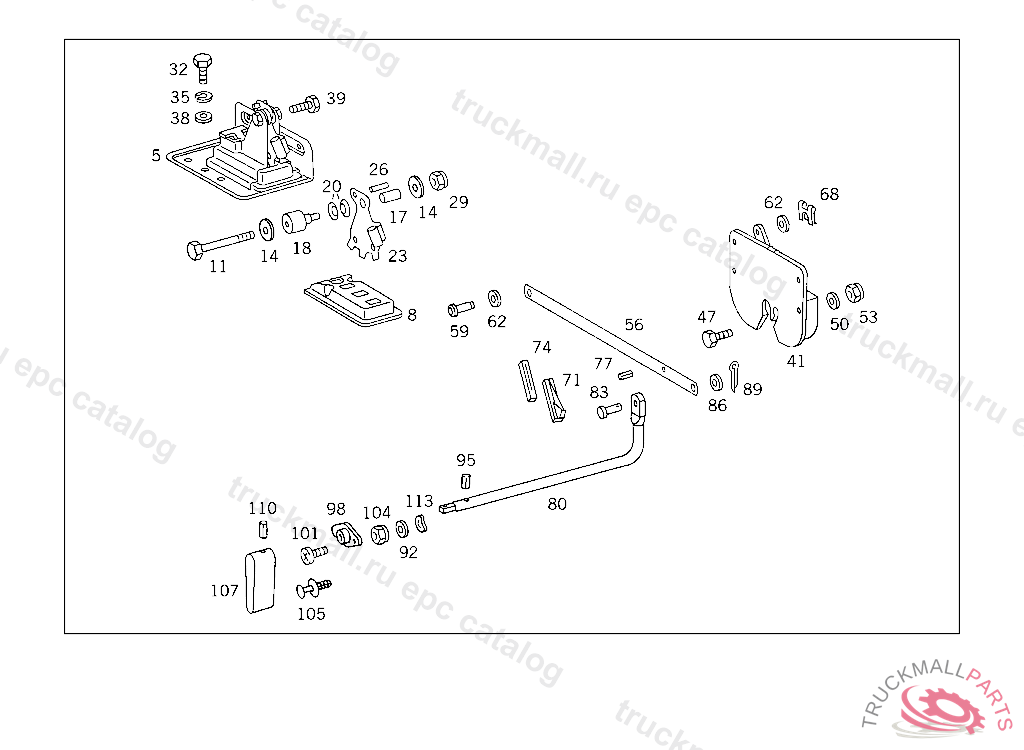

Поз.
Артикул
Описание
41
FASTENER , Replaced By: A0008902389
41
FASTENER , Replaced By: A0008902389
41
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
47
SCREW CENTRAL LOCK TO CAB M 10X16
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
WASHER , Replaced By: N000125010532
50
WASHER RADIATOR TO RUBBER MOUNTING
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
56
ROD CAB LOCKING MECHANISM, TO BE ADAPTED DURING ASSEMBLY
59
PIN PULL TO FASTENER
62
WASHER BRACKET TO CROSS MEMBER
68
LOCK , Replaced By: N912002008003
68
LOCK PULL TO FASTENER
71
BRACKET ROD THRU CAB
74
SEAL ROD THRU CAB
77
CLAMPING SLEEVE ROD TO BRACKET
80
LEVER CAB LOCKING MECHANISM,5 287191
83
PIN LEVER TO ROD
86
WASHER BRACKET TO CROSS MEMBER
89
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
89
COTTER PIN LEVER TO ROD
92
WASHER , Replaced By: N000125015019
92
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
95
CLAMPING SLEEVE , Replaced By: N001481005039
95
CLAMPING SLEEVE LEVER MOUNTING
98
BUSHING LEVER TO CAB
105
RIVET BUSHING AND LEVER TO CAB
107
HANDLE CAB LOCKING MECHANISM
110
CLAMPING SLEEVE , Replaced By: N001481005039
110
CLAMPING SLEEVE LEVER MOUNTING
113
SPRING WASHER LEVER MOUNTING
