Поз.
Артикул
Описание

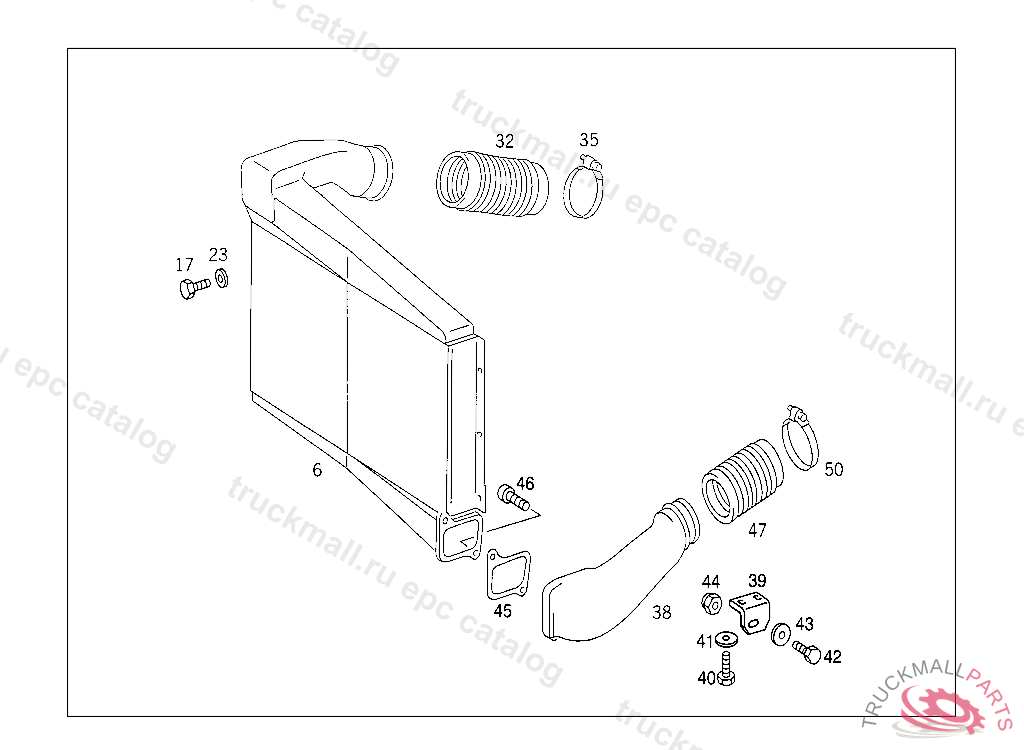

6
RADIATOR (CHARGING AIR INTERCOOLER)
17
SCREW , Replaced By: N304017006020
17
SCREW LICENSE PLATE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
23
WASHER COMPRESSED AIR LINE TO BRACKET
32
HOSE , Replaced By: A0020945282
32
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
32
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
35
CLAMP , Replaced By: A0059970690
35
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
35
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
38
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
38
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
38
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
39
BRACKET PIPE BEND TO RADIATOR
40
SCREW COVER PLATE TO COVER PLATE M 6 X 12
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
42
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
43
WASHER EXHAUST MUFFLER TO STRAP
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
GASKET PIPE TO CHARGING AIR INTERCOOLER
45
GASKET , Replaced By: A6555280080
45
GASKET PIPE ELBOW
46
SCREW BRACKET TO SIDE MEMBER M10X38
46
SCREW PIPE TO CHARGING AIR INTERCOOLER
46
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
46
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
47
HOSE , Replaced By: A0010947982
47
HOSE , Replaced By: A0020945482
47
CHARGE AIR HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
50
CLAMP AIR INTAKE PIPE TO ENGINE "100"
50
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
NUT , Replaced By: N913004008001
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017006018
999
WASHER , Replaced By: N000125008443
