Поз.
Артикул
Описание

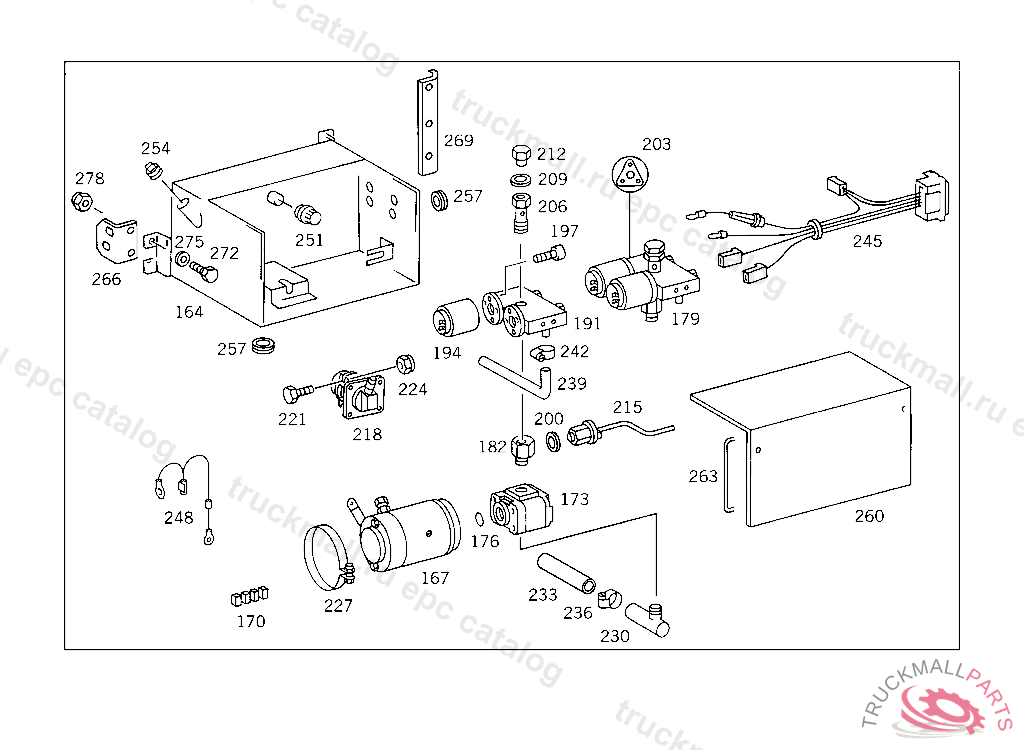

164
HYDRAULIC UNIT
167
MOTORSWE
170
CARBON BRUSH PARTS KIT SWE
173
PUMPSWE
176
SEAL RINGSWE
179
VALVE (CONTROL VALVE)
179
VALVE , Replaced By: A0005505355
182
VALVE (CHECK VALVE) SWE
191
VALVE (CONTROL VALVE)
194
MAGNET
197
SCREW
200
SEAL RINGTO 006 997 00 72
203
SEAL RING PARTS KIT SWE
206
HOLLOW SCREW SOLENOID VALVE
209
SEAL RING SOLENOID VALVE
212
SCREW PLUG
215
SWITCH (PRESSURE SWITCH) 140 BAR
218
CONTACTOR
221
SCREW IN CASE OF SUBSEQUENT INSTALLATION
224
NUT TWO-WAY VALVE TO BRACKET
227
BRACKET ENGINE
230
LINE OIL TANK SWE
233
HOSE
236
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
236
CLAMP , Replaced By: N000000000667
239
HOSE FROM OIL TANK TO SOLENOID VALVE
242
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
242
CLAMP , Replaced By: N916017011001
245
CABLE HARNESS ELECTRIC
248
CONTROL UNIT THERMAL SWE
251
FILTER HOUSING OIL TANK
254
SCREW PLUG OIL TANK
257
GROMMET OIL TANK
260
COVER SWITCH BOX
263
GASKET COVER TO SWITCH BOX
266
BRACKET HYDRAULIC UNIT TO APPARATUS SUPPORT
269
BRACKET HYDRAULIC UNIT TO APPARATUS SUPPORT
272
SCREW BRACKET TO SIDE MEMBER
272
SCREW , Replaced By: N304017010002
272
SCREW END PIECE TO EXHAUST PIPE M 10X25
275
WASHER STRUT TO CROSS MEMBER
275
WASHER , Replaced By: N007349010007
278
NUT STRAP TO BRACKET
278
NUT , Replaced By: N910113010000
999
BRACKET , Replaced By: A3464296040
999
BRACKET , Replaced By: A6454310740
999
AXLE SUSPENSION , Replaced By: A0003910027, +001A0003900638
999
BRACKET , Replaced By: A4354922941
999
VALVE , Replaced By: A0005504355
999
SCREW , Replaced By: A0019976130
