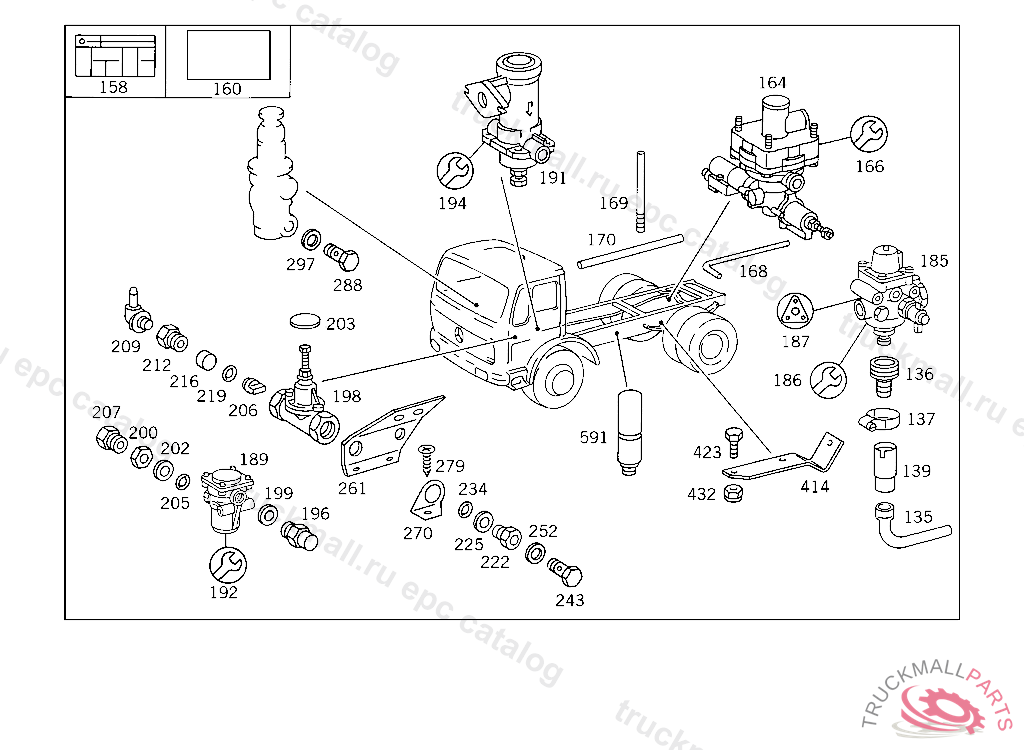

Поз.
Артикул
Описание
135
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
136
FITTING PRESSURE REGULATOR,CONNECTION: "30"
137
CLAMP PRESSURE REGULATOR
139
MUFFLER PRESSURE REGULATOR BREATHING
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE,5 359429
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE,K 067951
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE,5 359430
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE,K 067950
158
GUIDE SIGN
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
158
GUIDE SIGN LOAD-DEPENDING BRAKE
160
ADHESIVE FOIL GUIDE SIGN
164
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
164
BRAKE PRESSURE REGULATORWABCO
164
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
164
BRAKE PRESSURE REGULATOR , Replaced By: A0014318412, +004A0009902082
166
REPAIR KIT BRAKE POWER REGULATOR
166
REPAIR KIT BRAKE POWER REGULATOR WABCO
166
REPAIR KIT BRAKE POWER REGULATOR
168
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
169
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
170
ROD BRAKE POWER REGULATOR CONTROL
185
PRESSURE REGULATORWABCO
185
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
185
PRESSURE REGULATORKNORR
186
REPAIR KIT PRESSURE REGULATOR WABCO
186
REPAIR KIT DIAPHRAGM PART BOSCH,209
187
REPAIR KIT PRESSURE REGULATOR KNORR
187
REPAIR KIT SEAL RING BOSCH,209
189
VALVE (PRESSURE LIMIT VALVE)
191
VALVE (PRESSURE LIMIT VALVE)
191
VALVE (PRESSURE LIMIT VALVE)
192
REPAIR KIT PRESSURE LIMIT VALVE
194
REPAIR KIT , Replaced By: A0004205455
194
REPAIR KIT , Replaced By: A0024292844
194
VALVE REPAIR KIT
196
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
198
VALVE (OVERFLOW VALVE)
199
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
200
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
202
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
203
DIAPHRAGM
205
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
206
VALVE
207
SCREW. UNION SCREW LINE CONNECTION
209
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
212
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
212
BREATHER , Replaced By: A3933280065
216
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
216
THRUST RING CHECK VALVE TO AIR RESERVOIR
219
O-RING CHECK VALVE TO AIR RESERVOIR
222
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
225
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
225
THRUST RING CHECK VALVE TO AIR RESERVOIR
234
O-RING CHECK VALVE TO AIR RESERVOIR
243
HOLLOW SCREW HEATING CONNECTION
252
SEAL RING LINE CONNECTION
261
BRACKET OVERFLOW VALVE
270
BRACKET OVERFLOW VALVE,CONNECTION: "20"
270
BRACKET OVERFLOW VALVE,CONNECTION: "10"
279
SHEET METAL SCREW BRACKET TO CAB FLOOR
288
HOLLOW SCREW LINE CONNECTION
297
SEAL RING LINE CONNECTION
414
BRACKET TRAILER CONTROL VALVE,5 317649
414
BRACKET TRAILER CONTROL VALVE,5 317649
423
SCREW PIPE CLAMP
423
SCREW BRACKET TO CROSS CONNECTION STRUT
423
SCREW , Replaced By: N304017008034
423
SCREW , Replaced By: N304017008021
432
NUT , Replaced By: N913004008001
432
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
591
VALVE PRESSURE LIMIT,K 025180
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 359430
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE,5 585845
999
LOCK FRONT AXLE RELAY VALVE
999
GUIDE SIGN
999
BRACKET TRAILER CONTROL VALVE
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
999
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
PLUGTO 008 420 59 18,KNORR
999
RESERVOIR , Replaced By: A0034321201
999
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
999
RESERVOIR , Replaced By: A0034321401
999
CONNECTOR BLEEDING
